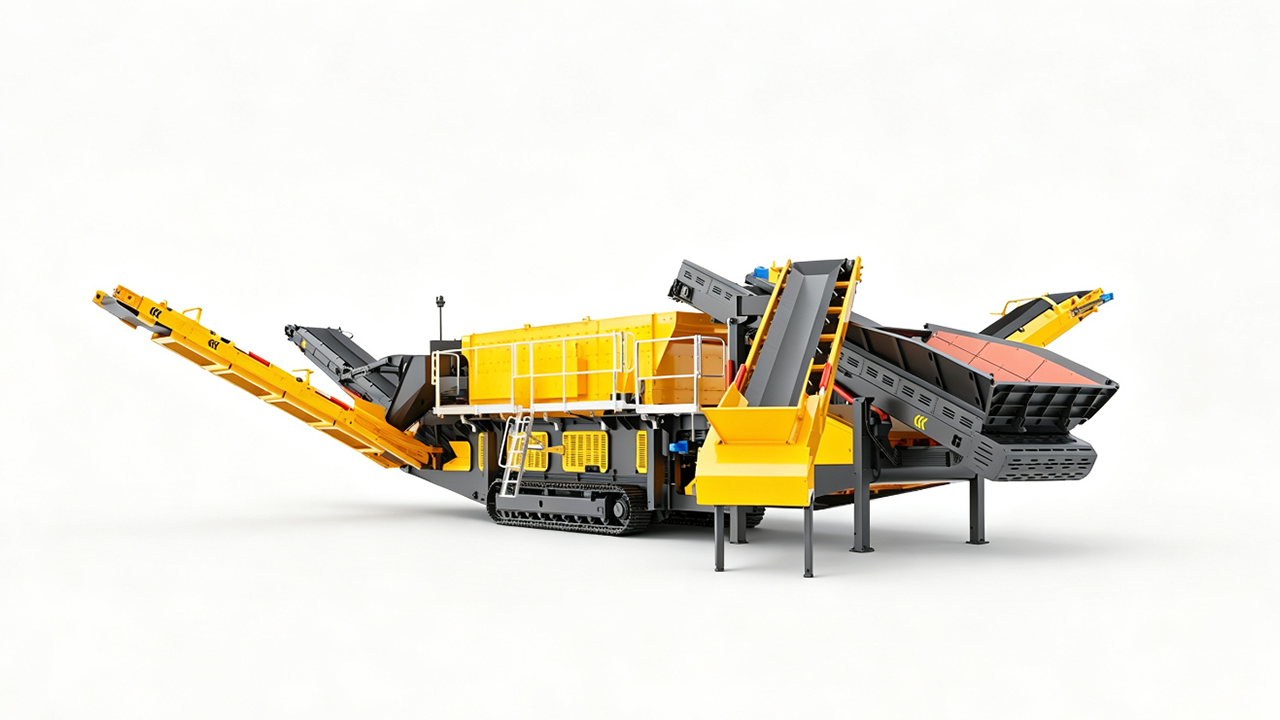

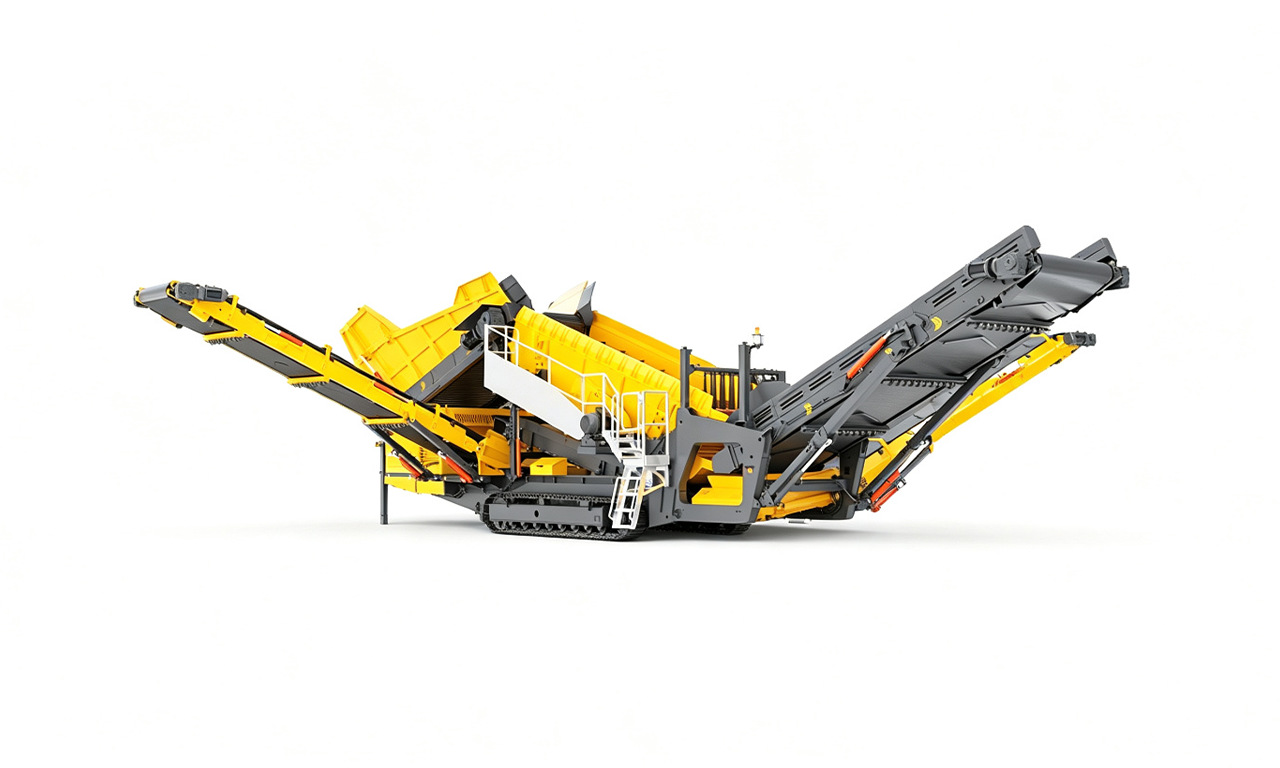

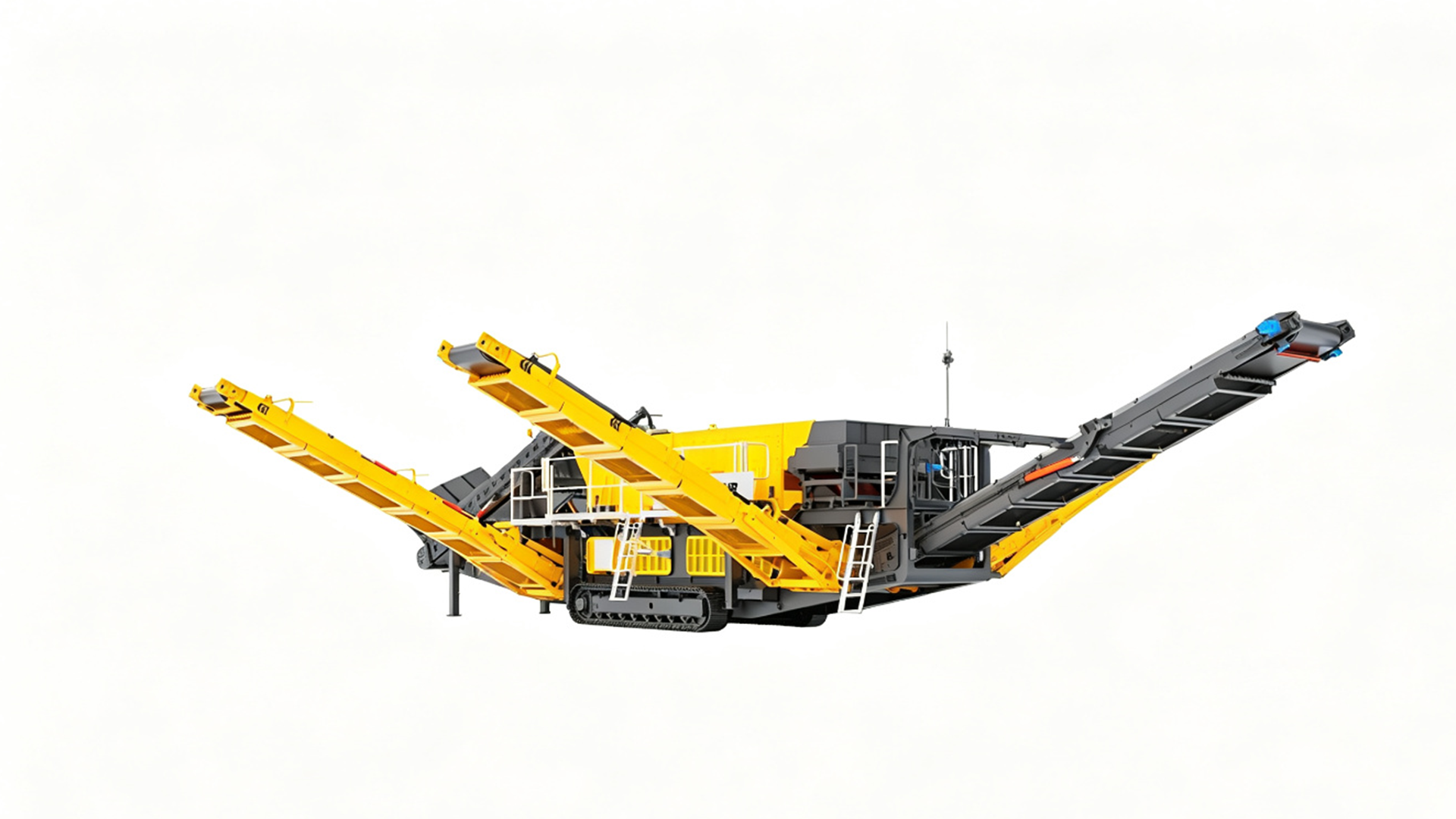

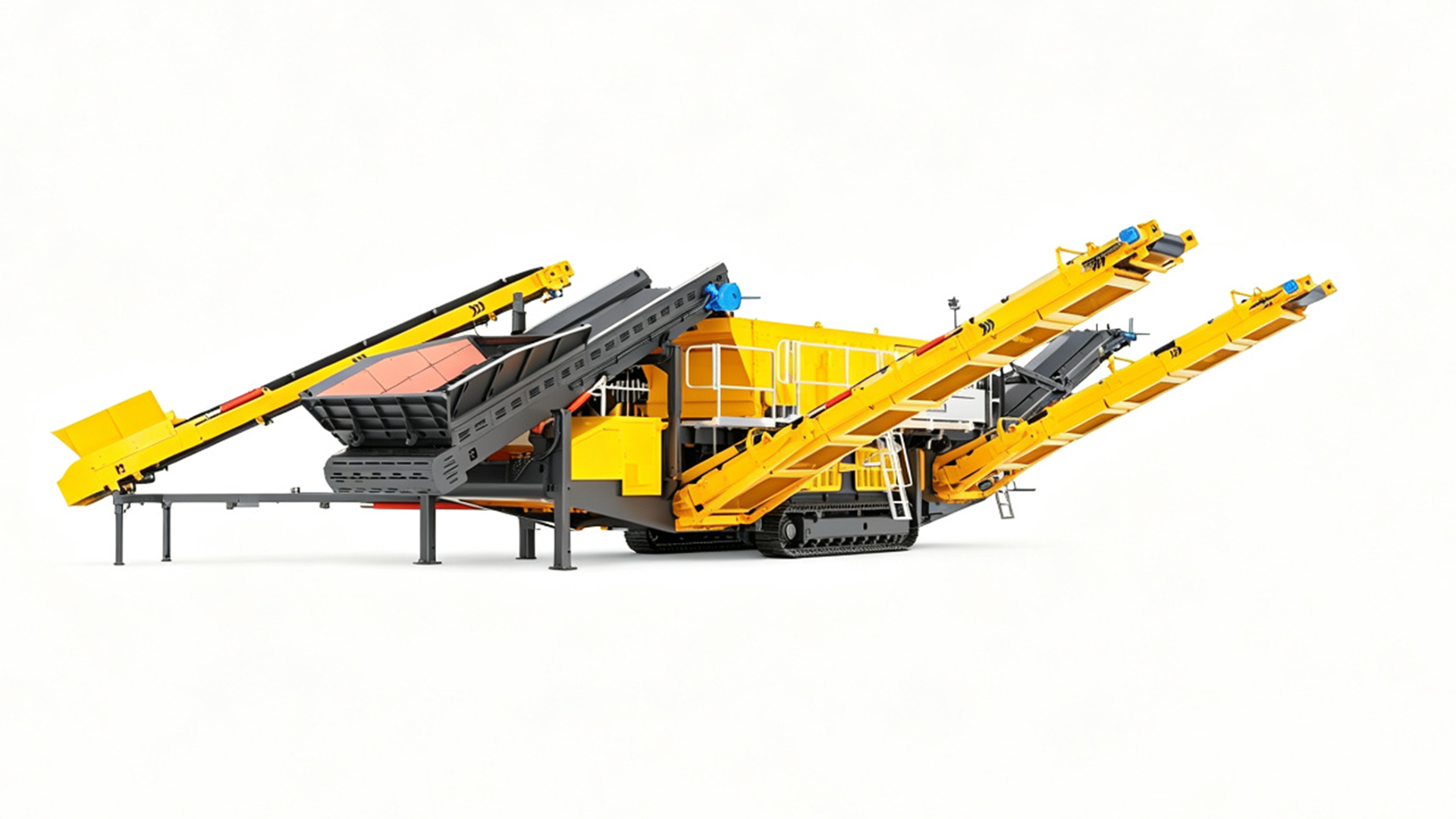

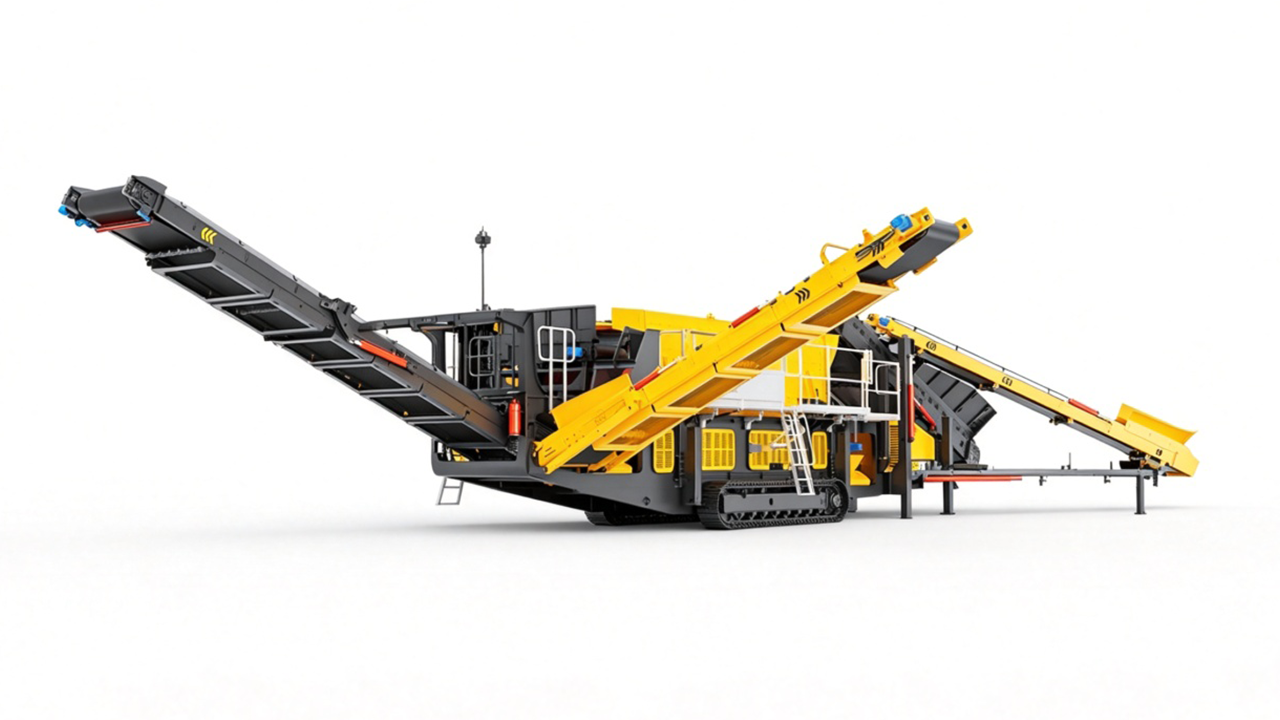

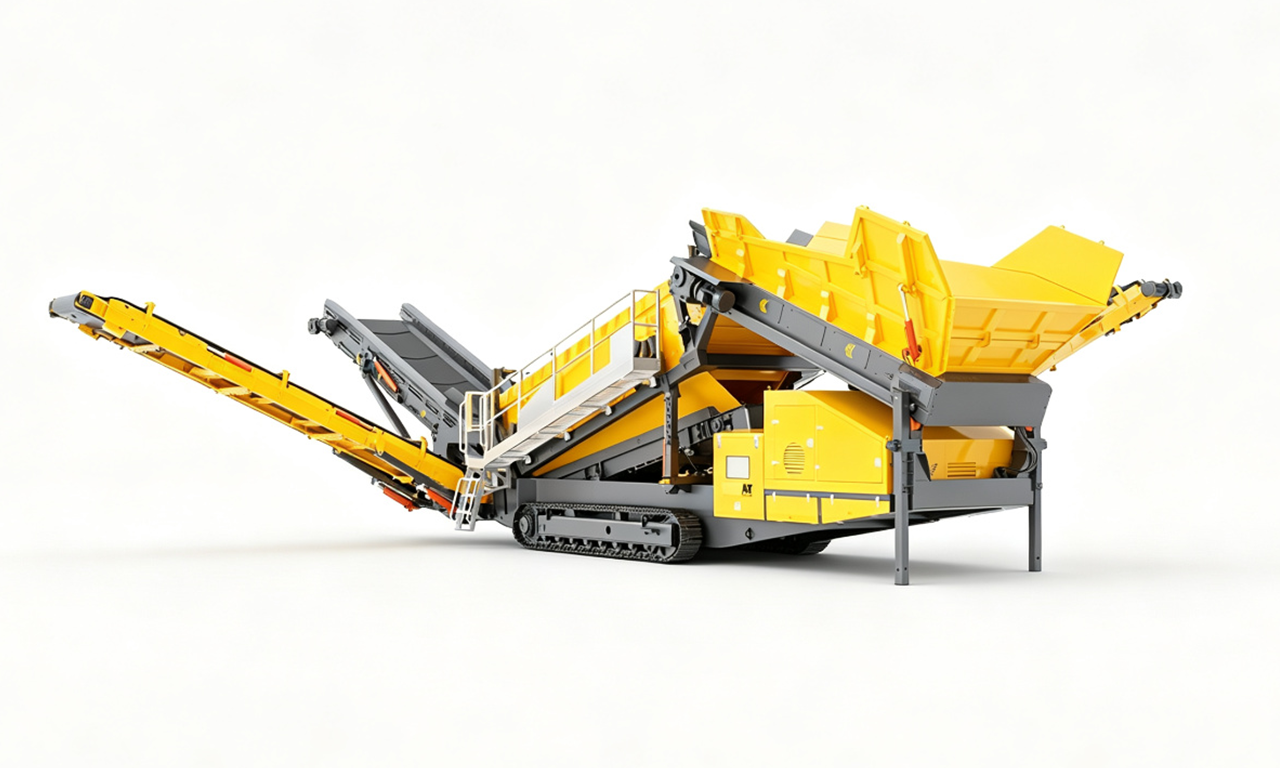

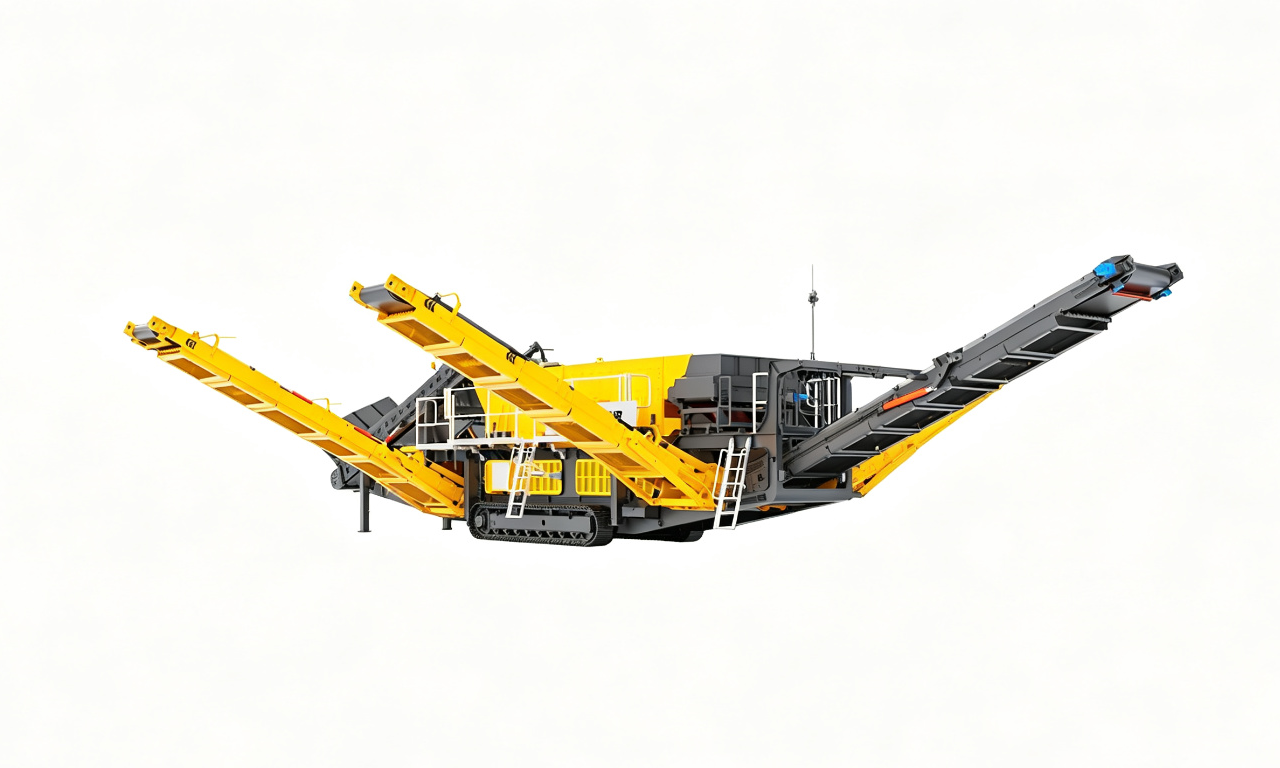

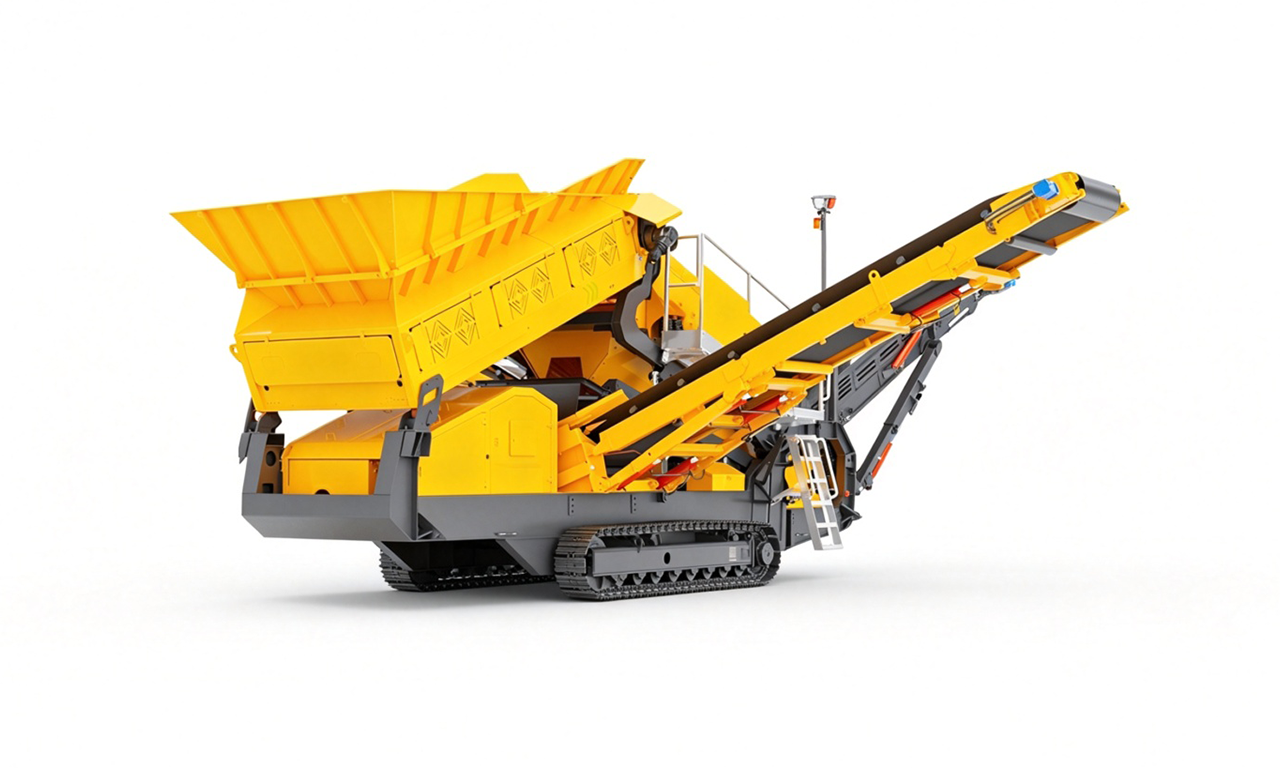

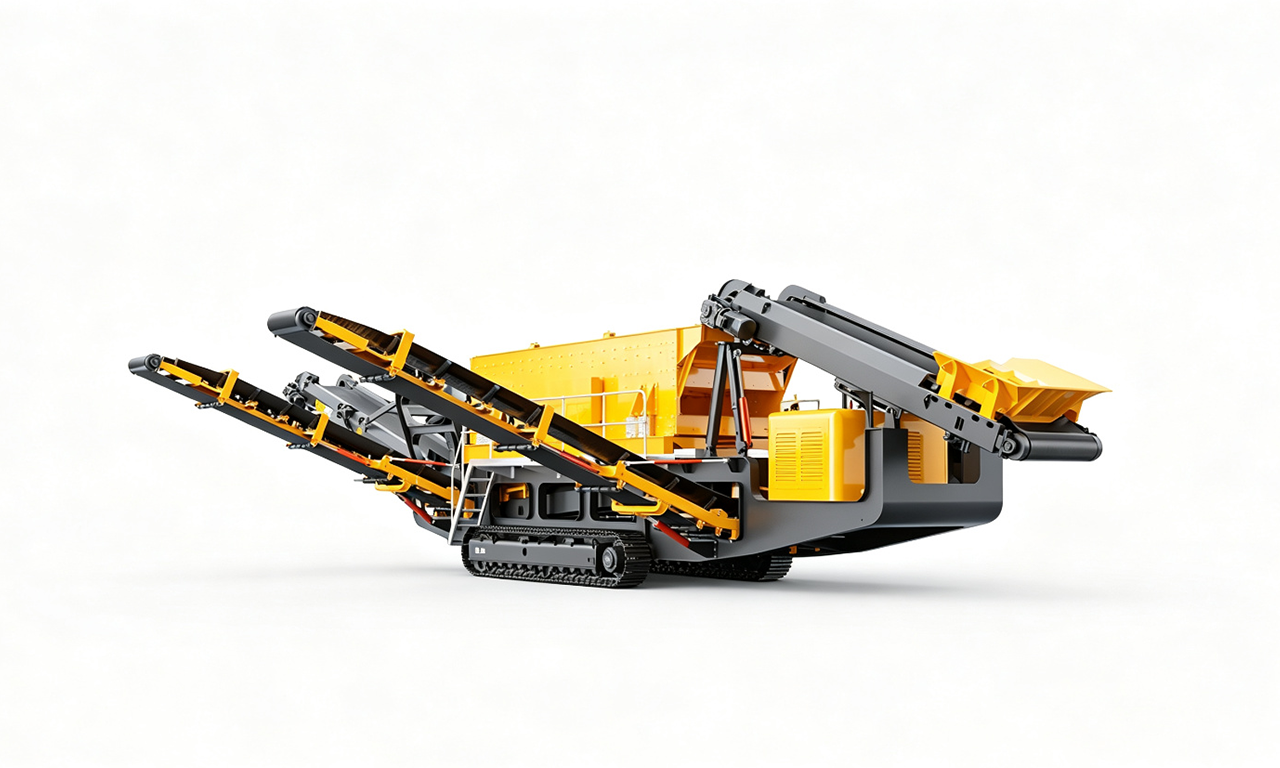

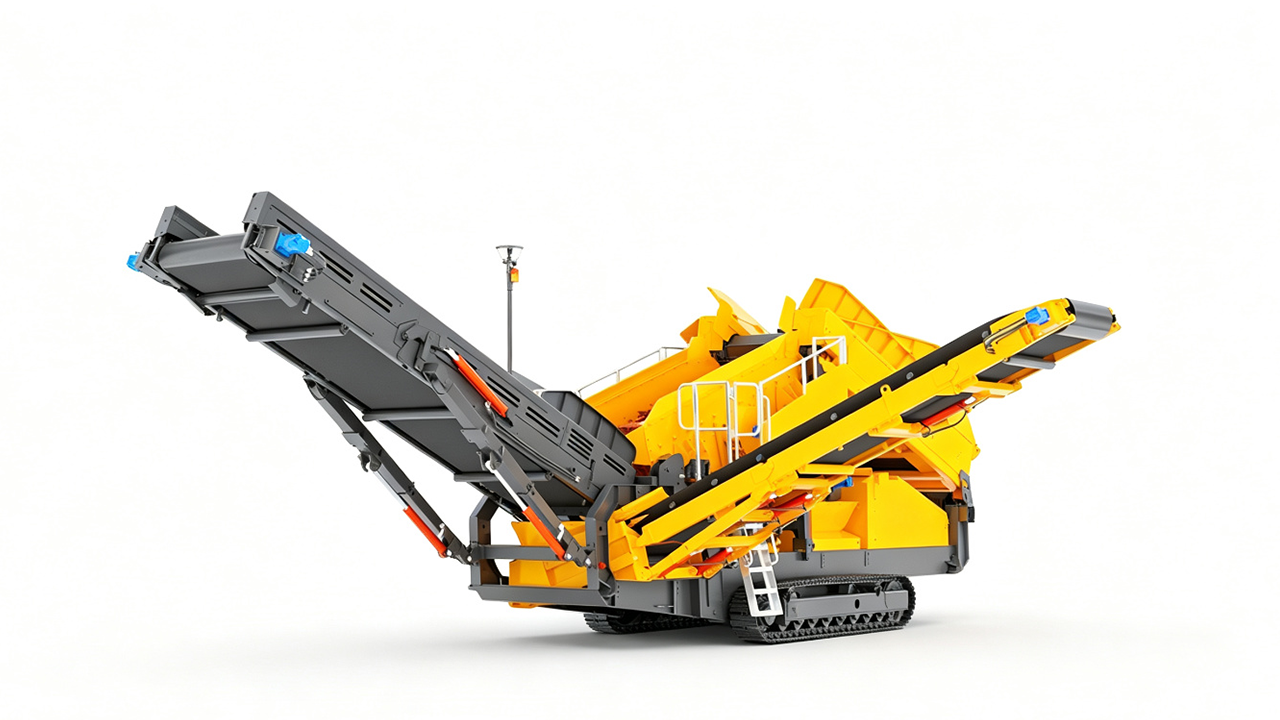

DKTEC Mobile Screening Series is designed to provide efficient and flexible screening solutions for aggregates, mining, quarrying, construction and recycling applications. Combining a robust mobile chassis with a high-performance screening unit, the series enables efficient separation and classification of different-sized materials while maintaining stable performance in demanding working conditions.
With flexible configuration options and multi-deck screening capabilities, DKTEC Mobile Screens can be adapted to different material types and production requirements. The mobile design allows the equipment to be transported and relocated between sites with ease, reducing setup time and improving overall project flexibility.
DKTEC Mobile Screening Series can operate as an independent screening unit or be integrated with mobile jaw, cone and impact crushers to form a complete mobile crushing and screening plant. Its reliable structure, efficient screening performance and convenient maintenance make it a practical solution for producing consistent, high-quality aggregates and recycled materials.
Suitable for: coarse pre-screening, fine aggregates, and wet, sticky materials.
Widely used for preliminary screening of raw materials with high mud and soil content prior to crushing, as well as for the screening and processing of construction waste, river pebbles, Gobi sand, coal, topsoil, and finished aggregates.
Efficient Screening: DKTEC Mobile Screens are designed for efficient separation and classification of a wide range of materials, delivering consistent screening performance and high-quality final products.
Wide Application: Suitable for screening aggregates, crushed stone, sand, gravel, construction and demolition waste, recycled materials and other bulk materials.
Flexible & Mobile: The mobile configuration allows the screening plant to be transported and relocated easily between different sites, making it an ideal solution for contractors and projects requiring frequent site changes.
High Screening Efficiency: The optimized screening unit provides effective material separation and high screening capacity, helping improve overall plant productivity and product quality.
Quick Setup: Designed for fast deployment with reduced installation requirements, the mobile screen can be brought into operation quickly after arriving at the working site.
Robust & Reliable: A heavy-duty chassis and durable screening components are designed to withstand demanding working conditions and provide stable performance over long operating periods.
Easy Maintenance: The practical layout provides convenient access to key components and wear parts, simplifying routine inspection, cleaning and maintenance while reducing downtime.
Flexible Integration: DKTEC Mobile Screens can be used as independent screening units or integrated with mobile crushers to create a complete mobile crushing and screening solution.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
| Model | DKS-683 | DKS-1083 | DKS-1303 | DKSH-6203 |
| Feeding Equipment | ||||
| Feeding Capability [t/h] | 250 | 450 | 450 | 600 |
| Bucket Capacity [m³] | 2.5 | 3 | 3 | 3 |
| Feeding Belt | ||||
| Length × Width [mm] | 9000×1000 | 11200×1000 | 11500×1000 | 6000×1200 |
| Feeding Height [mm] | 2500 | 2700 | 2500 | 3000 |
| Power [kW] | 7.5 | 11 | 11 | 11 |
| Screening Machine | ||||
| Size [mm] | 4500×1500 | 6000×1800 | 6500×2000 | 6100×1930 |
| Screen Cloth Number | 3 | 3 | 3 | 3 |
| Power [kW] | 15 | 22 | 22 | 30 |
| Layer A Belt | ||||
| Length × Width [mm] | 6000×500 | 8000×650 | 8000×650 | 7200×800 |
| Discharge Height [mm] | 3000 | 3200 | 3200 | 3200 |
| Power [kW] | 4 | 4 | 4 | 5.5 |
| Layer B Belt | ||||
| Length × Width [mm] | 6000×500 | 8000×650 | 8000×650 | 7000×1000 |
| Discharge Height [mm] | 3100 | 3200 | 3200 | 3400 |
| Power [kW] | 4 | 4 | 4 | 7.5 |
| Layer C Belt | ||||
| Length × Width [mm] | - | 6000×650 | 6000×650 | 7100×800 |
| Discharge Height [mm] | - | 3100 | 3100 | 3200 |
| Power [kW] | - | 4 | 4 | 5.5 |
| Layer D Belt | ||||
| Length × Width [mm] | 8000×800 | 8500×800 | 8500×1000 | 7100×800 |
| Discharge Height [mm] | 3200 | 3970 | 3760 | 3250 |
| Power [kW] | 5.5 | 5.5 | 7.5 | 5.5 |
| Layer E Belt | ||||
| Length × Width [mm] | 2000×600 | 2250×650 | 2250×650 | 6200×1200 |
| Power [kW] | 3 | 3 | 3 | 7.5 |
| Overall Unit | ||||
| Walking Engine Power [kW] | 76 | 76 | 76 | 86 |
| Total Weight [t] | 20 | 30 | 31 | 37 |
| Processing Capacity [t/h] | 80-180 | 120-350 | 180-450 | 350-500 |
| Transportation Dimension [m] | 11.9×3.5×3.6 | 13.9×3.6×3.8 | 13.9×3.6×3.8 | 19.5×3.5×3.8 |
| Total Power [kW] | 39 | 53.5 | 55.5 | 72.5 |
*Capacity figures shown apply to material weighing 1.6 tons per cubic meter, or 100 pounds per cubic foot. Performance may vary depending on the feed gradation, feed moisture content, crushability of the material, rpm, installed power and the circuit design. Please consult DKTEC for specific applications.
