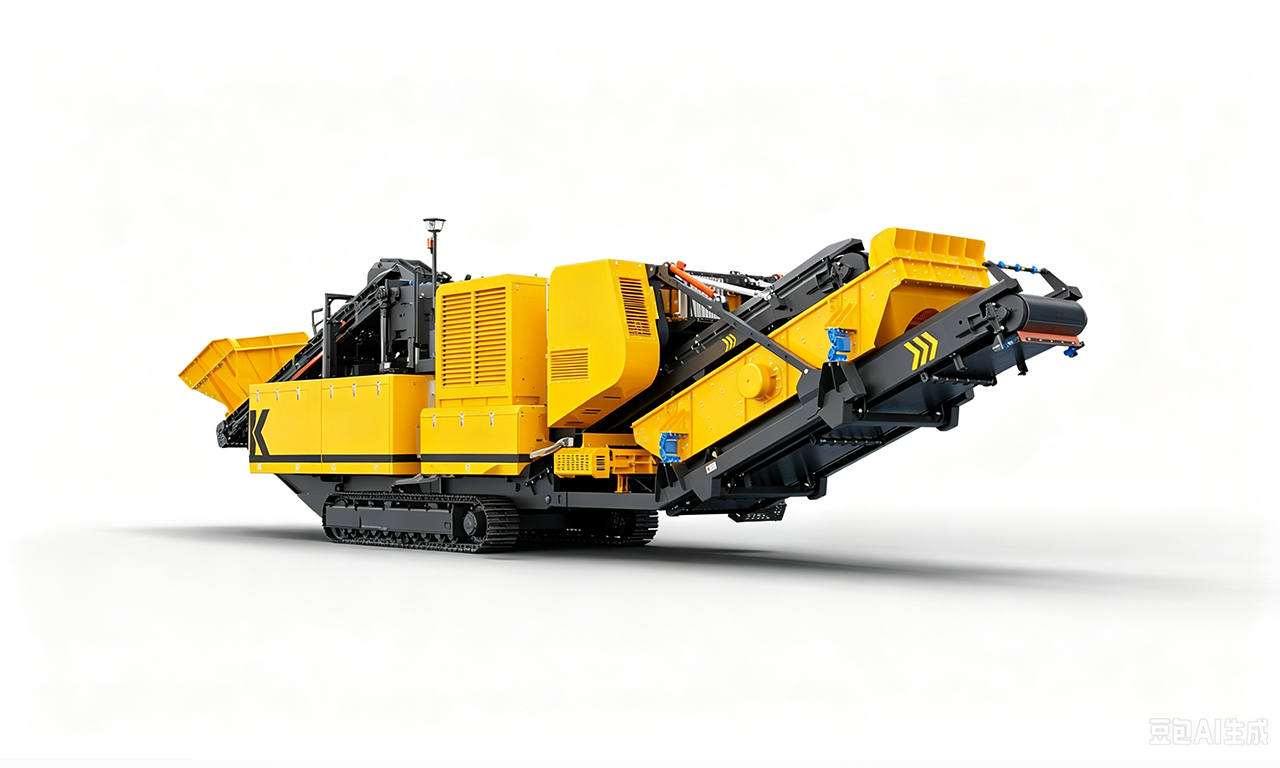

Mobile Cone Crushers

Mobile Cone Crushers are complete integrated wheeled processing units, featuring high production Cone Crushers and high capacity 2,3 or 4 deck DKTEC screens. The material can be fed by separate conveyor belt from the primary crusher or through a separate feed hopper either to the crusher or screen. Combined with the large vibrating screen for efficient and accurate screening, these units have proven to be the ideal solution for aggregates production and recycling at a low cost per tonne.

Quick Quote

Applications

DKTEC mobile cone crushers are ideal for applications involving hard and abrasive materials such as granite, basalt, quartzite and other high-strength rocks. They are widely used for the production of high-quality aggregates, manufactured sand, industrial minerals and recycled materials, as well as in quarrying, mining and infrastructure projects. With excellent crushing performance and a highly mobile crawler-mounted design, they are particularly suitable for projects where the crushing plant needs to be relocated between different working sites, providing a flexible and efficient solution for multi-stage crushing and screening operations.

Why DKTEC Mobile Cone Crushers?

High Crushing Performance Engineered for demanding applications, DKTEC mobile cone crushers deliver high crushing efficiency and consistent performance when processing hard and abrasive materials.

Excellent Mobility The crawler-mounted design allows the crusher to move easily between working areas and job sites, providing greater flexibility for multi-site and temporary projects.

Reliable & Robust Design Heavy-duty components and a robust chassis are designed for continuous operation in demanding environments, ensuring reliable performance and long service life.

High-Quality End Products Optimized crushing technology helps produce well-shaped, consistent aggregates with precise particle sizes, making the equipment suitable for demanding construction and infrastructure applications.

Easy Operation & Maintenance The practical equipment layout provides convenient access to key components, simplifying routine inspection, maintenance and wear-part replacement while reducing downtime.

Flexible Crushing Solutions DKTEC mobile cone crushers can be combined with mobile jaw crushers, impact crushers, screens and conveyors to create complete crushing and screening solutions tailored to different materials and production requirements.

Mobile Cone Crushers Highlights

Highlight

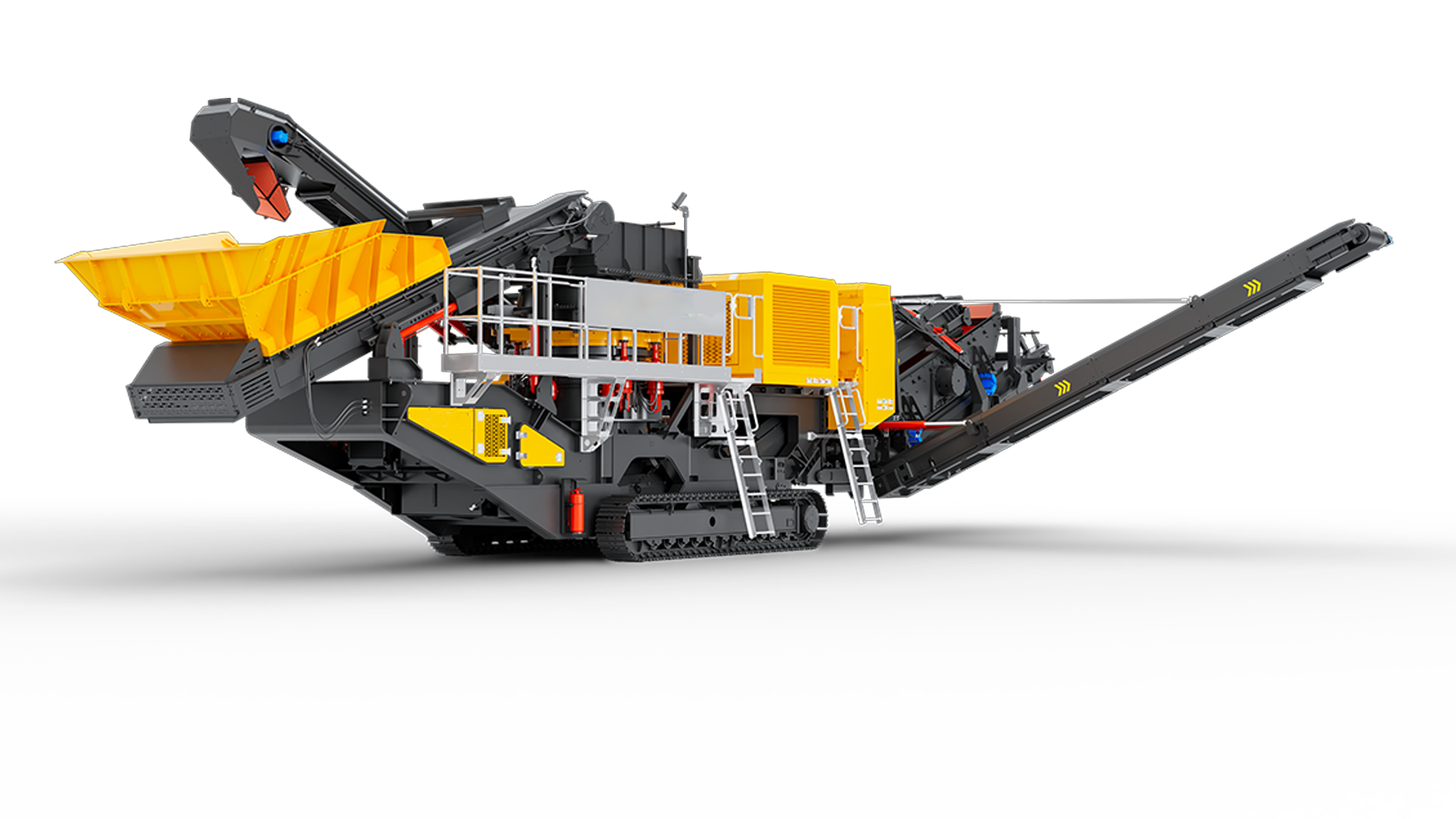

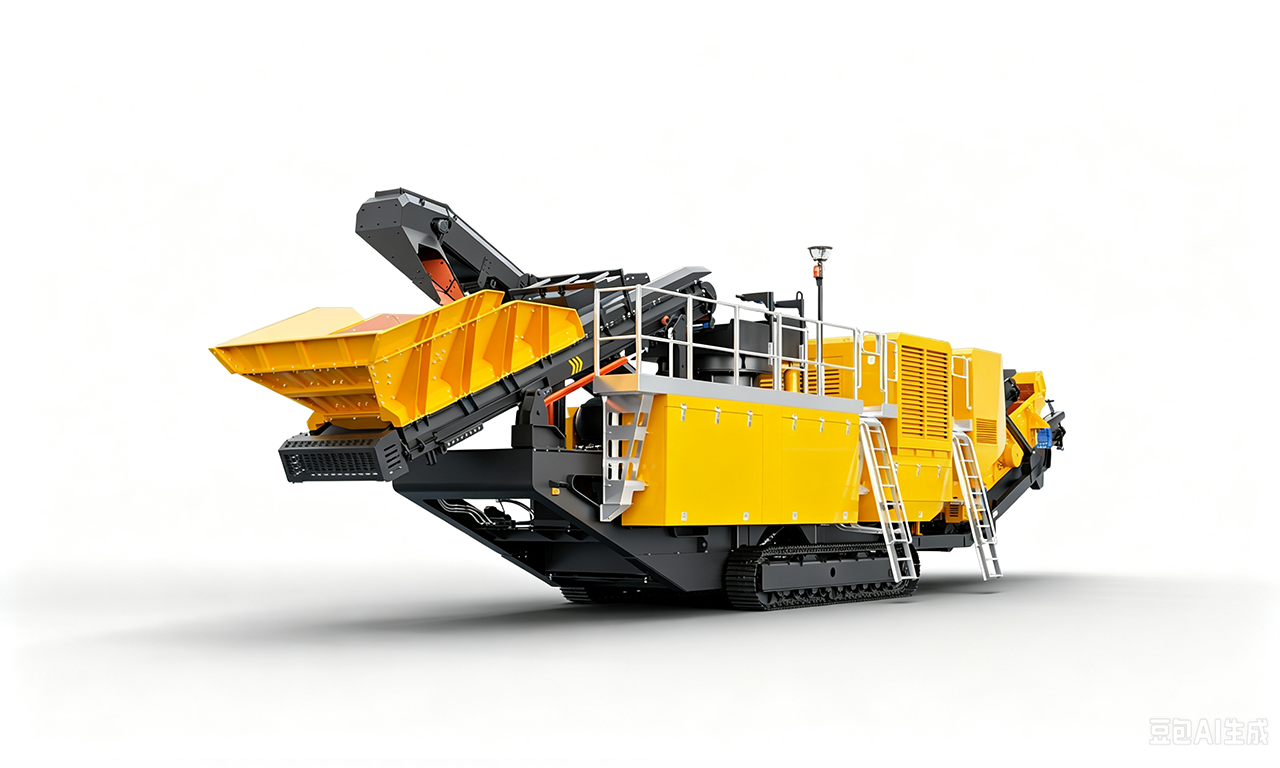

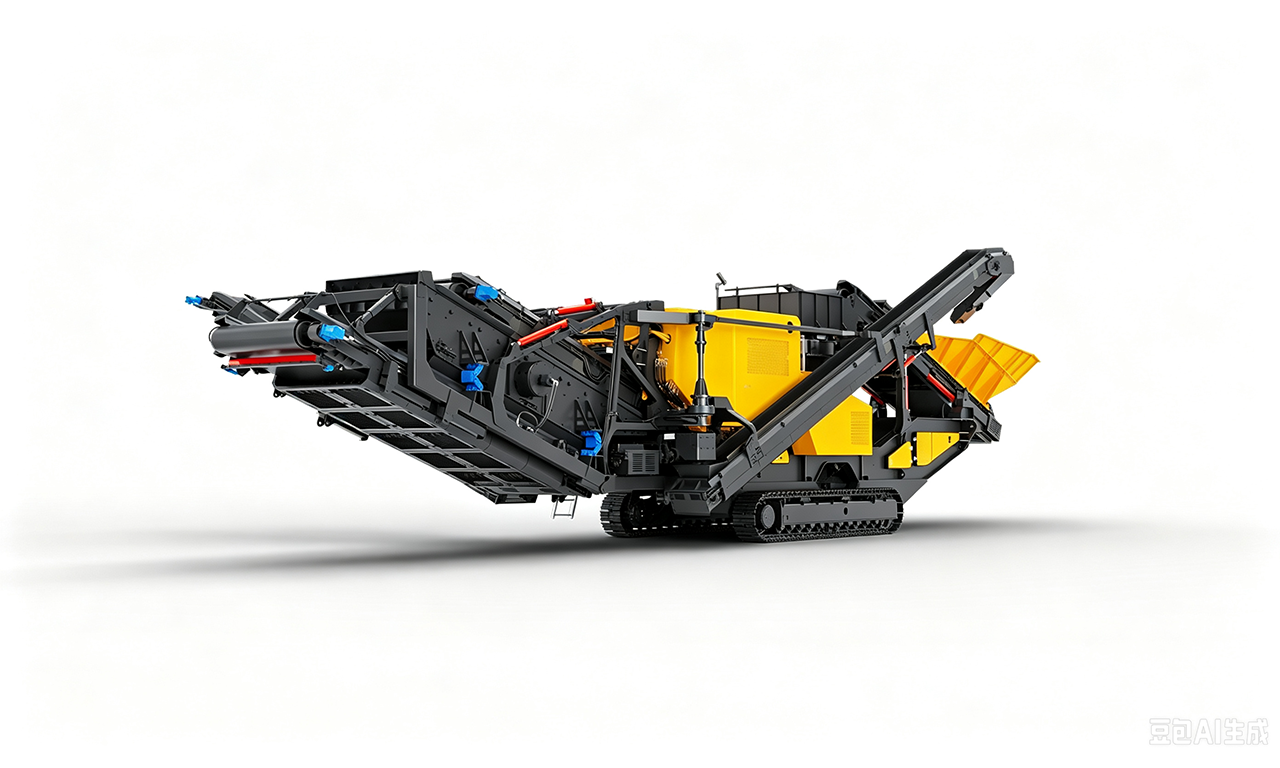

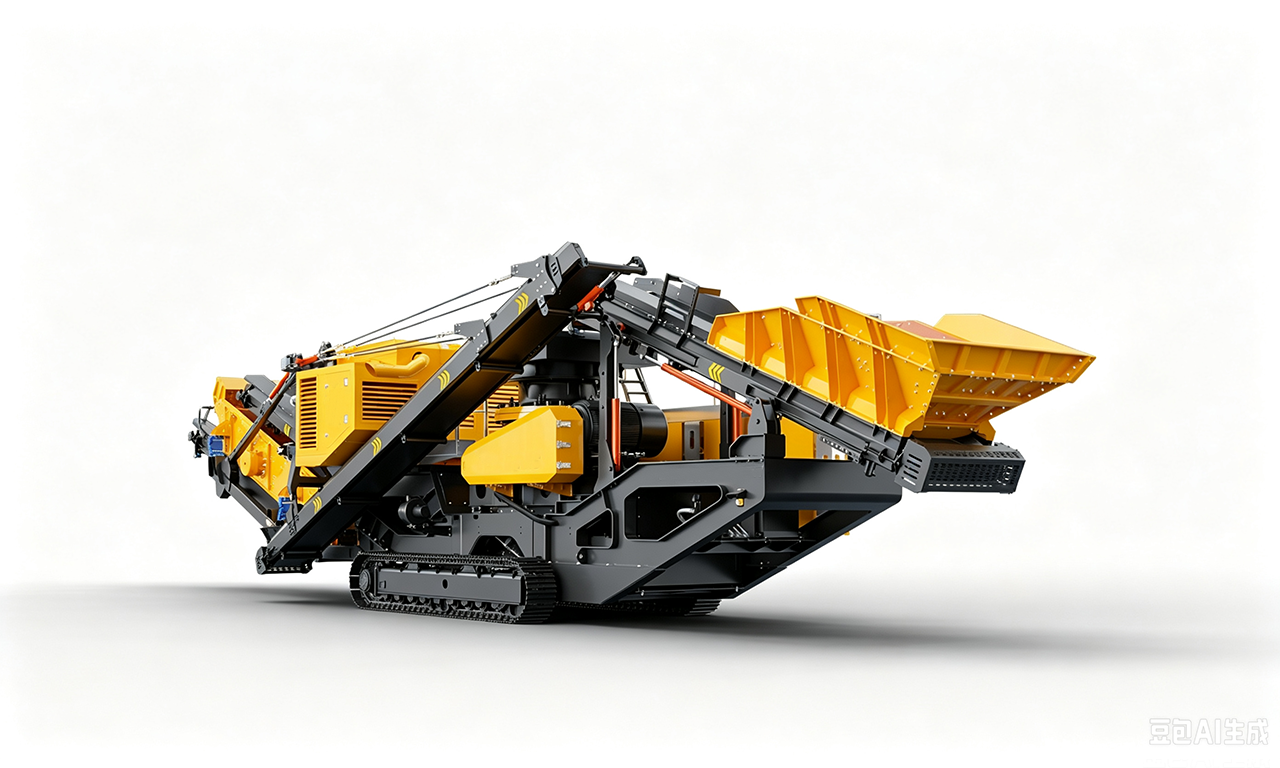

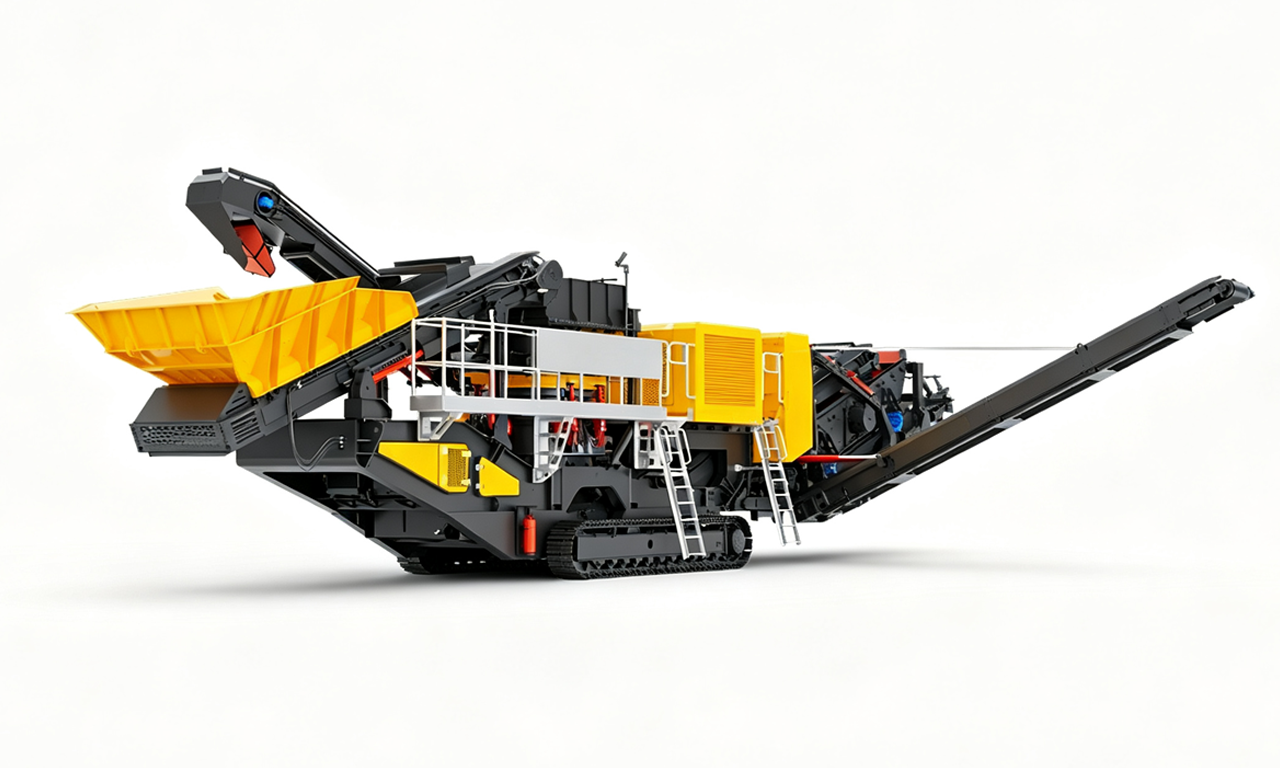

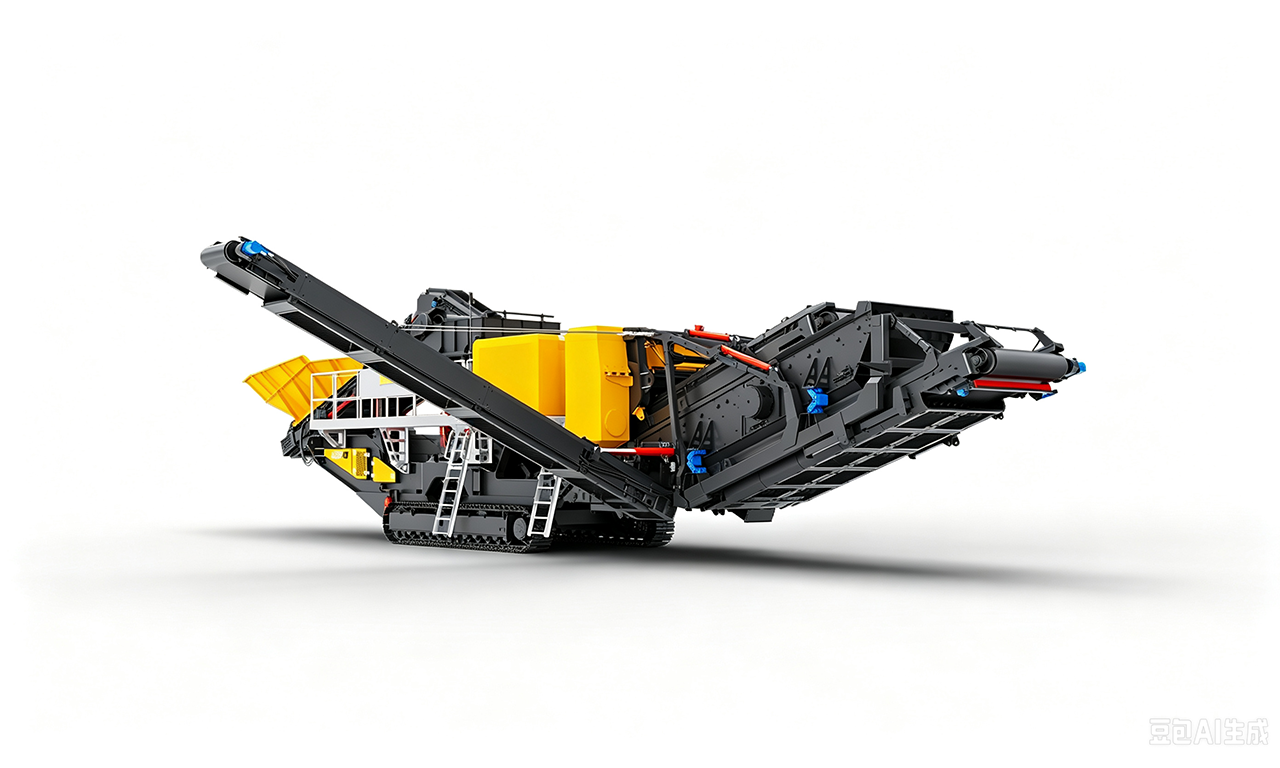

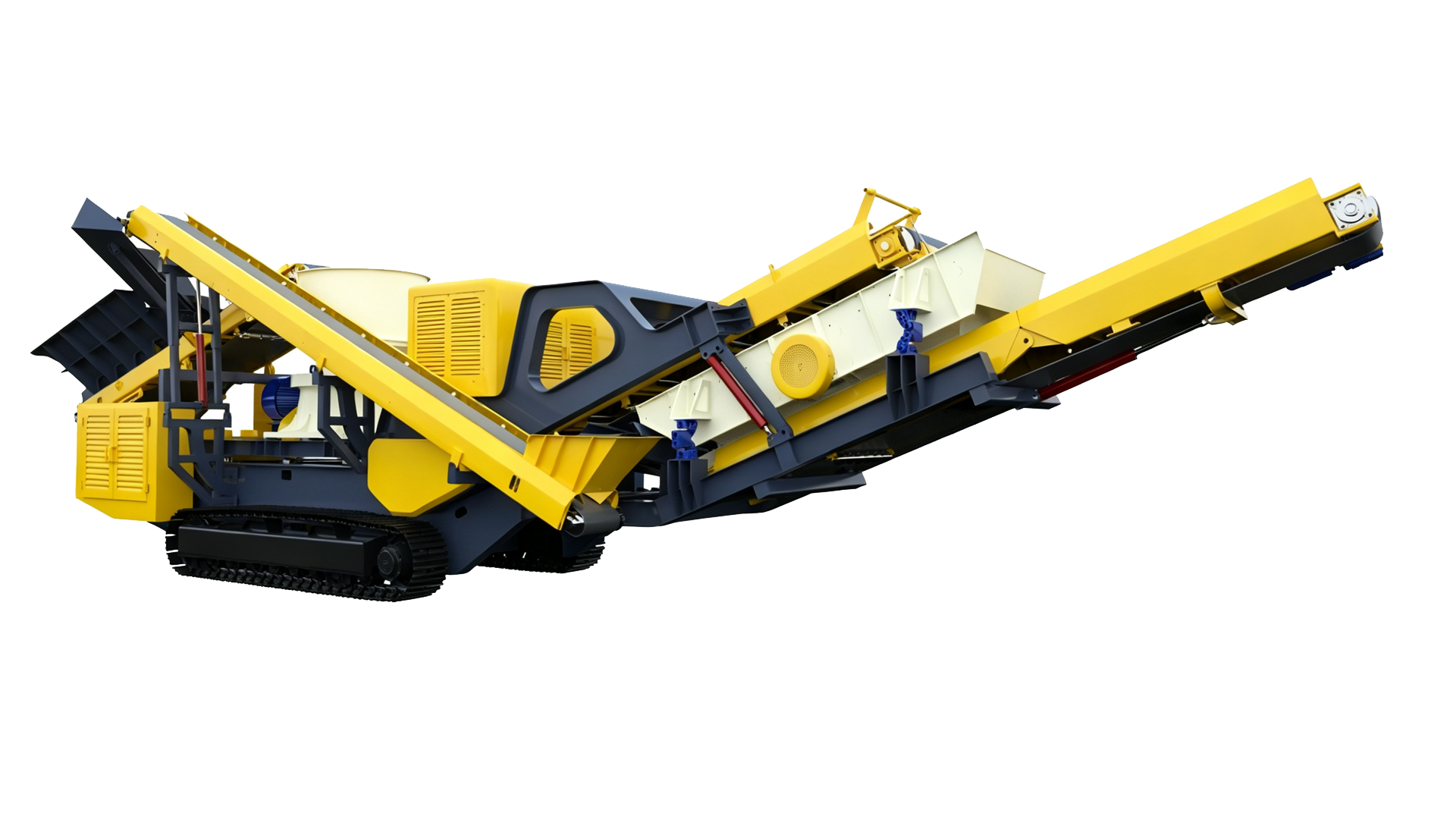

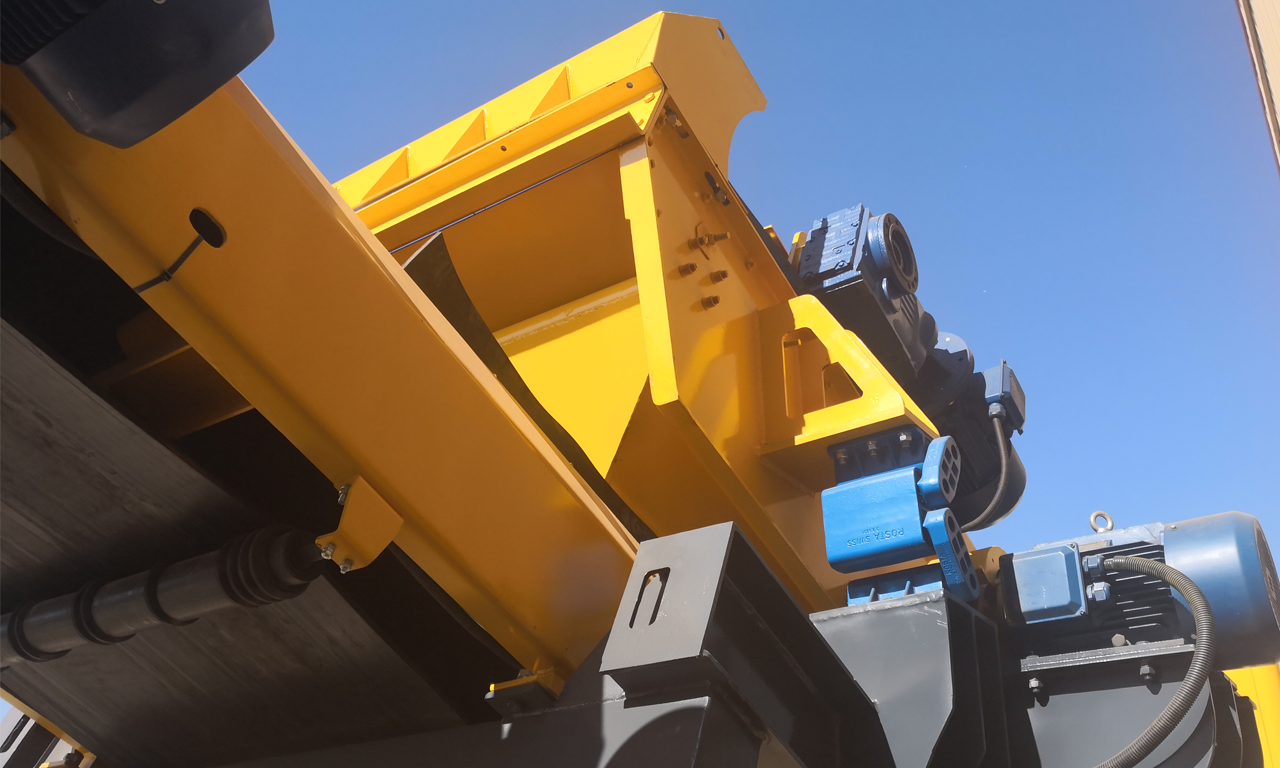

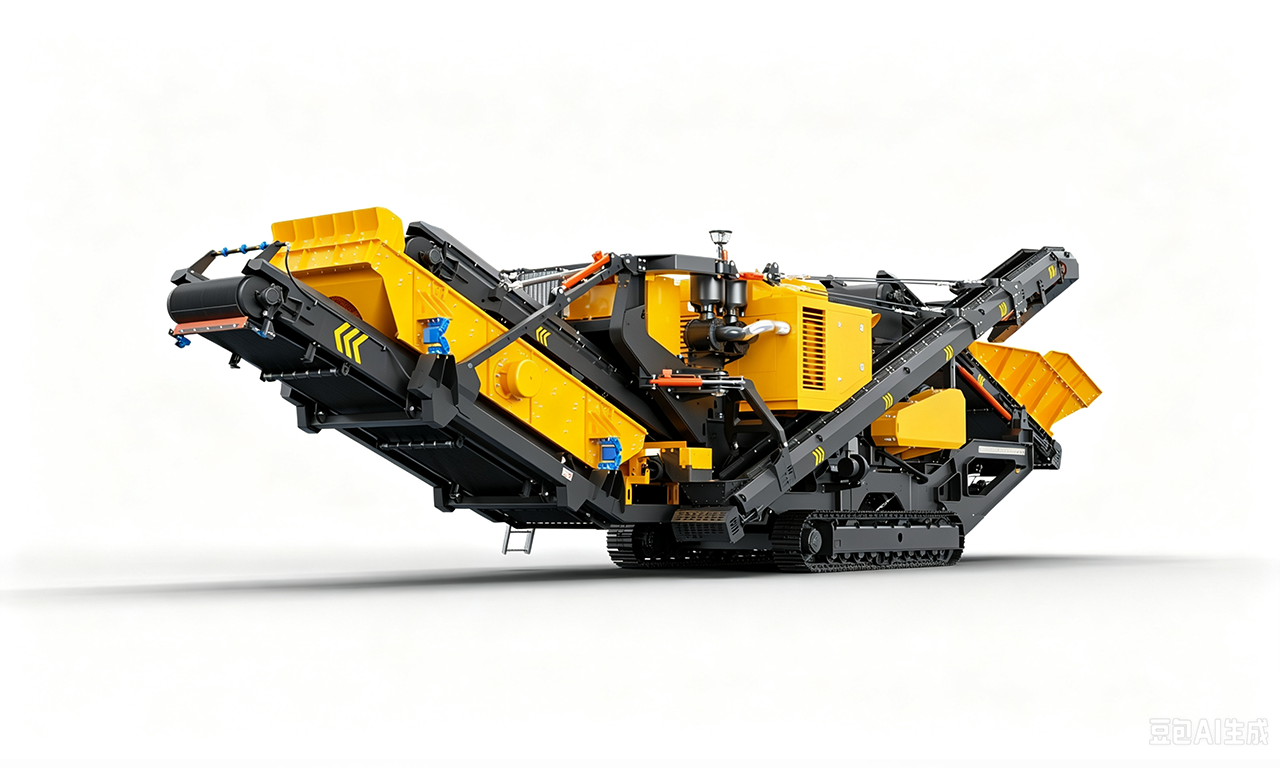

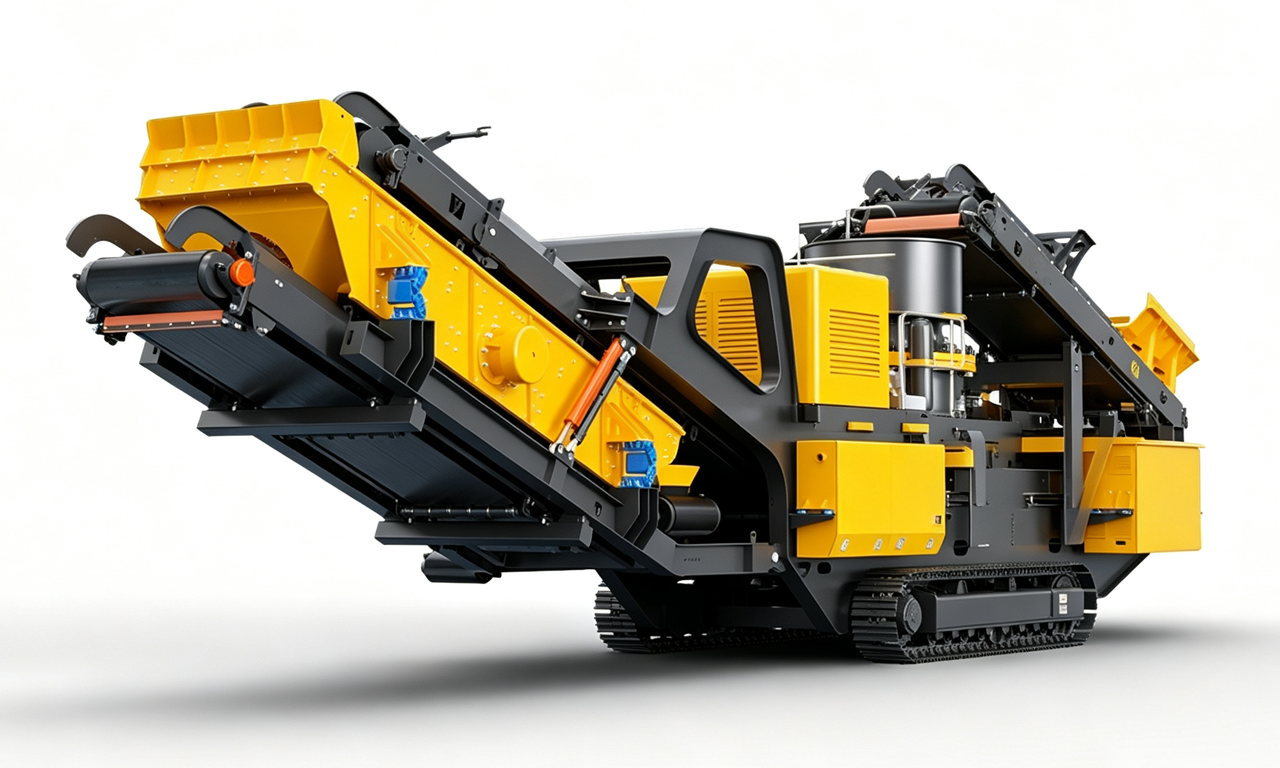

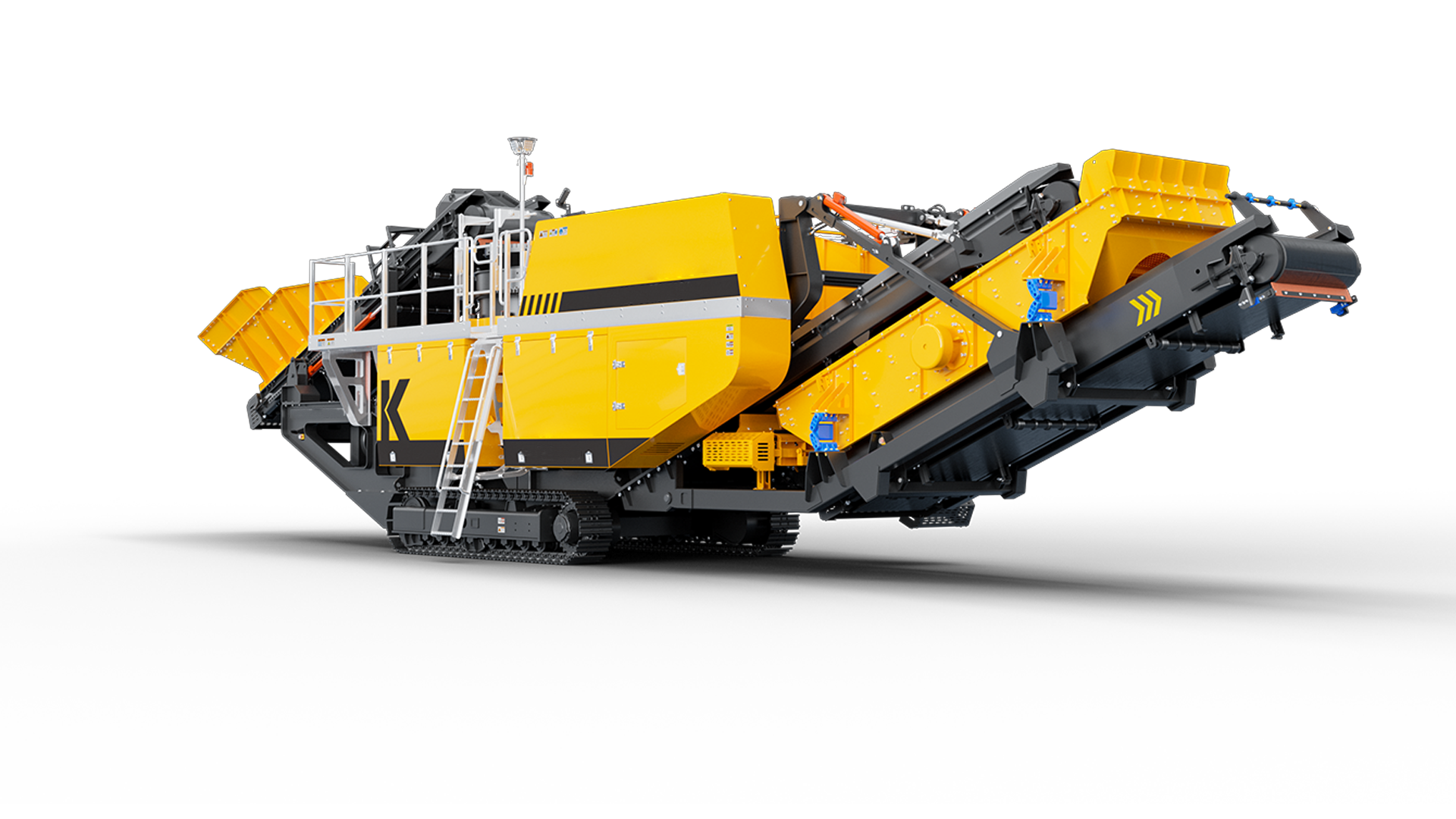

Mobile Cone Crushers Gallery

Mobile Cone Crushers Technical Specifications

Model	DKC-430RS	DKC-440RS	DKC-AGP200RS	DKC-AGP300RS
Feeding Equipment
Feeding Capability [t/h]	300	500	400	400
Bucket Capacity [m³]	4	5.5	3	3
Feeding Belt
Length × Width [mm]	6000×1000	6000×1000	6000×1000	6000×1000
Feeding Height [mm]	3000	3400	2700	2800
Power [kW]	11	11	11	11
Crusher
Cone Crusher Model	CC430	CC440	AGP200	AGP300
Max Feeding Size [mm]	190	215	190	210
Discharged Size Range [mm]	6-38	8-44	6-35	10-45
Crusher Weight [t]	9.3	14.3	9	15.5
Crusher Power [kW]	132	250	132	220
Main Belt
Length × Width [mm]	10000×1000	10000×1000	10000×1000	10000×1000
Discharge Height [mm]	3100	3350	3250	3250
Power [kW]	11	11	11	11
Product Belt
Length × Width [mm]	6500×1000	6000×1000	6000×1000	6000×1000
Discharge Height [mm]	3200	3250	3000	3000
Power [kW]	5	5.5	5.5	5.5
Returning Charge Screening
Length × Width [mm]	3800×1600	3800×1600	3800×1600	3800×1600
Power [kW]	15	15	15	15
Transitional Belt
Length × Width [mm]	2200×500	2250×500	2250×500	2250×500
Power [kW]	3	3	3	3
Returning Charge Belt
Length × Width [mm]	8500×600	8500×600	9000×600	9000×600
Power [kW]	4	4	4	4
Overall Unit
Walking Engine Power [kW]	106	106	106	109
Total Weight [t]	42	48	42	48
Processing Capacity [t/h]	70-180	100-350	100-270	100-380
Transportation Dimension [m]	16.8×3.5×3.7	17.6×3.6×3.8	16.8×3.4×3.8	17.6×3.6×3.8
Total Power [kW]	181	299.5	181.5	269.5

*For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.

**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

What is Portable Cone Crusher?

The Portable Cone Crusher with inclined screen plant is a wheel mounted unit which consist of cone crusher and 2-3-4 decks inclined screen on the same trailer chassis.

Types of Portable Cone Crushers

Portable Cone crusher and screen portable unit is a plant consisting of a sceondary or tertiary type cone crusher and screen on the same trailer chassis.

How Does Portable Cone Crushers Work?

The material on the top deck of the screen is fed to the cone crusher.In some applications, the material can be fed directly to the cone crusher with a belt conveyor.The material entering the crushing chamber is crushed by compressing it between the liner called mantle on the moving head and the concave on the upper body.Eccentric shaft movement to the head ensures that the material is crushed between the two liners in the crushing chamber by eccentric gyrating movement of the head.

Advantages of Using Portable Cone Crushers

In addition to the general advantages of the cone crusher , such as less operating cost in hard and abrasive material crushing in a wide range of applications , the advantages of being portable are as follows:
Compact design : On the same chassis with the screen, is ready to produce the products on its own or can be easily adapted to a plant. Ready for operation: Can be commissioned and started up quickly

No concrete work: No need for excess concrete and site preparation Quick and easy site change for another project .

Portable Cone Crushers Processes Applications

Portable cone crusher with screen plants are suitable to produce products to be used in a variety of diverse industries such as recycling, in metallic mining, industrial mining, recycling and construction, etc.
