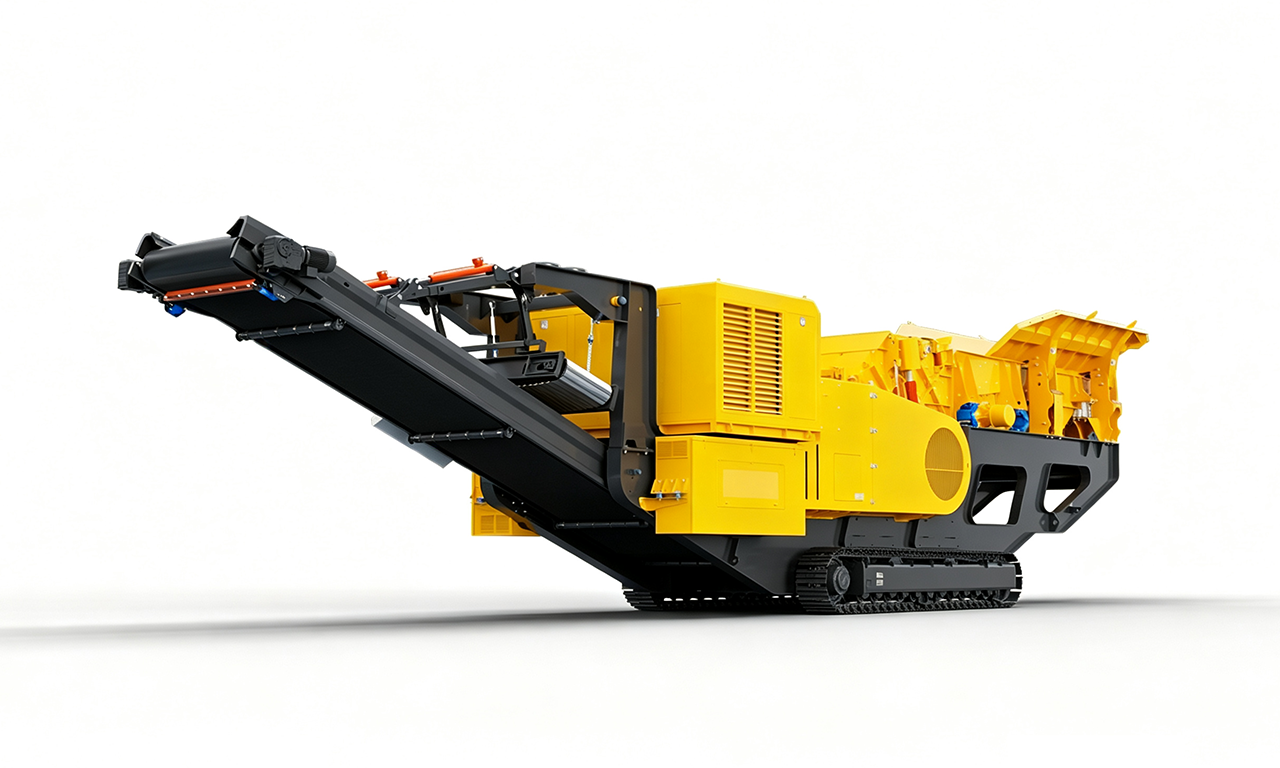

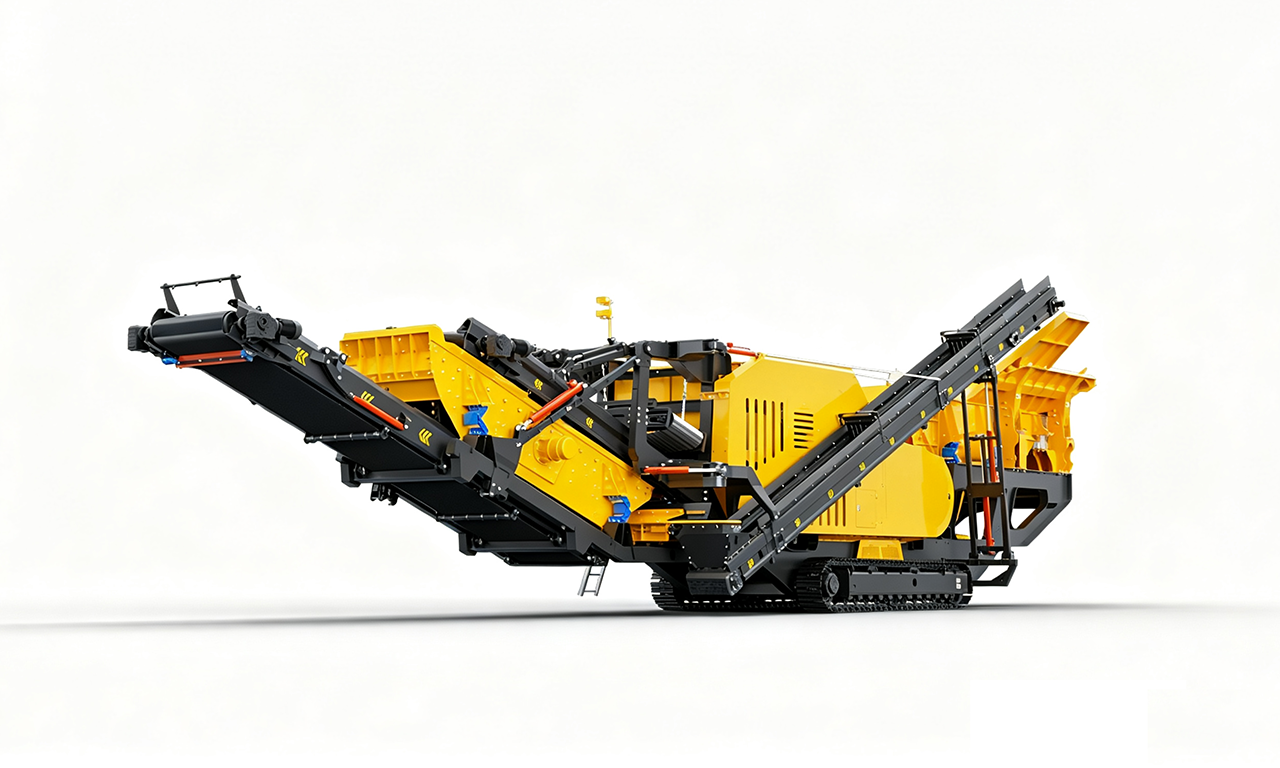

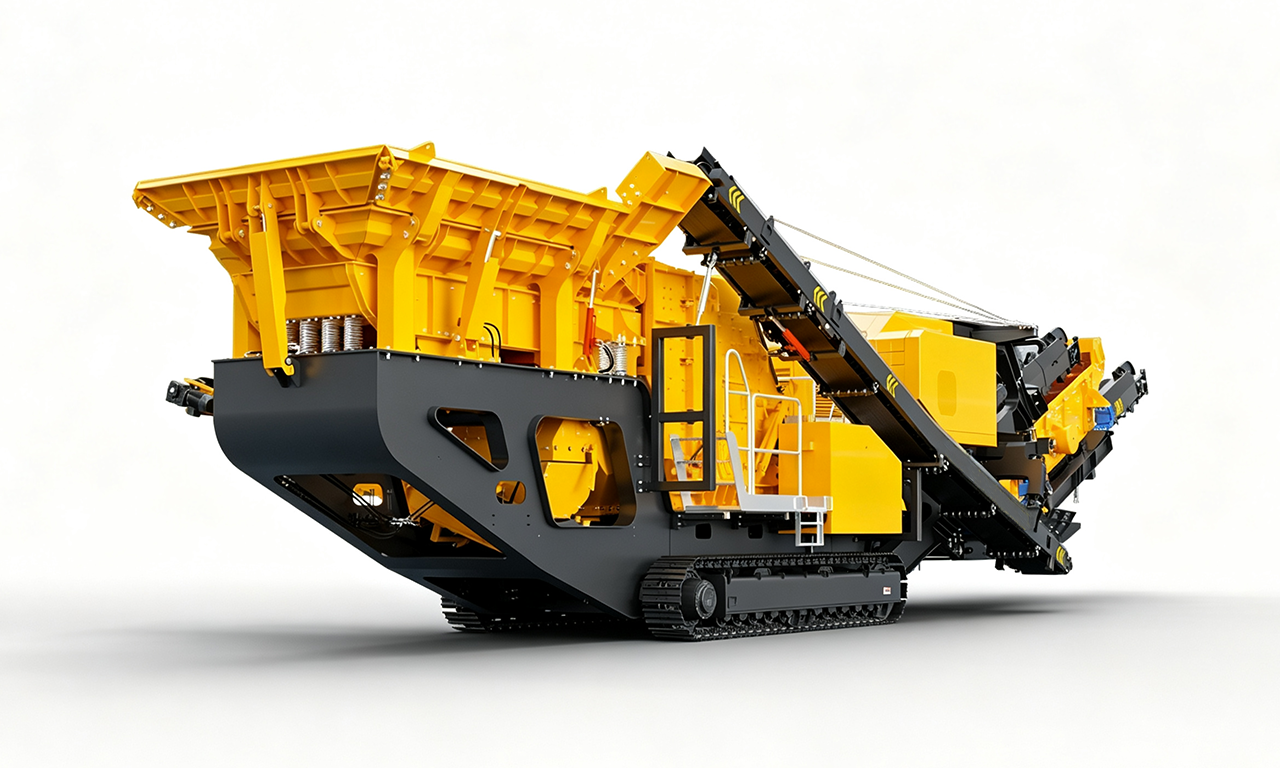

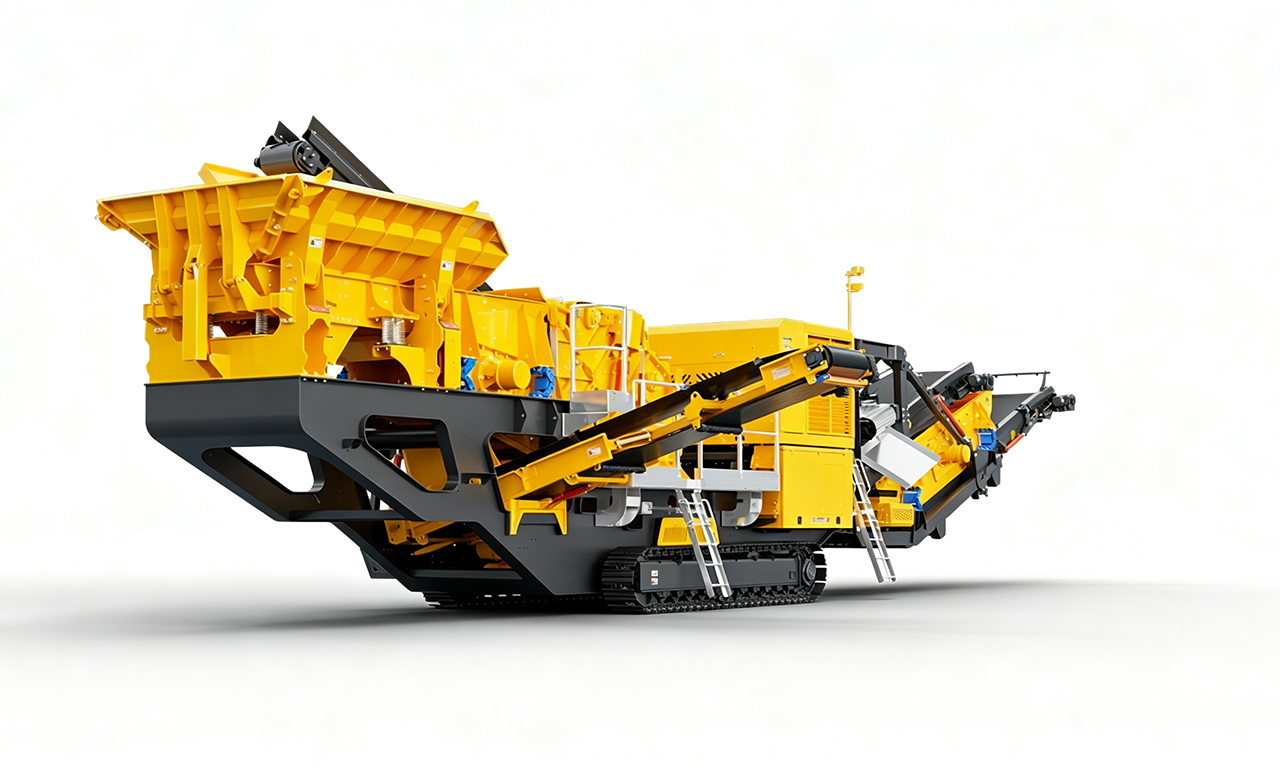

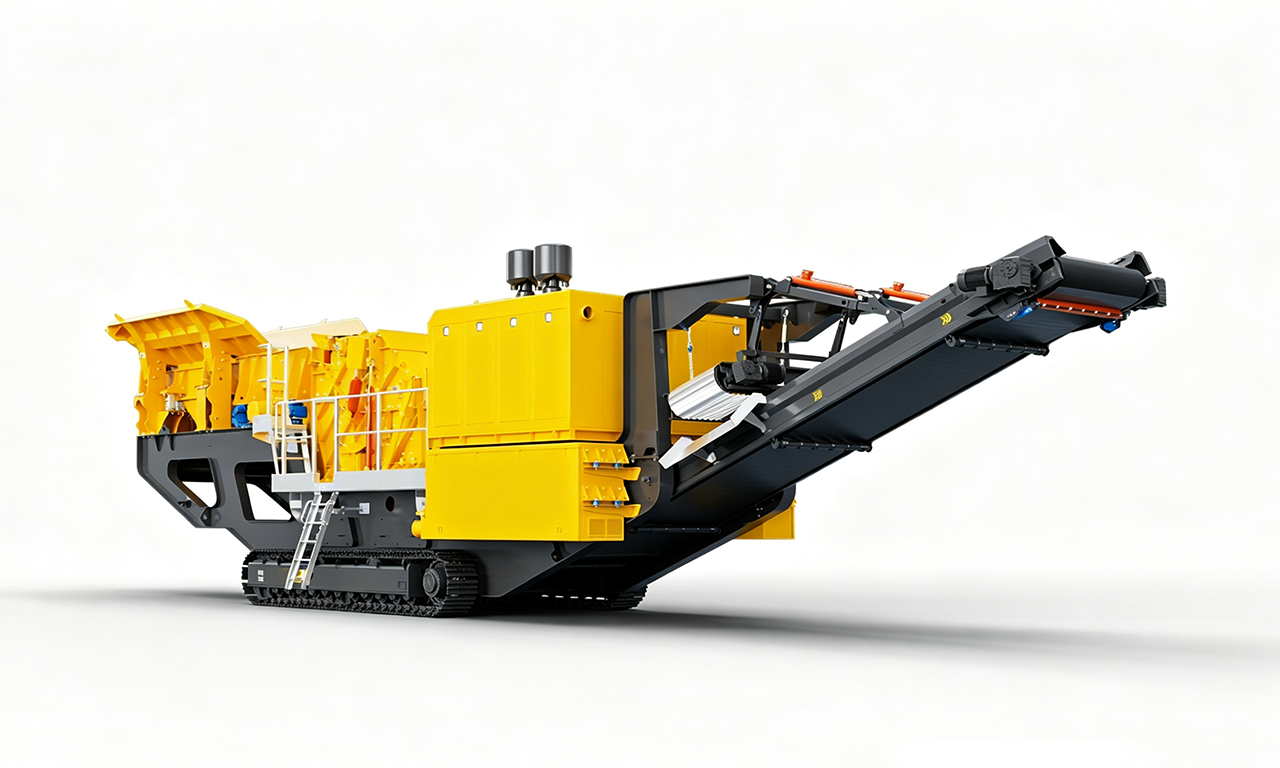

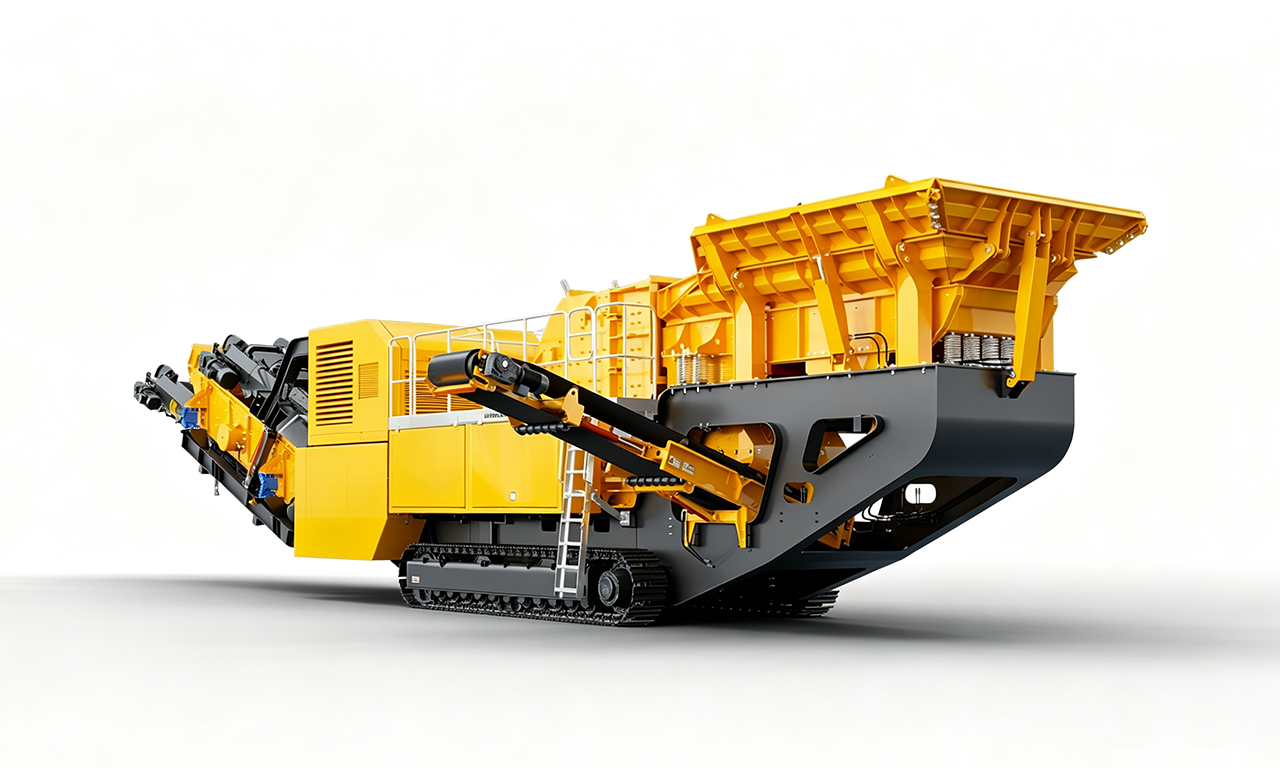

DKTEC mobile impact crushers combine powerful impact crushing technology with excellent mobility, providing an efficient solution for aggregate production, quarrying and recycling applications. Featuring a heavy-duty rotor, high-strength impact plates and wear-resistant blow bars, the crusher delivers high crushing capacity and a high reduction ratio while maintaining stable product quality. The optimized crushing chamber produces well-shaped, cubical aggregates with a low proportion of flaky and elongated particles, making the final material suitable for demanding construction applications. Mounted on a robust crawler chassis, the mobile crusher can be quickly relocated between different working areas and job sites, while its hydraulic adjustment and easy-access design simplify operation, inspection and maintenance. It is suitable for processing a wide range of materials, including limestone, granite, concrete and construction and demolition waste, offering a flexible and cost-effective crushing solution for various projects.
Suitable for crushing a wide range of materials, including limestone, granite, concrete and recycled aggregates, mobile impact crushers are an ideal solution for projects that require flexible and efficient crushing operations. Their compact design and excellent mobility allow them to be easily transported between different sites, making them particularly suitable for aggregate production, construction and demolition waste recycling, and various short-term or multi-site crushing applications.
Wide Application Range :
Designed for demanding crushing applications, DKTEC mobile impact crushers are suitable for processing a wide range of materials, including limestone, granite, concrete, construction and demolition waste, and recycled aggregates. They provide an efficient solution for aggregate production, quarrying and recycling applications.
Superior Mobility:
Mounted on a robust crawler chassis, the mobile impact crusher can be easily relocated between different working areas and job sites. Excellent mobility provides greater flexibility for multi-site projects and reduces the time and cost associated with plant relocation.
Robust Construction :
Built for demanding working conditions, DKTEC mobile impact crushers feature a heavy-duty chassis and durable components designed for continuous crushing operations. The robust construction ensures reliable performance and long service life in challenging environments.
High Crushing Efficiency:
The optimized impact crushing system delivers high reduction ratios and excellent particle shape, helping produce high-quality aggregates with consistent particle size. The integrated design combines feeding, crushing and conveying functions into a compact and efficient mobile crushing unit.
Quick Setup & Easy Maintenance:
The integrated crawler-mounted design enables fast deployment and convenient relocation on site. Easy access to key components simplifies inspection, maintenance and wear-part replacement, helping minimize downtime and maximize equipment availability.
Energy-Efficient Operation:
Designed with an optimized power system and efficient crushing process, DKTEC mobile impact crushers help reduce unnecessary energy consumption while maintaining high crushing performance. The efficient design contributes to lower operating costs and more sustainable material processing.
Flexible Crushing Solutions:
DKTEC mobile impact crushers can be combined with mobile screens, conveyors and other crushing equipment to create complete mobile crushing and screening solutions. Flexible configurations allow the plant to be adapted to different materials, production capacities and final product requirements.
| Model | DKI-4000RS | DKI-4800RS | DKI-5300RS |
| Feeding Equipment | |||
| Feeding Capability [t/h] | 400 | 500 | 700 |
| Max Feeding Size [mm] | 750 | 600 | 950 |
| Feeding Height [mm] | 3200 | 3800 | 3800 |
| Bucket Capacity [m³] | 5 | 5 | 5 |
| Vibrating Feeding Machine | |||
| Length × Width [mm] | 4000×1200 | 4000×1100 | 4000×1200 |
| Power [kW] | 3.7×2 | 3.0×2 | 3.7×2 |
| Crusher | |||
| Impact Crusher Model | 4000 | 4800 | 5300 |
| Crusher Opening Length × Width [mm] | 1300×900 | 1150×700 | 1300×1100 |
| Max Feeding Size [mm] | 400 | 500 | 600 |
| Crusher Weight [t] | 19 | 12 | 22 |
| Crusher Power [kW] | 132 | 220 | 280 |
| Main Belt | |||
| Height [mm] | 3000 | 2850 | 3000 |
| Length × Width [mm] | 10500×1000 | 10500×1000 | 11000×1200 |
| Power [kW] | 7.5 | 11 | 15 |
| Returning Charge Screening | |||
| Length × Width [mm] | 3800×1600 | 3800×1600 | 3800×1600 |
| Power [kW] | 15 | 15 | 15 |
| Transitional Belt | |||
| Length × Width [mm] | 2250×500 | 2250×500 | 2250×500 |
| Power [kW] | 3 | 3 | 3 |
| Returning Charge Belt | |||
| Length × Width [mm] | 8800×600 | 8800×600 | 8800×600 |
| Power [kW] | 4 | 4 | 5.5 |
| Finished Product Belt | |||
| Length × Width [mm] | 6000×1000 | 6000×1000 | 6000×1000 |
| Power [kW] | 5.5 | 5.5 | 5.5 |
| Overall Unit | |||
| Walking Engine Power [kW] | 106 | 106 | 145 |
| Total Weight [t] | 32 | 38 | 45 |
| Processing Capacity [t/h] | 80-220 | 180-360 | 280-650 |
| Transportation Dimension [m] | 17×3.55×3.7 | 17×3.3×3.8 | 17×3.06×3.8 |
| Total Power [kW] | 265.9 | 173 | 331.4 |
*Capacity figures shown apply to material weighing 1.6 tons per cubic meter, or 100 pounds per cubic foot. Performance may vary depending on the feed gradation, feed moisture content, crushability of the material, rpm, installed power and the circuit design. Please consult DKTEC for specific applications.
