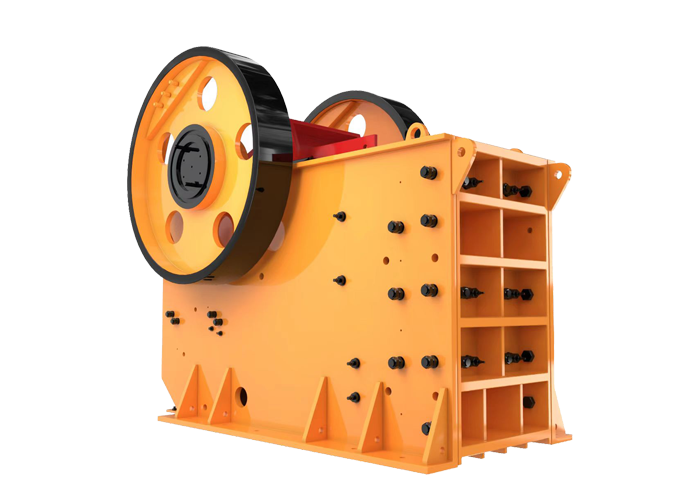

Jaw Crusher

Jaw crusher adopts wear resistant high manganese material with the advantages of light weight,high strength, good rigidity and low energy consumption.Not only greatly reduce the equipment operation cost, but also has a bigger feed size and more even final product. maximum compression strength is 320MPA. PE Series is used in the primary crushing, and PEX series is the secondary crushing machine. jaw crusher can fully satisfied customers' crushing requirements from various industries including mining,metallurgy,building materials, water conservancy, chemistry,etc.

Quick Quote

Applications

Primary and secondary crushing applications for quarrying, mining, recycling and industrial minerals.

Toughest feed materials,

Stationary, underground and mobile crushing applications.

Why DKTEC Jaw Crusher?

High capacity,

High reduction,

Low jaw plate wear,

Large feed acceptance capability,

Optimized nip angle ensures that the material progresses smoothly down through the crushing chamber to enable high reduction, productivity and superb utilization of jaw plates.

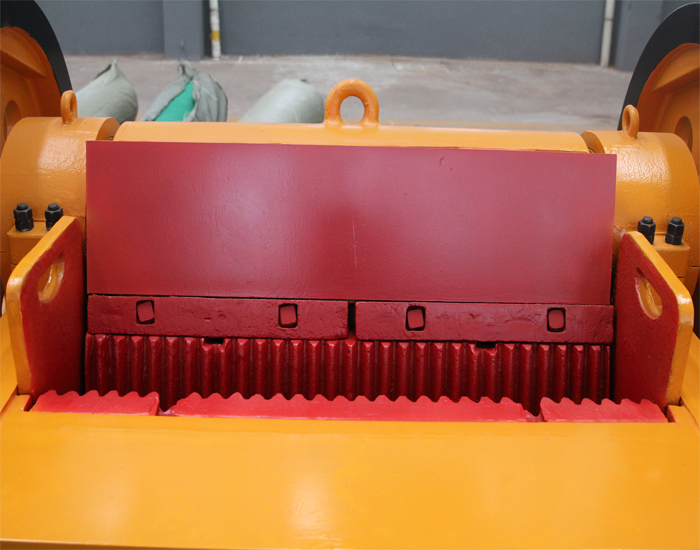

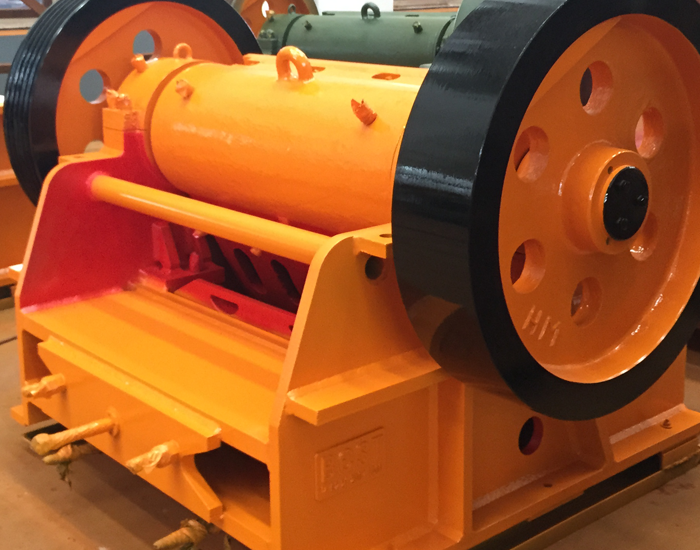

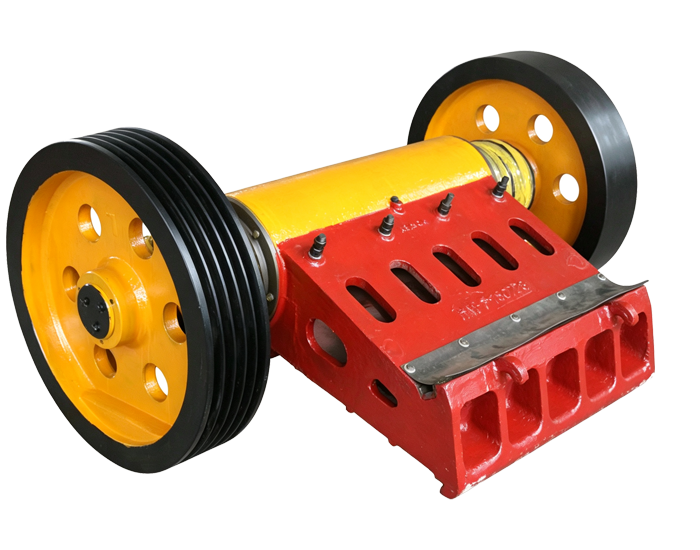

Jaw Crusher Highlights

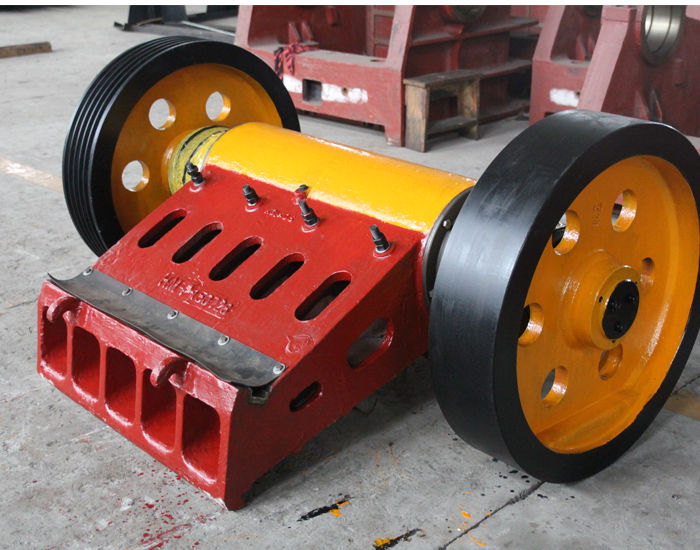

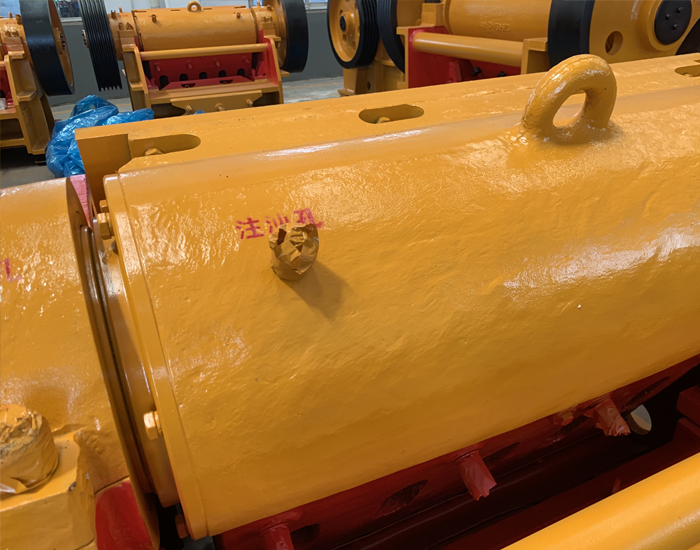

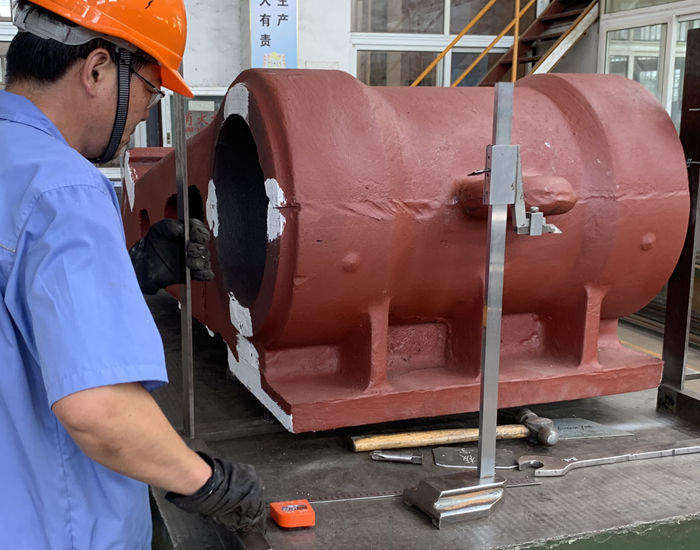

Highlight

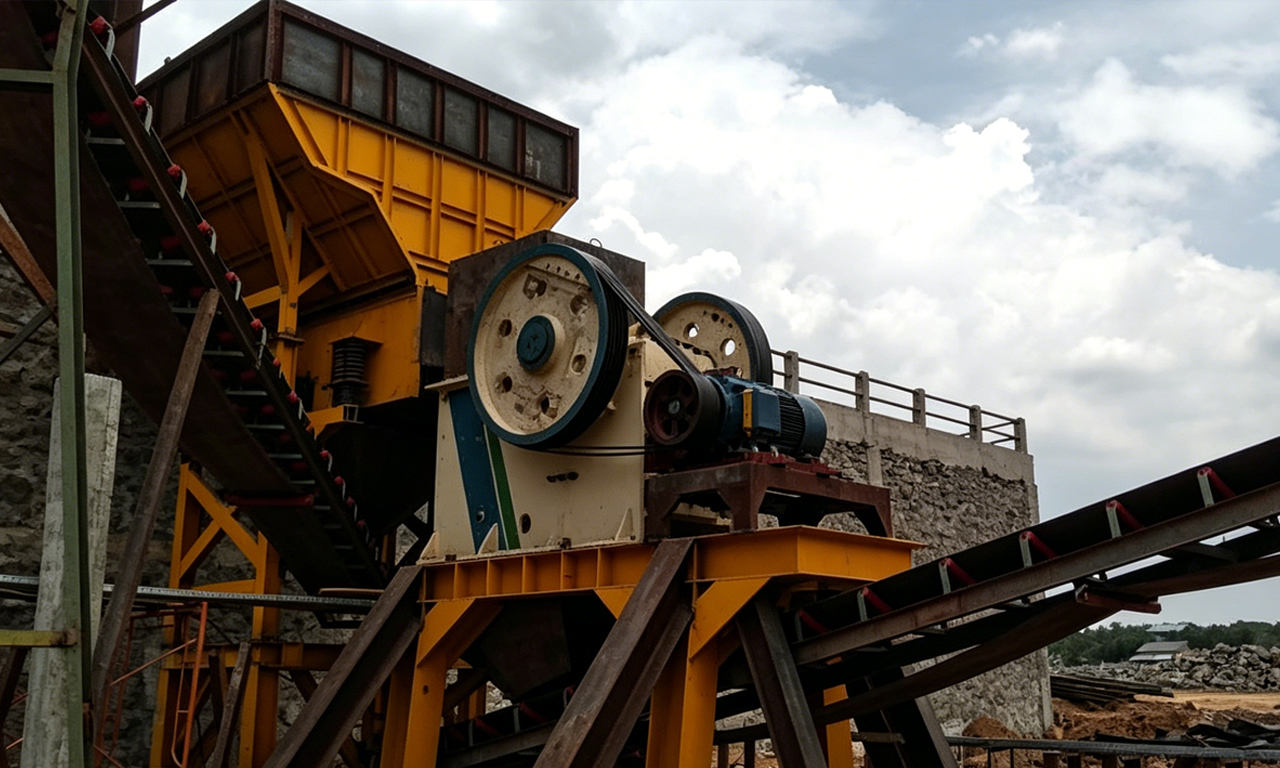

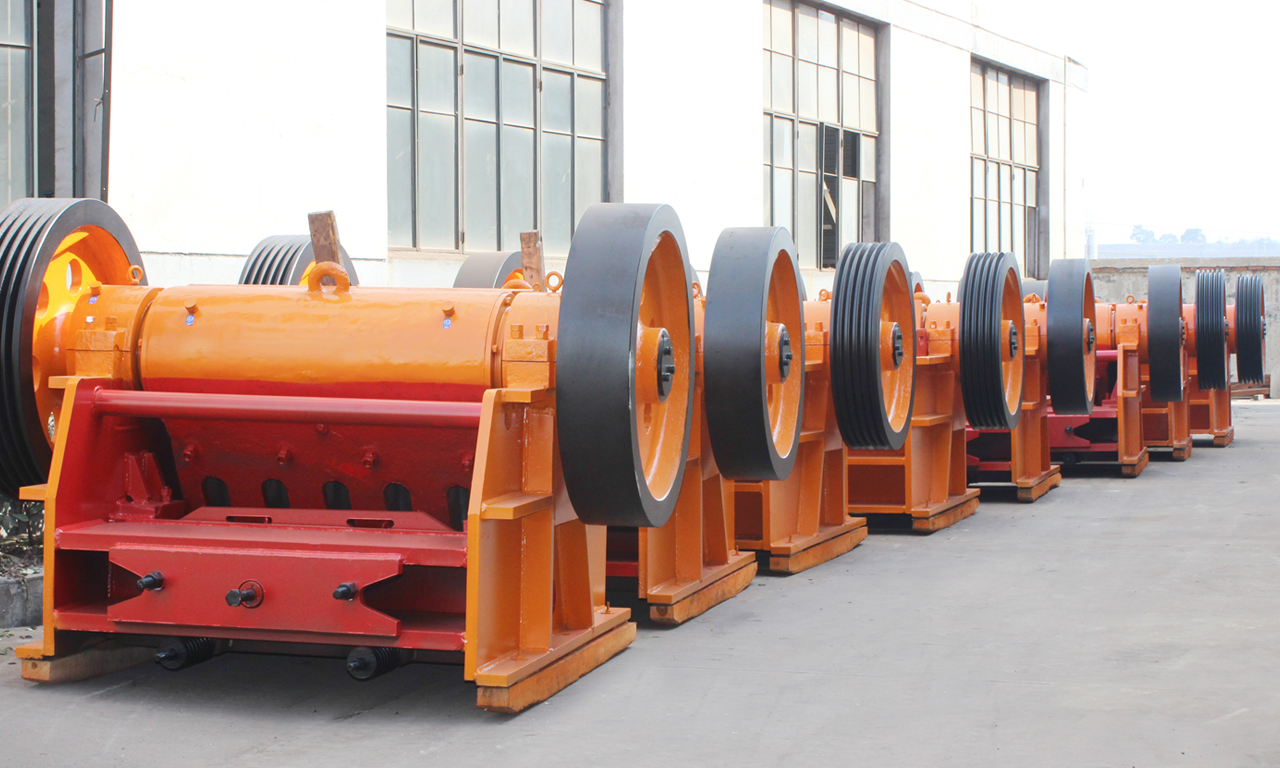

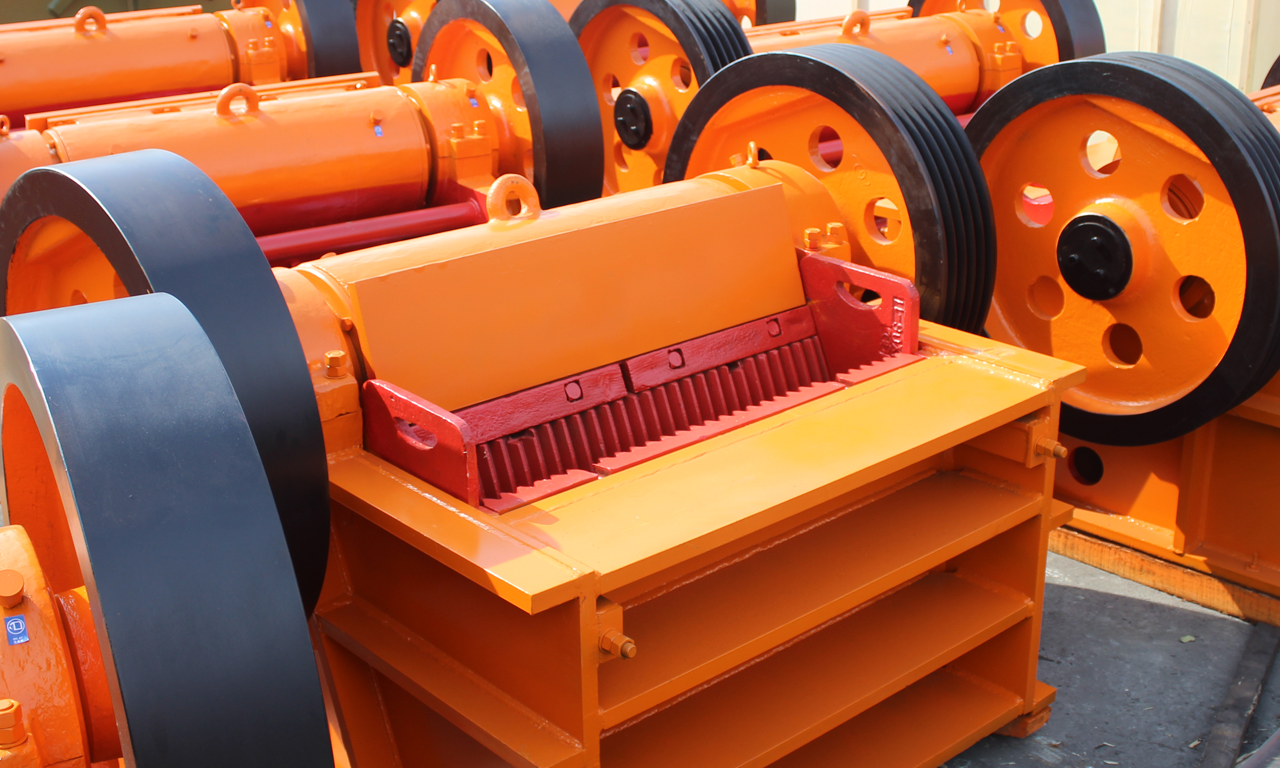

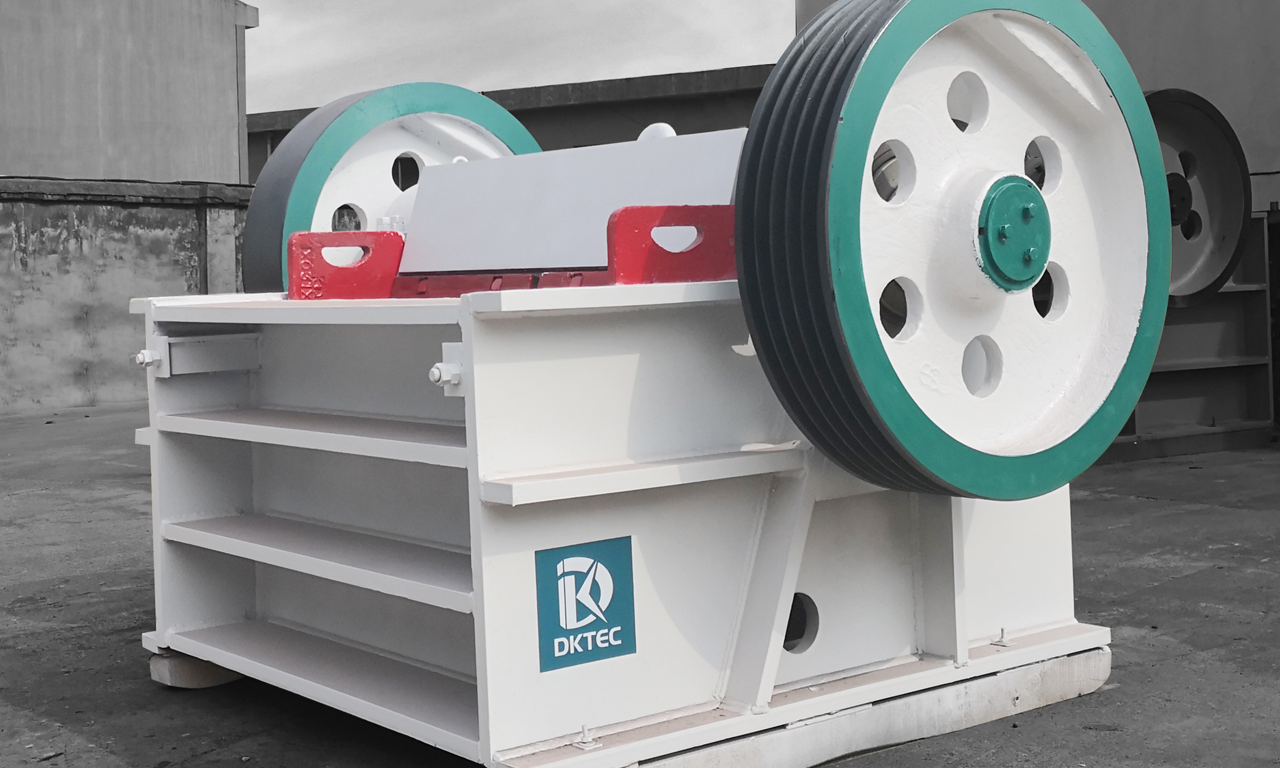

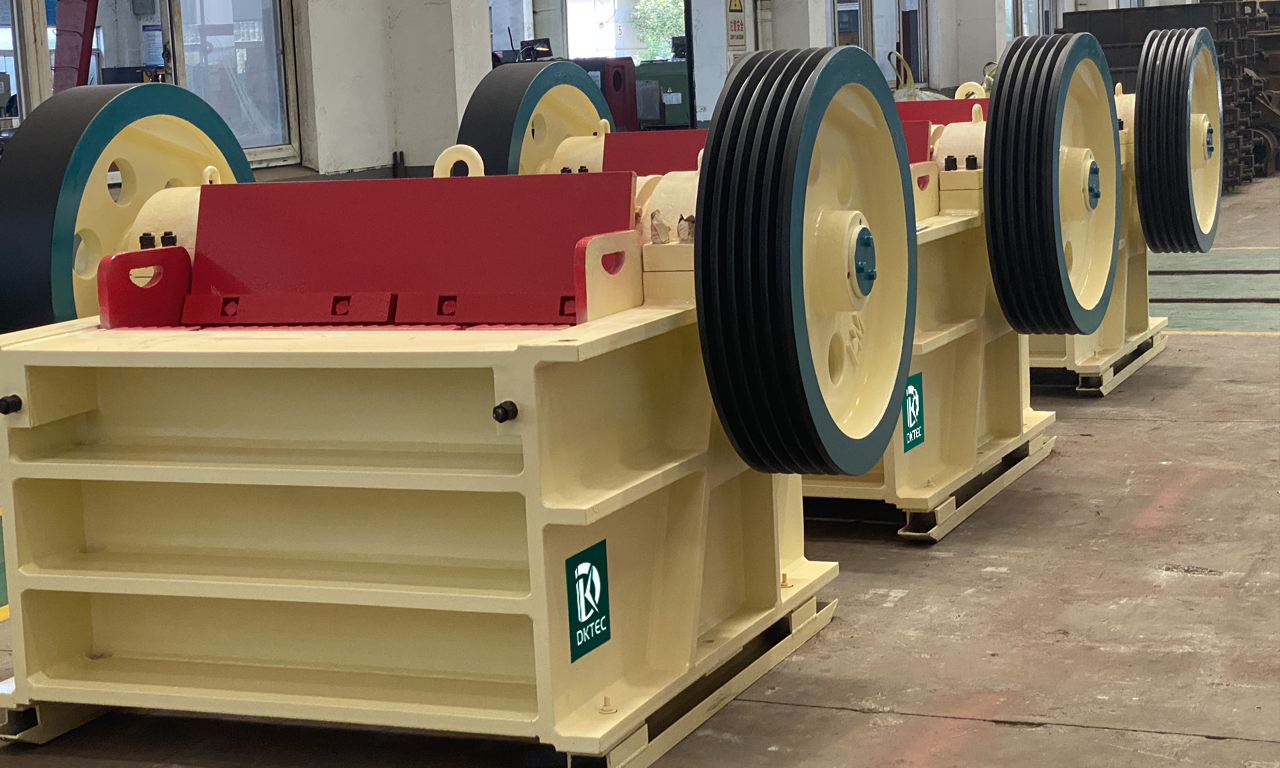

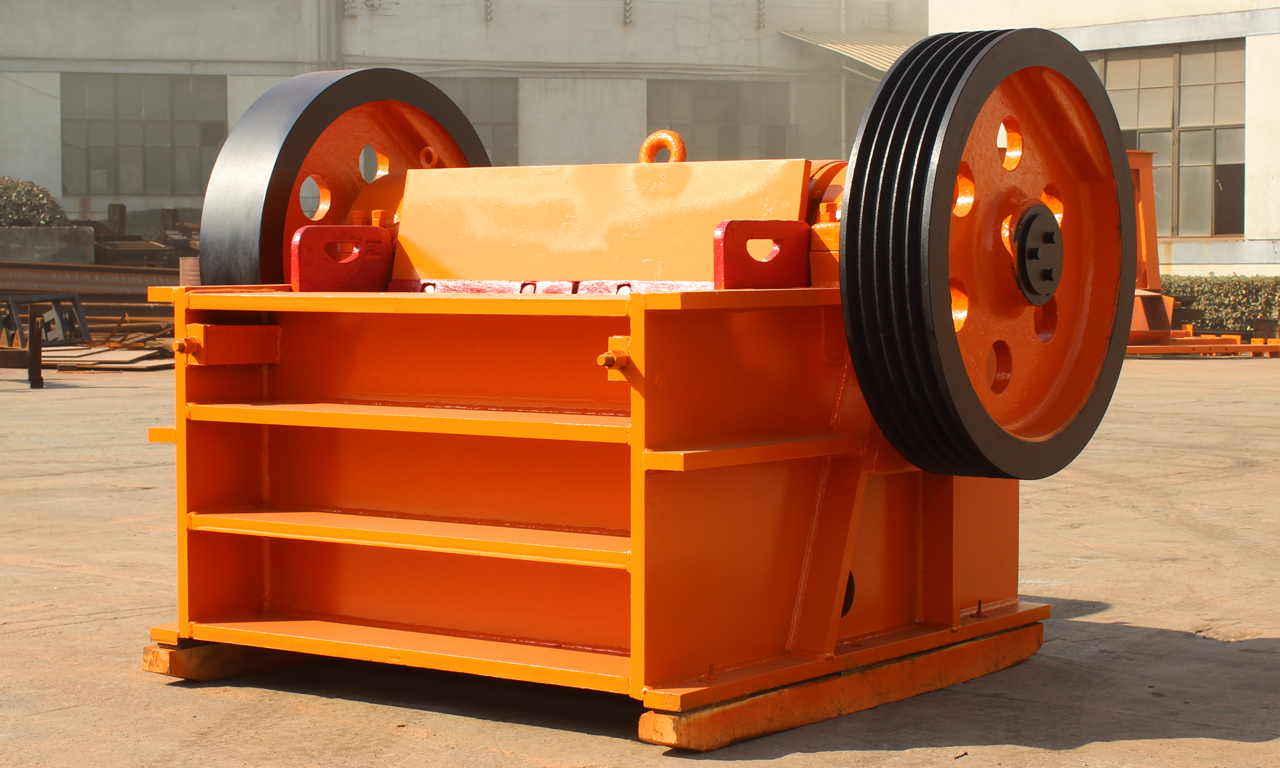

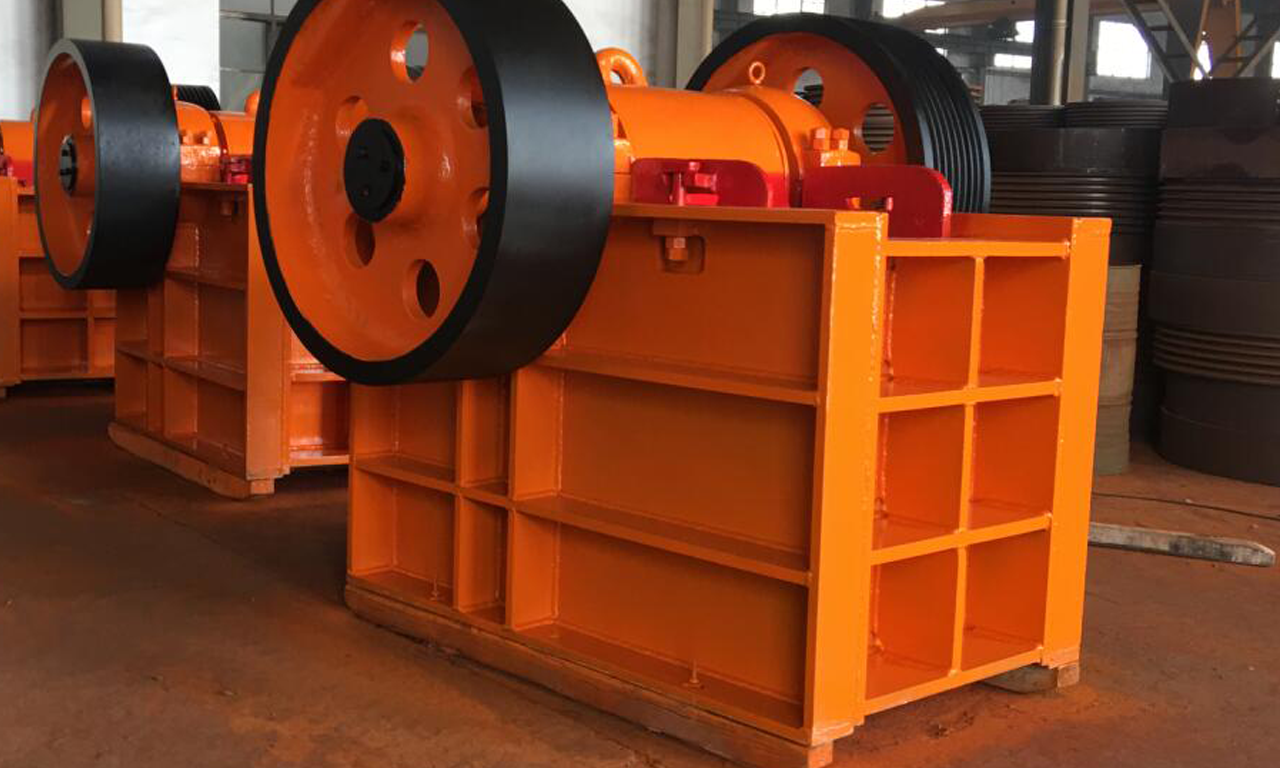

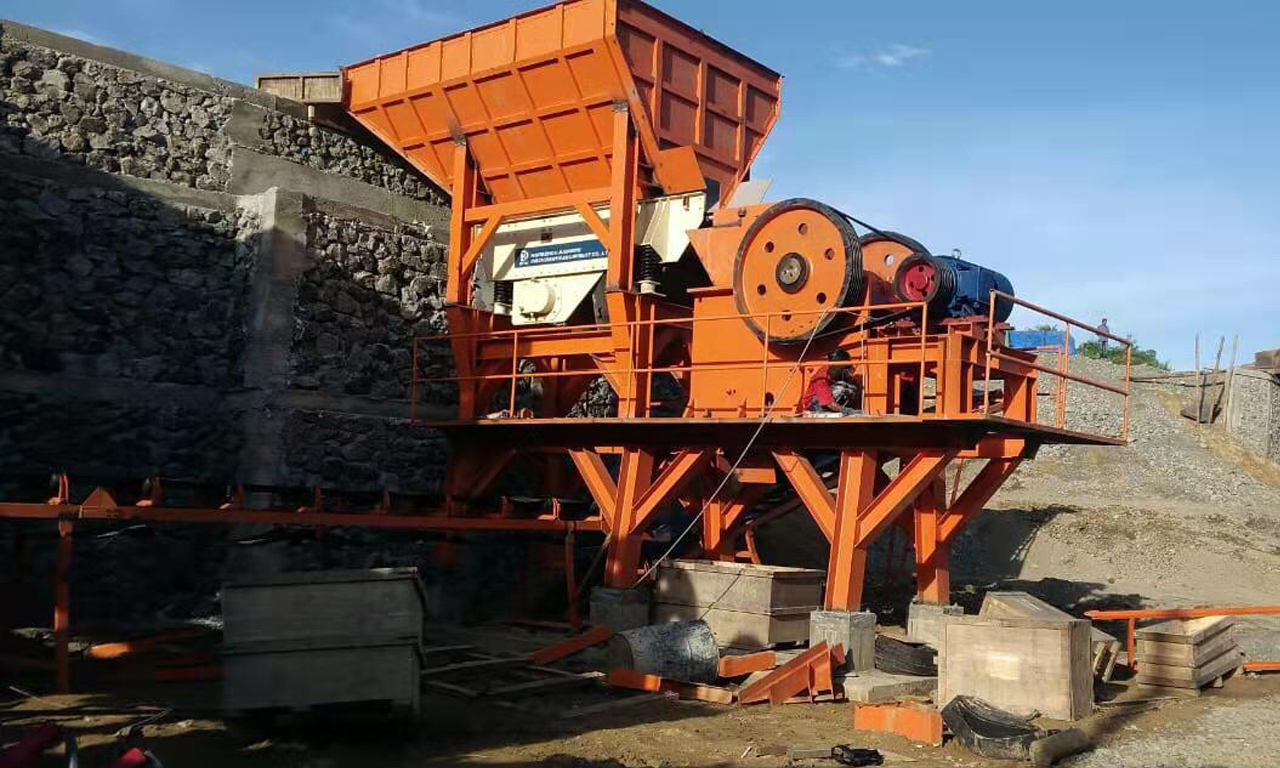

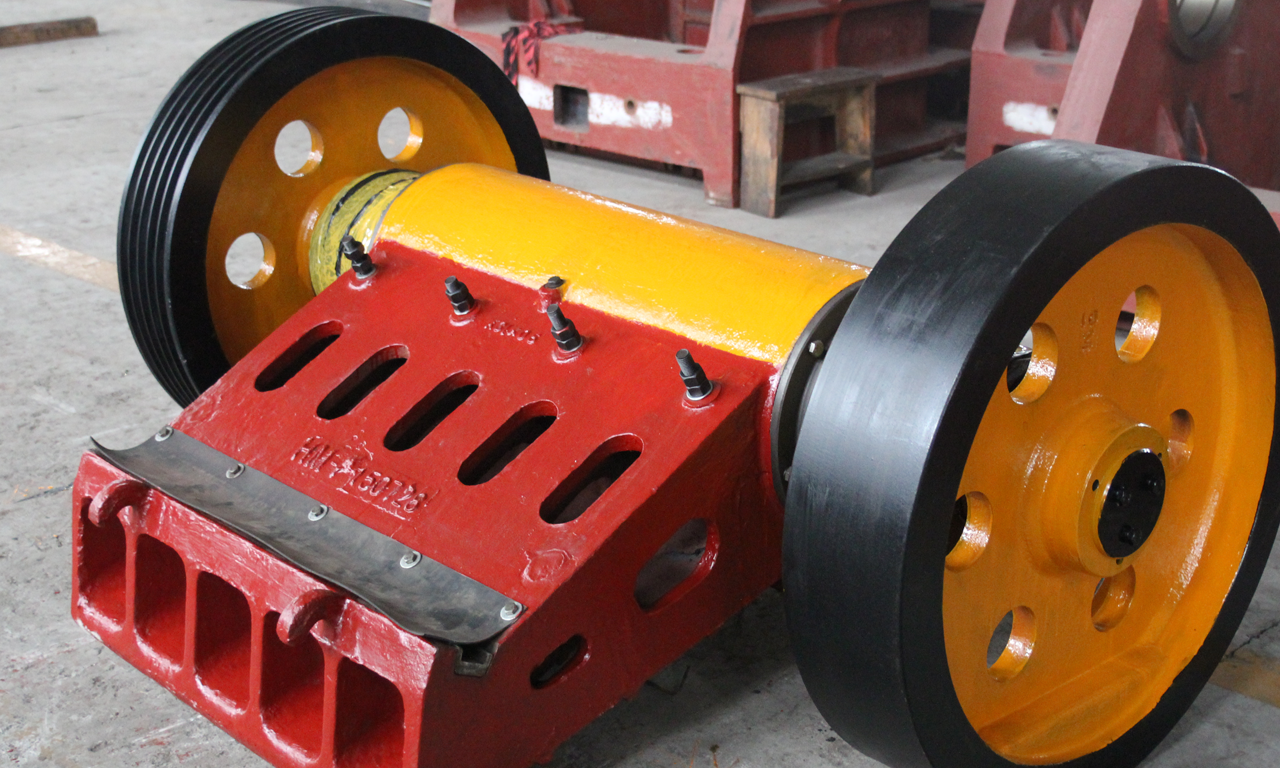

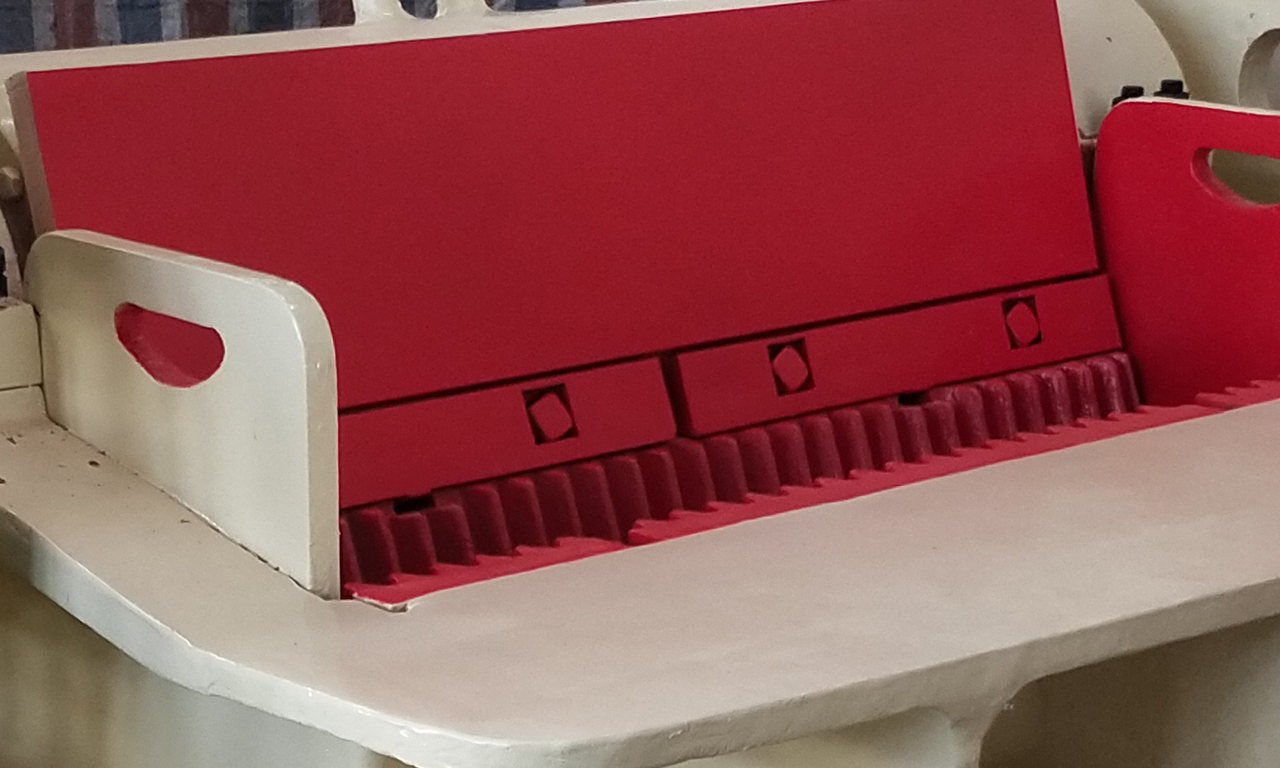

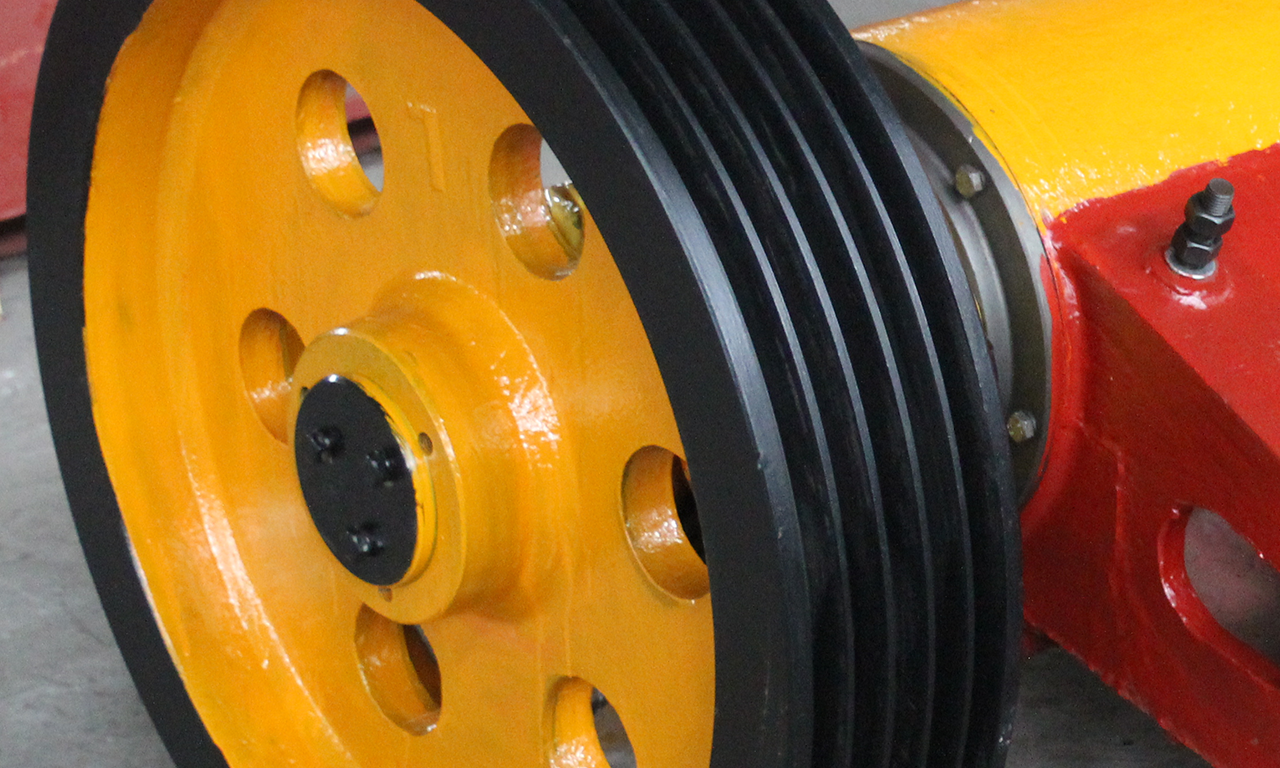

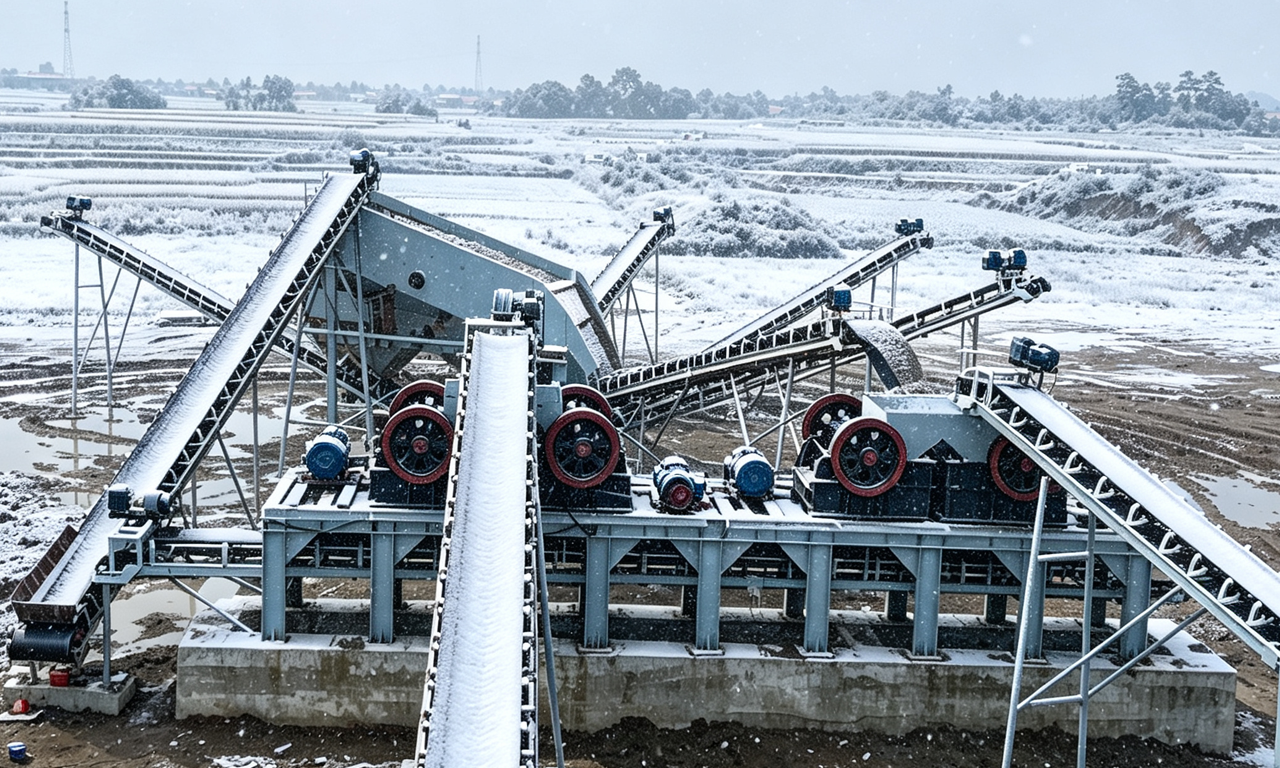

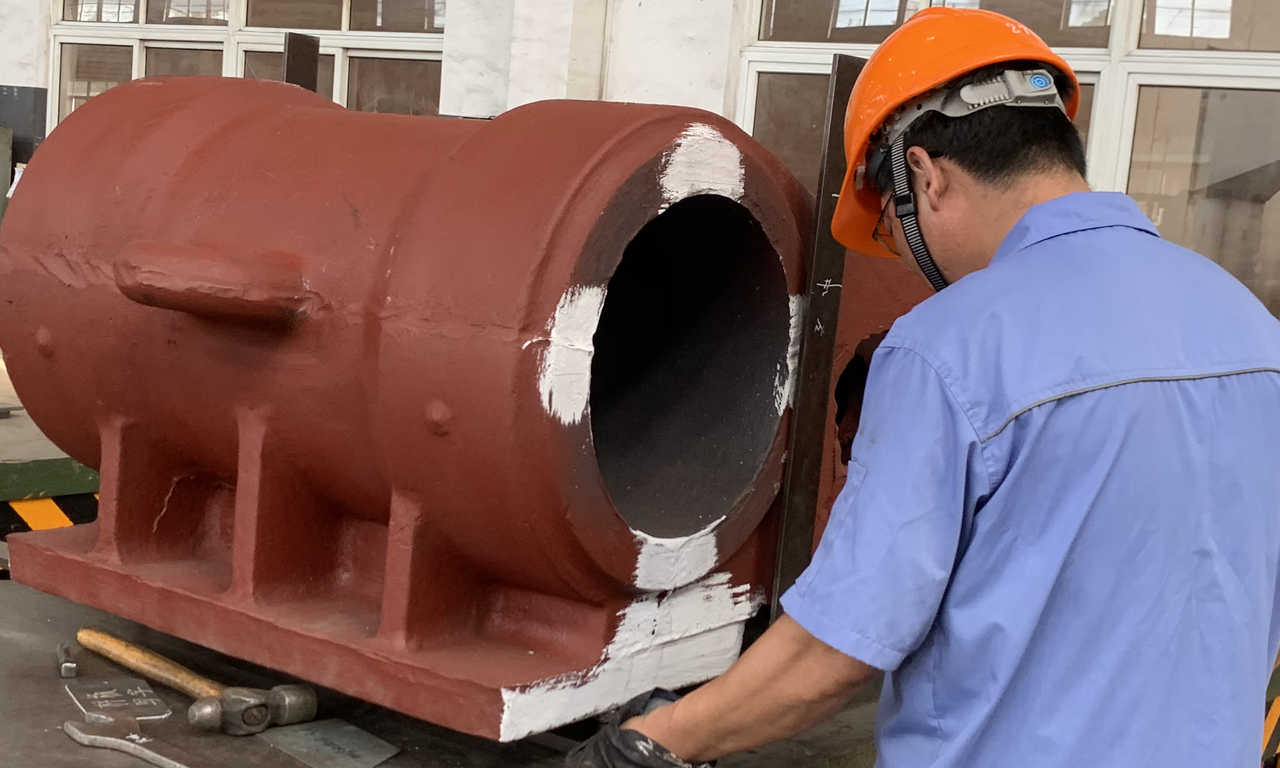

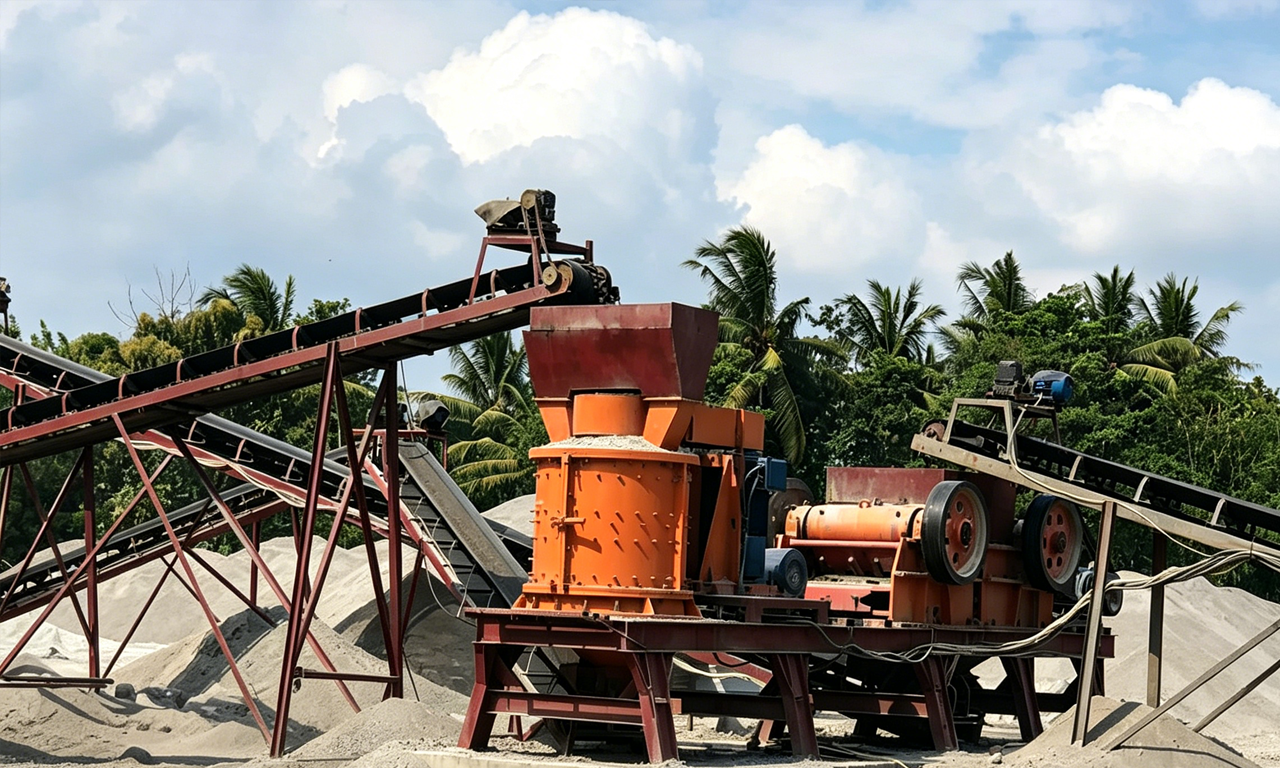

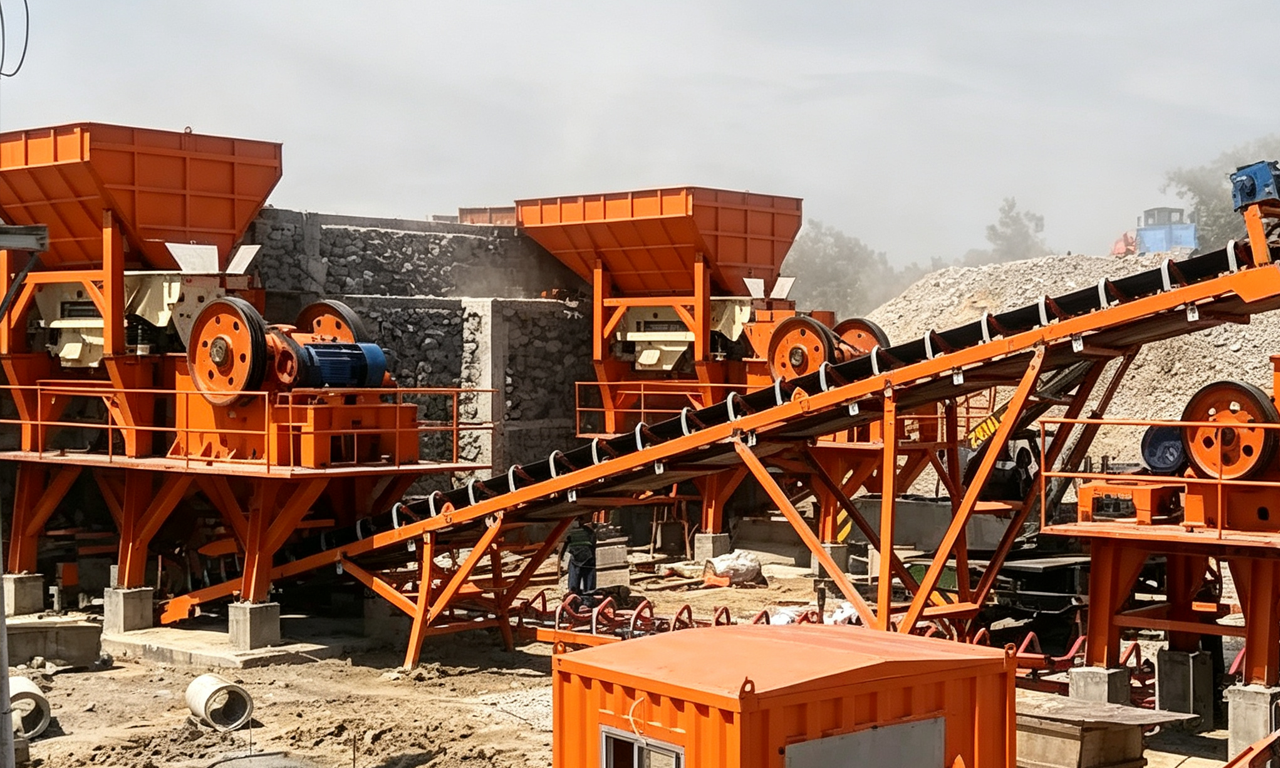

Jaw Crusher Gallery

DKTEC Jaw Crusher Download Catalogue
- DKTEC CRUSHER.pdf
  6.71 MB DOWNLOAD

Jaw Crusher Technical Specifications

MODEL	Feed opening size (mm)	Max.feeding size (mm)	Adjustable range of discharge opening(mm)	Capacity (t/h)	Electric motor power (kw)	Weight (t)	Dimension (mm)
PE500×750	500×750	425	50-100	45-100	55	10.1	1892×2054×1853
PE600×900	600×900	500	65-160	70-150	55-75	15.5	2520×1840×2303
PE750×1060	750×1060	630	80-140	120-220	110	28.0	2450×2410×2860
PE800×1060	800×1060	650	100-200	140-240	110	30.0	2660×2556×2800
PEX250×1000	250×1000	210	25-60	16-52	30-37	6.5	1530×1992×1380
PEX250×1200	250×1200	210	25-60	20-60	37	7.7	1750×2192×1430
PEX300×1300	300×1300	250	20-90	20-90	55	11.0	1900×2320×1724

* For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.

** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

What is Jaw Crusher?

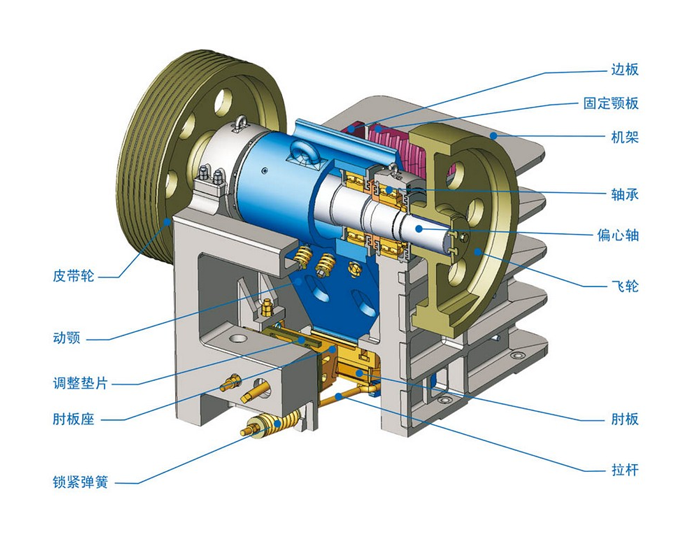

Jaw crushers comprise one fixed and one moving jaw. Material is crushed between the movable jaw and the fixed jaw through the application of compressive force produced by the elliptical motion of the movable jaw. The movable jaw, which is supported from the top by an eccentric shaft, is connected to the tension rod and built-in an angled toggle plate that absorbs the cyclic loads in the bottom section.

Types of Jaw Crusher

Primary jaw crushers are used in the first stage of a crushing process for the breaking of large-sized rocks, while secondary jaw crushers with smaller feed openings are used to break smaller ores into finer sizes.

Two different designs of jaw crushers are also produced, being single or double toggle depending on the movement system of the jaw. Single toggle jaw crushers are the most common type, double toggle jaw crushers are for crushing of extremely hard materials.

How Does Jaw Crusher Work?

The material fed to the crushing chamber is crushed when the movable jaw moves towards the fixed jaw by compressing it against the fixed jaw. The movable jaw is driven by an eccentric shaft. Toggle plate attached to the lower part of the mobile jaw acts as a safety mechanism by protecting the jaw crusher from overload situations. The tension rod plays a role in the operation of a jaw crusher by providing the necessary tension and alignment to the toggle plate and the continuation of the cycle.

Advantages of Using Jaw Crusher

· They can be used as a primary or secondary crushers, depending on the feed size.
· The use of jaw crushers in underground applications is convenient and common, as they can be produced with few parts, and are easy to carry, assemble and maintain.
· There are no capacity problems, as the desired capacity can be achieved by using more than one crusher in parallel when necessary.
· They are easy to maintain and affordable.
· The replacement of worn jaws is not time-consuming.

Jaw Crusher Processes Applications

Jaw crushers are used as the primary crushers in the first stage of the crushing process and are preferred when breaking large rocks is the priority rather than achieving high capacity.
Jaw crushers can be used as first-stage crushers in small- and medium-sized plants, as well when secondary crushing is necessary.
The stroke of the jaw generally varies between 20 and 40 mm, That said, the closed side setting at the discharge is as important as the feed opening of the jaw crusher. Closed side setting can be adjusted within certain limits.
