Energy savings thanks to reduced running time
Low consumption of wash water
Low maintenance, easy and quick
Non-stick Sint engineering polymer components resistant to abrasion
Perfect aggregate washing
High efficiency in solid-liquid separation thanks to large water volume in the screw

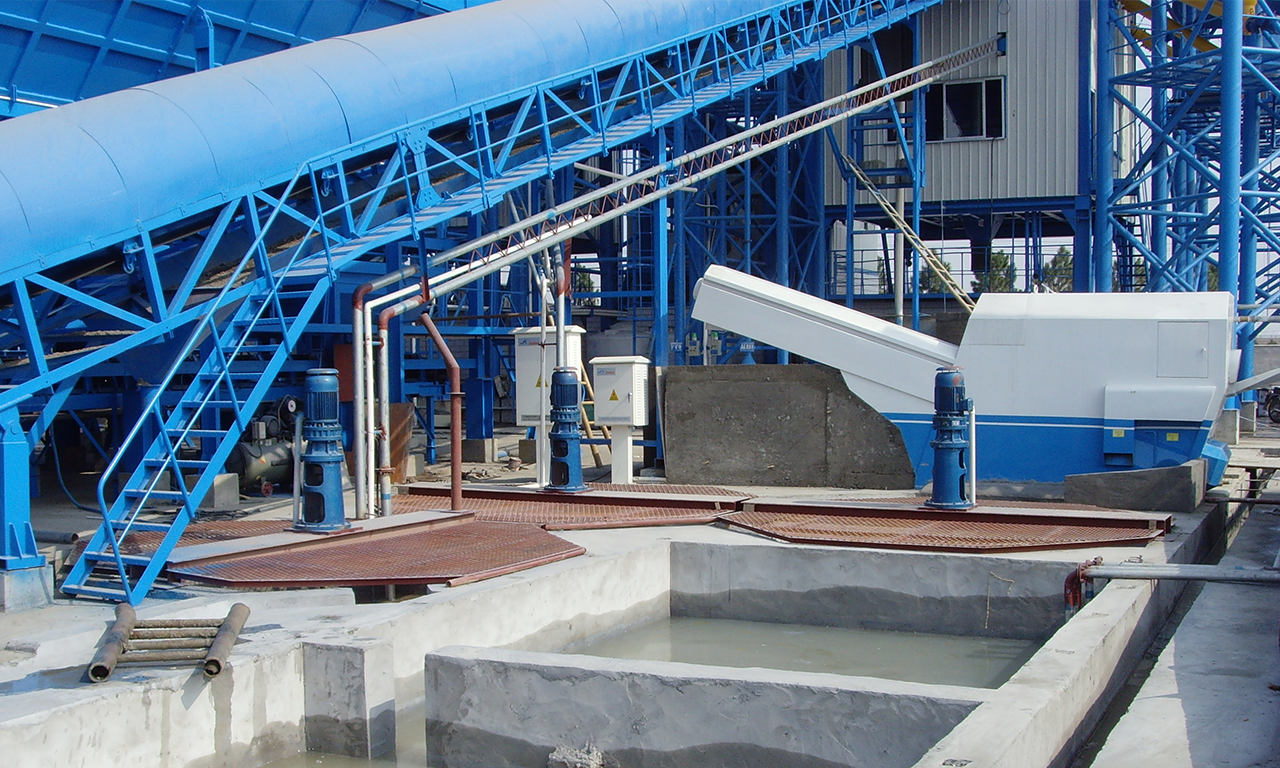

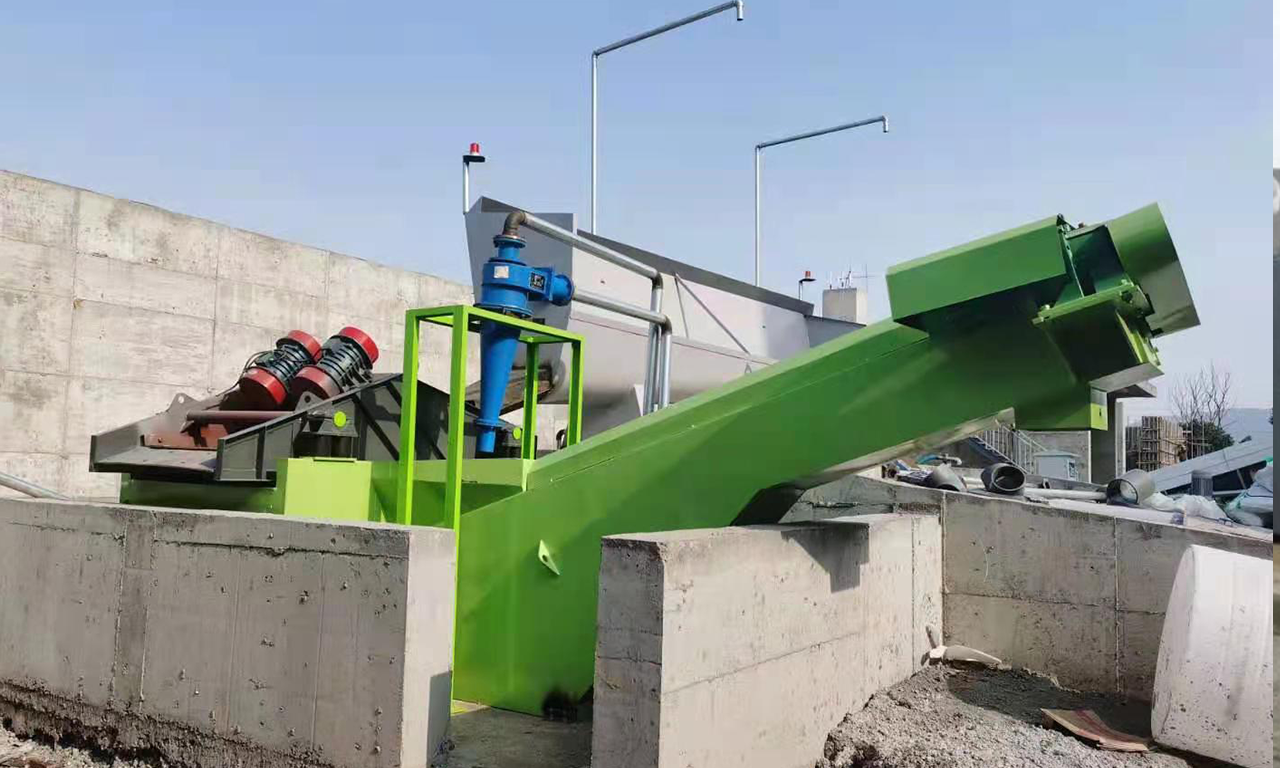

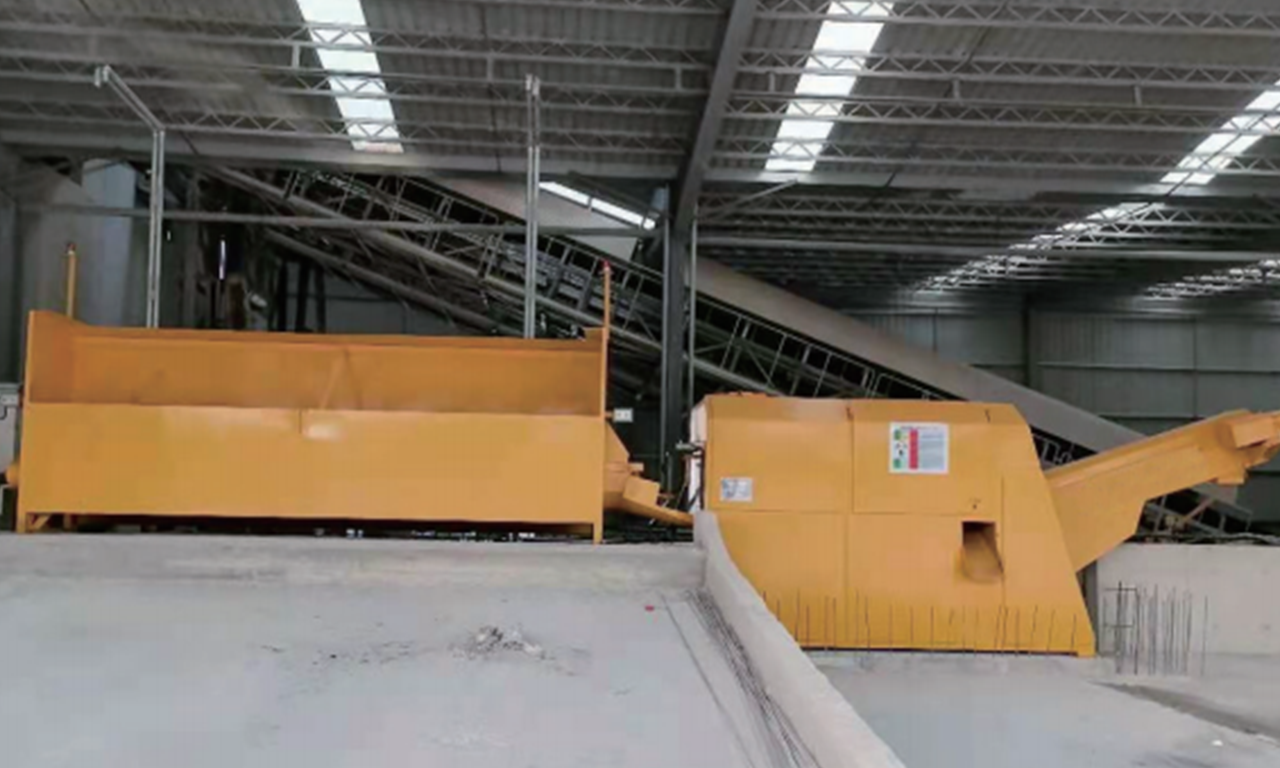

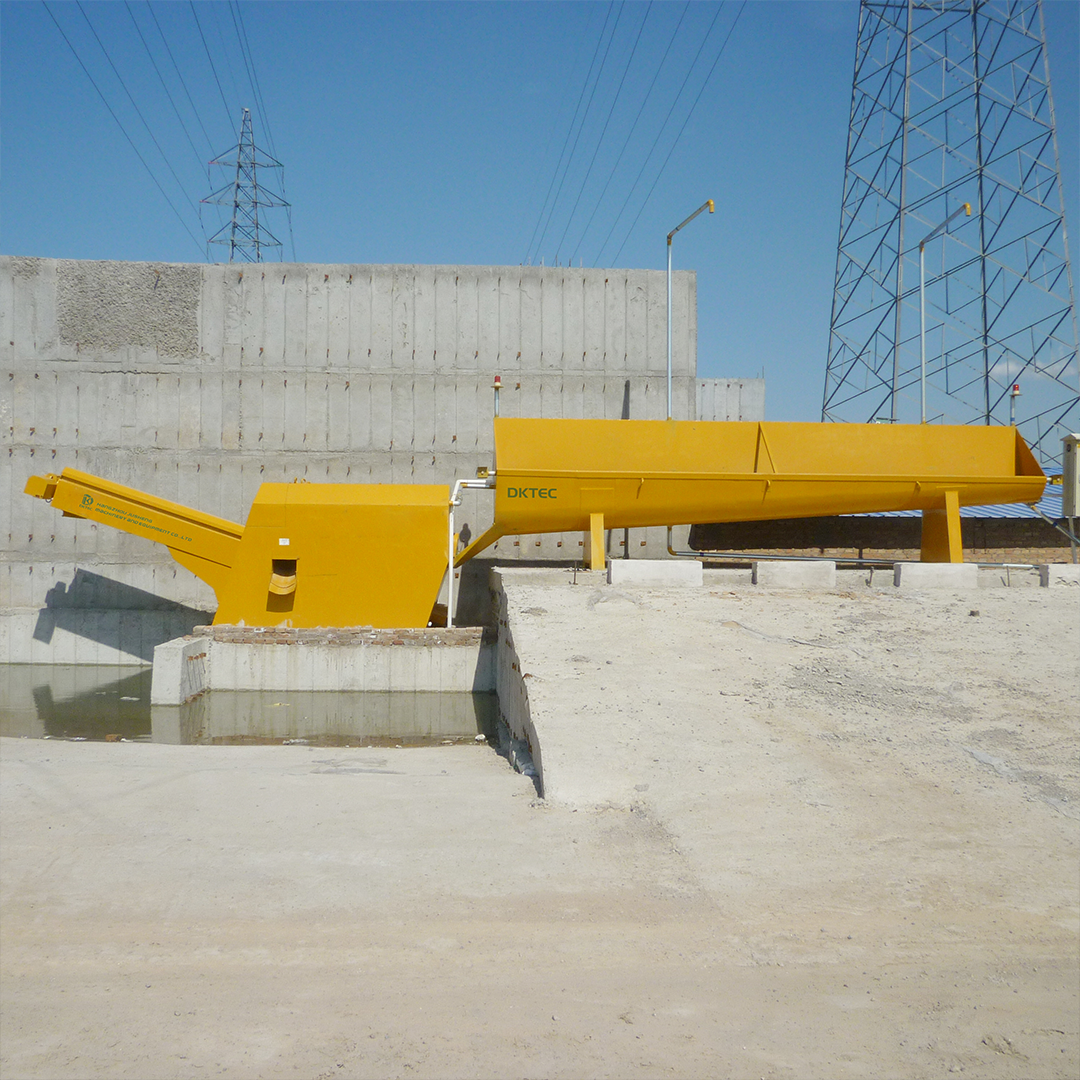

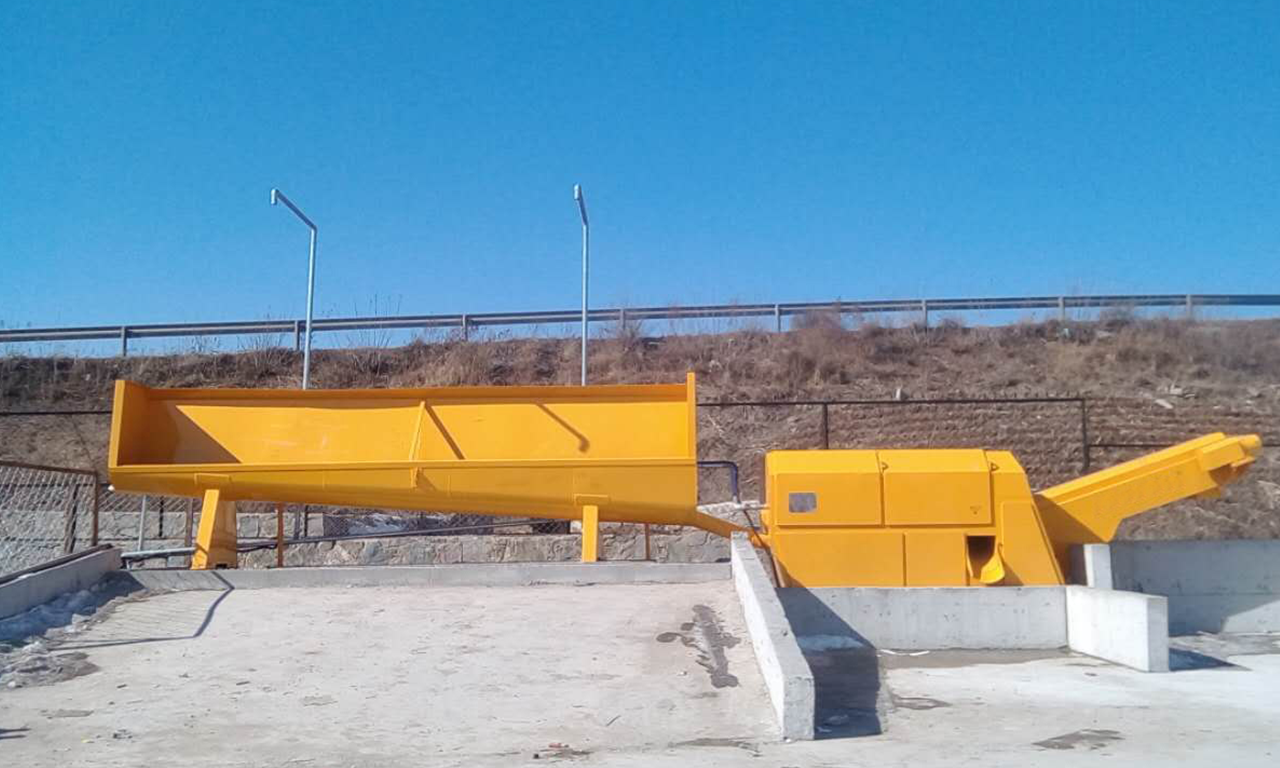

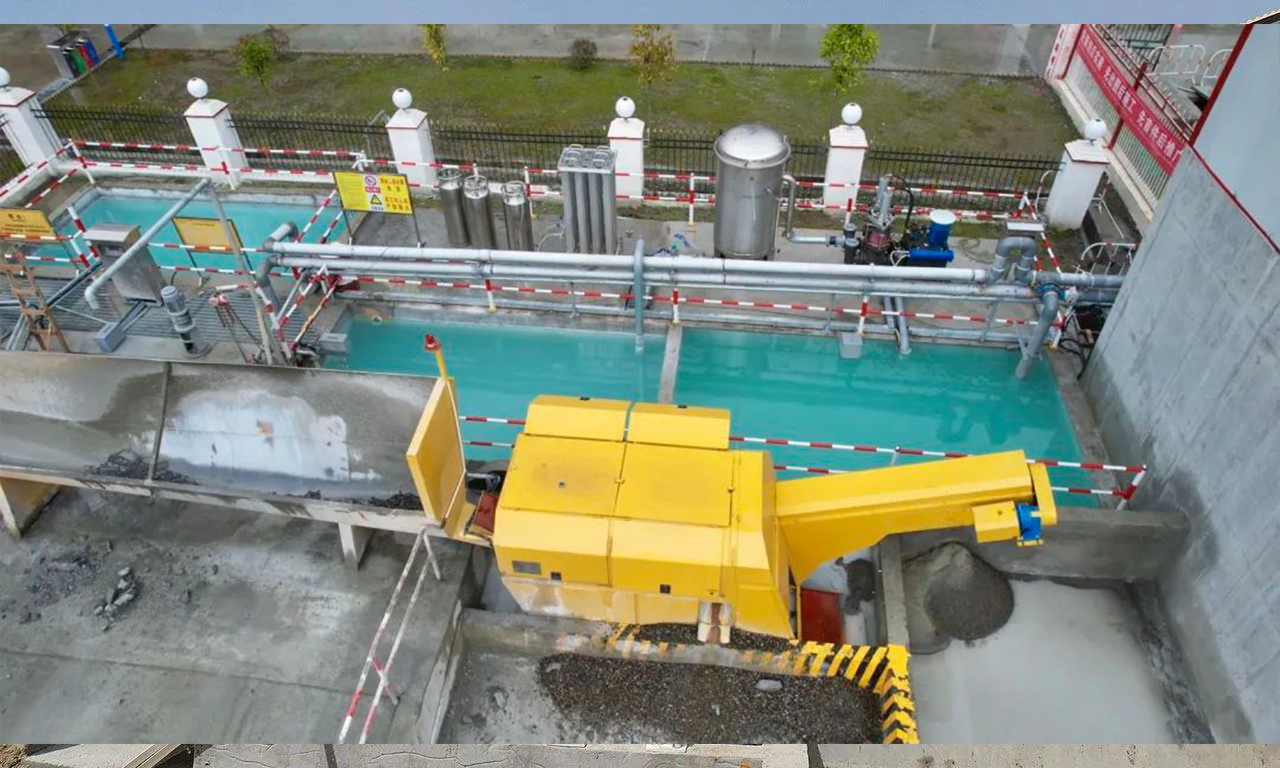

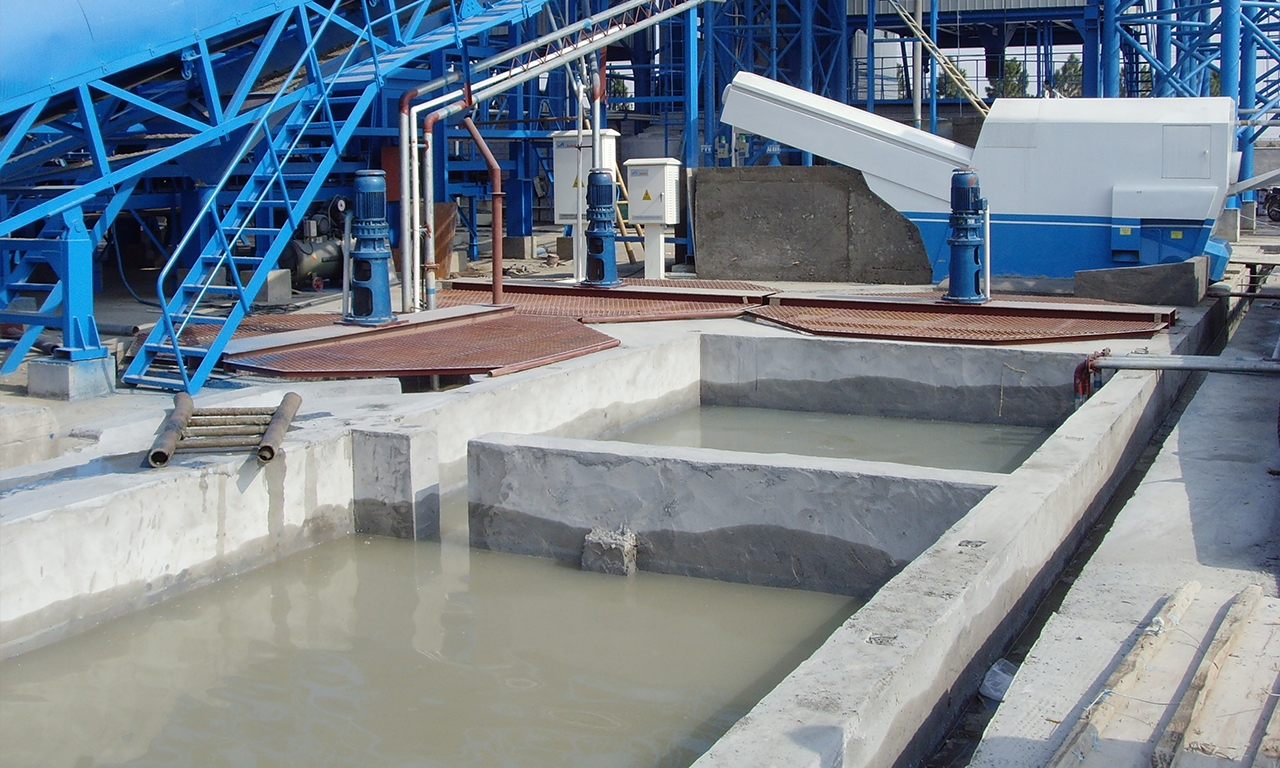

DKTEC Concrete Recycling Machine is designed to efficiently recover residual concrete from mixer trucks and batching plants. It separates aggregates from cement slurry, allowing reusable materials to be recovered while reducing concrete waste, disposal costs, and environmental impact. With a robust structure, reliable performance, and easy operation and maintenance, it provides an efficient and environmentally friendly solution for ready-mix concrete plants, construction sites, and precast concrete production.
| Item | DK-FG10 | DK-FG15 |
| Model | DK-FG10 | DK-FG15 |
| Dia. of rotary screen (mm) | 1000 | 1250 |
| Dia. of sand screw (mm) | 480 | 480 |
| Screening ability (m²/h) | ≤12 | ≤15 |
| Size of split stone (mm) | >Φ5 | >Φ5 |
| Sand size (mm) | <Φ5 | <Φ5 |
| Stone separator power (kw) | 4 | 5.5 |
| Sand separator power (kw) | 4 | 4 |
| Overall Size (L×W×H) (mm) | 6260×1970×2480 | 6900×2160×2730 |
| Total weight (t) | ≥5 | ≥6 |
| Qty. of mixer trucks | <30 | <45 |
| Qty. of washing parking | 1–2 | 1–2 |
| Electric control system | PLC Auto control | PLC Auto control |
Concrete recycling systems are specialized equipment used in concrete plants or construction sites to recover unused or leftover concrete. These systems separate the aggregates (gravel, sand) and cement particles within the concrete, making them reusable. This process reduces waste, lowers costs, and supports environmental sustainability.
Concrete recycling systems are widely used in ready-mix concrete plants, large-scale construction projects, and precast concrete production. Recycling waste concrete provides both economic and environmental benefits, contributing to a sustainable production approach in the construction industry.
