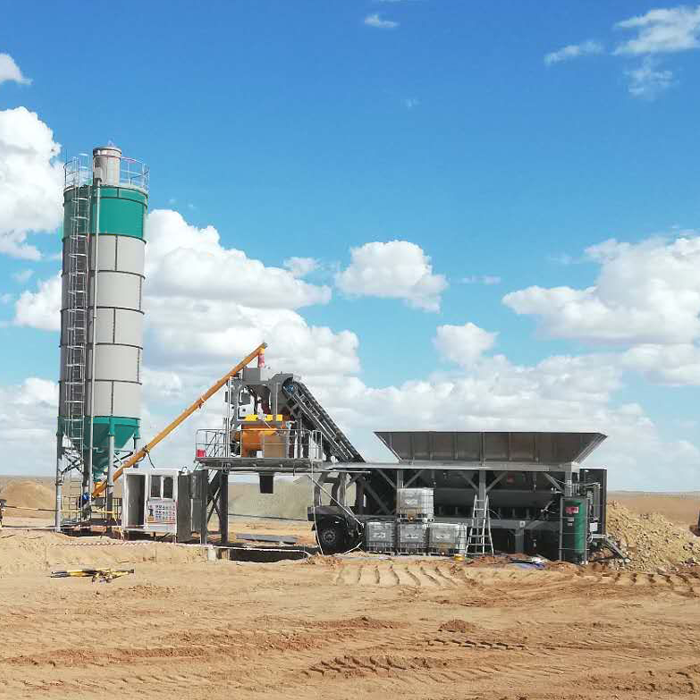

HZS60Y
Mobile Concrete Batching Plant

The DKTEC HZS60Y Mobile Concrete Batching Plant is a compact and high-efficiency concrete production solution designed to deliver 60 m³/h of reliable output for small and medium-sized construction projects. Featuring a fully integrated mobile structure, a 1.0 m³ Twin Shaft Mixer, precision weighing systems, and the DKTEC Intelligent Control System, it enables fast installation, easy relocation, accurate batching, and consistent concrete quality. Its flexible design makes it an ideal choice for road construction, municipal engineering, bridge projects, rural infrastructure, and remote job sites where mobility, efficiency, and dependable performance are essential.

Quick Quote

Briefly HZS60Y

The HZS60Y Mobile Concrete Batching Plant is designed for projects requiring mobility, quick installation, and efficient concrete production. The plant integrates the mixing system, aggregate batching system, weighing systems, control room, and travel chassis into a compact mobile structure, allowing easy transportation and rapid deployment. Equipped with a 1.0 m³ twin-shaft mixer, the HZS60Y ensures consistent concrete quality while maintaining low energy consumption and easy maintenance. Its mobile chassis design enables convenient relocation between different job sites, making it an ideal solution for temporary projects, infrastructure construction, and areas with limited site conditions.

HZS60Y Technical Specifications

Plant Capacity
Compacted Concrete Capacity
60 m³/hour (Mixing Time : 30 / 20 seconds)
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
Twin-Shaft Mixer
2x18.5 kW
1.0 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
4x 10 m³ / Square Type
Aggregate Feeding Ramp or Pre-feeding System
Weighing Units
Cement Weighing Hopper
Water Weighing Hopper
Admixture Weighing Hopper
500 kg
200 kg
25 kg

DKTEC Mobile Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS60Y Mobile Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS60Y Mobile Concrete Batching Plant Highlights

HZS60Y : UNMATCHED POWER FOR EXCEPTIONAL PERFORMANCE

The HZS60Y is equipped with a 1.0 m³ forced twin-shaft mixer, providing excellent mixing efficiency and stable concrete quality.

The advanced mixing technology ensures uniform concrete consistency and reliable performance during continuous operation.

Advantages:

1.0 m³ high-efficiency twin-shaft mixer
Excellent mixing uniformity
Stable concrete quality
Low energy consumption
Easy maintenance

Mobile Design for Fast Deployment

The HZS60Y integrates the main production units on a mobile chassis, including the batching system, mixing system, control system, and supporting structure.

The complete travel system allows the plant to be transported easily and installed quickly at different project locations.

Advantages:

Easy transportation
Fast installation
Reduced site preparation requirements
Flexible relocation
Suitable for temporary projects

Efficient Aggregate Batching & Conveying System

The HZS60Y adopts an integrated aggregate batching and inclined belt conveying system to ensure smooth material feeding and stable production.

The precision weighing system guarantees accurate aggregate measurement for consistent concrete quality.

Advantages:

2×12 m³ aggregate storage capacity
Accurate aggregate weighing
Stable material transportation
Reduced material blockage
Improved production efficiency

HZS60Y Mobile Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
