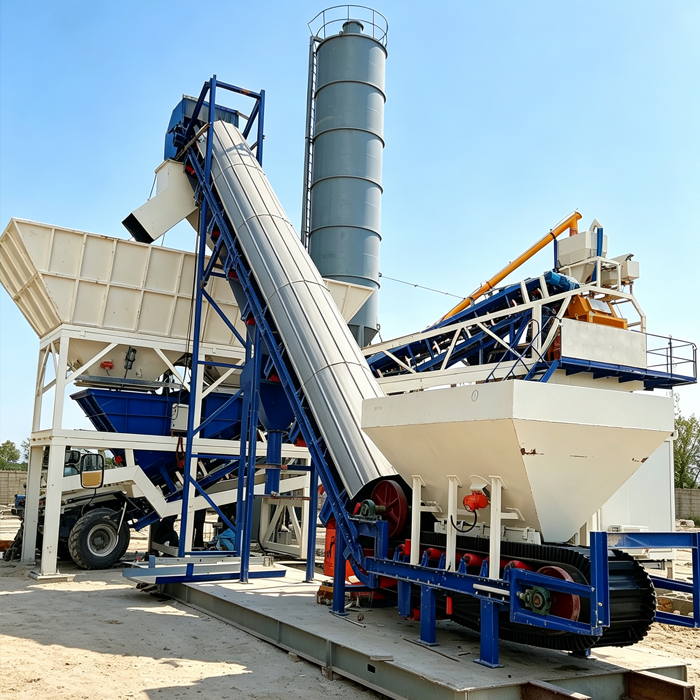

HZS35Y
Mobile Concrete Batching Plant

The DKTEC HZS35Y Mobile Concrete Batching Plant is a compact and cost-effective concrete production solution designed to deliver 35 m³/h of reliable output for small to medium-sized construction projects. Featuring a fully integrated mobile chassis, a 0.75 m³ Twin Shaft Mixer, and the DKTEC Intelligent Automation System, it enables fast installation, easy transportation, precise batching, and stable concrete quality. Its flexible and mobile design makes it an ideal choice for rural construction, housing developments, municipal engineering, road maintenance, and remote job sites where rapid deployment and efficient operation are essential.

Quick Quote

Briefly HZS35Y

The HZS35Y Mobile Concrete Batching Plant combines compact dimensions with dependable performance, making it an ideal choice for small and medium-sized construction projects. Featuring a 0.75 m³ Twin Shaft Concrete Mixer, it delivers up to 35 m³/h of high-quality concrete while maintaining low energy consumption and reduced maintenance requirements. The plant is mounted on a heavy-duty mobile chassis for convenient transportation between construction sites. Equipped with 2×12 m³ aggregate bins, precision weighing systems, belt conveyor, mixer, and intelligent control system, the HZS35Y ensures efficient production and accurate batching throughout the project. Thanks to its modular design and Zero Foundation Installation, the HZS35Y can be installed directly on compacted ground with minimal civil work. Contractors can complete installation quickly, reduce project costs, and begin concrete production in a much shorter time.

HZS35Y Technical Specifications

Plant Capacity
Compacted Concrete Capacity
35 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
Twin-Shaft Mixer
2x18.5 kW
0.75 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
2x 12 m³
Belt Conveyor
Weighing Units
Weighing System
Precision Electronic Weighing System

DKTEC Mobile Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

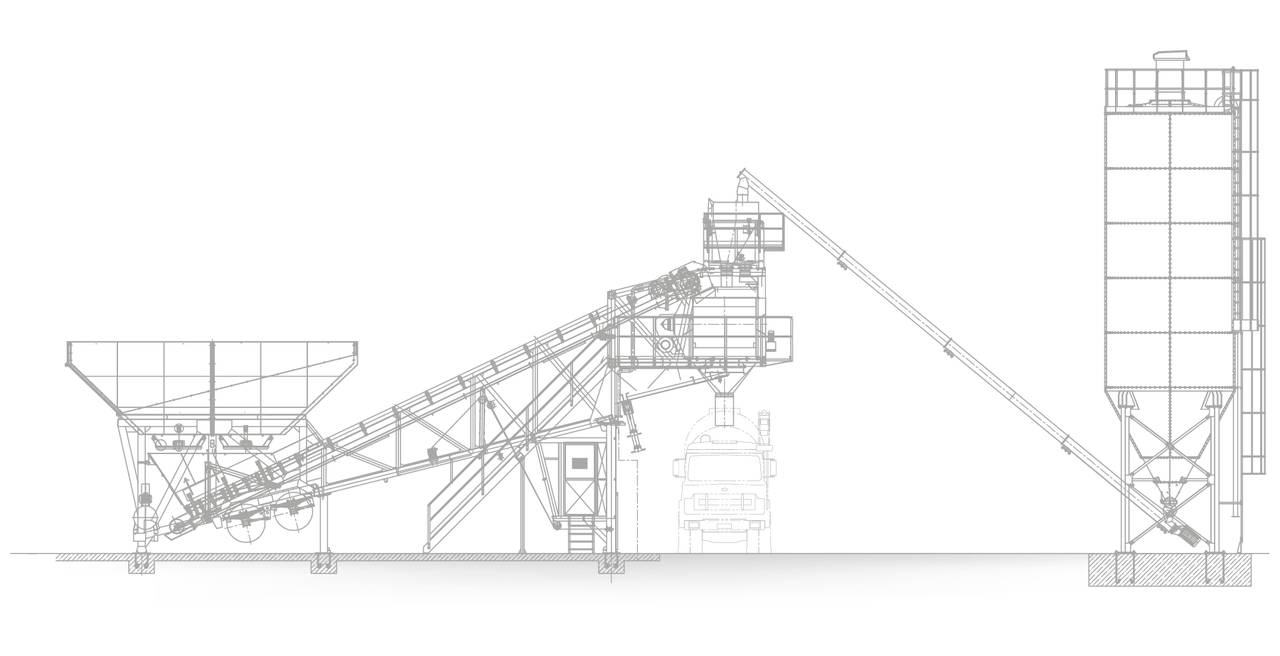

HZS35Y Mobile Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS35Y Mobile Concrete Batching Plant Highlights

HZS35Y : COMPACT TWIN SHAFT MIXING PERFORMANCE

The HZS35Y features a 0.75 m³ Twin Shaft Concrete Mixer, providing fast and homogeneous mixing for a wide range of concrete applications. Designed for durability and efficiency, the mixer delivers consistent concrete quality while reducing wear, maintenance, and operating costs.

INTELLIGENT DKTEC CONTROL SYSTEM

The DKTEC Automation System simplifies daily operation with an intuitive user interface, automatic batching control, recipe management, production reporting, and real-time monitoring. The system helps improve productivity while ensuring accurate and reliable concrete production.

FAST MOBILITY & ZERO FOUNDATION INSTALLATION

Designed for contractors who frequently move between job sites, the HZS35Y is built on a robust mobile chassis that allows quick transportation using a standard truck tractor. The innovative steel support structure enables installation directly on level ground without requiring a concrete foundation, significantly reducing installation time and project costs.

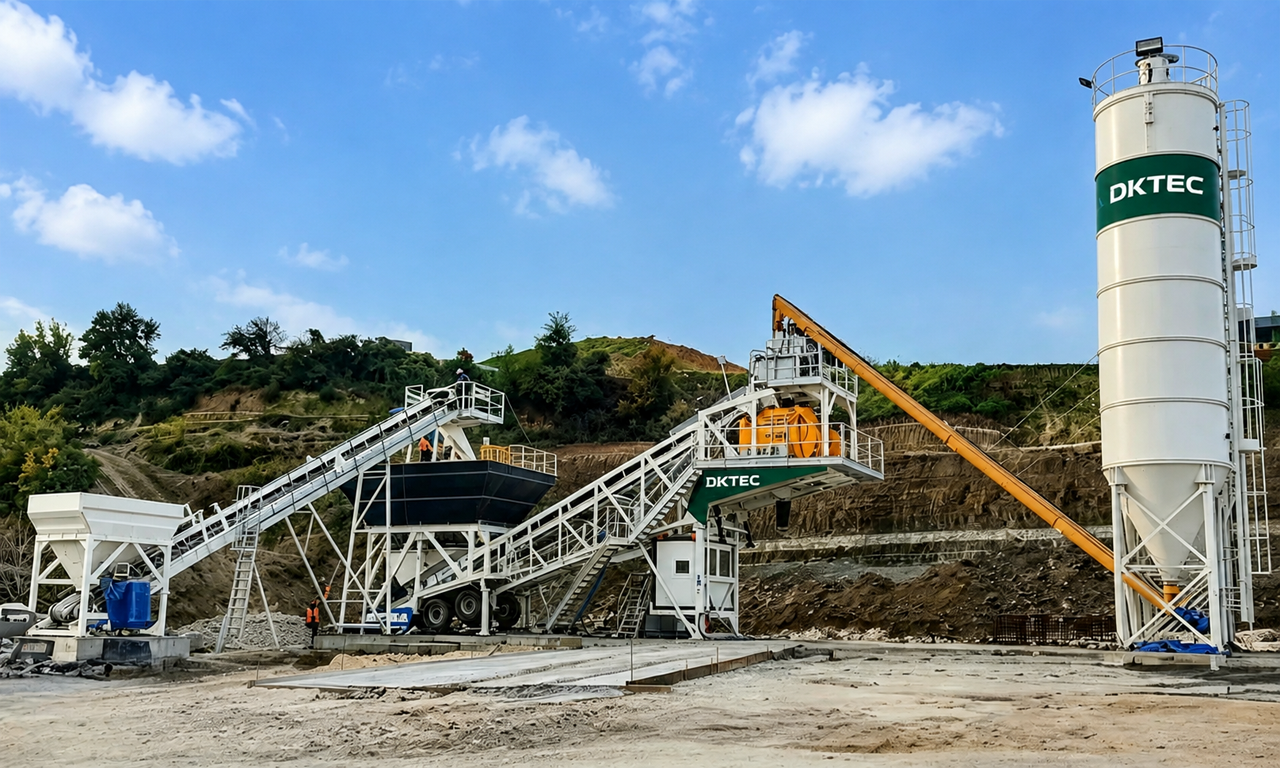

HZS35Y Mobile Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
