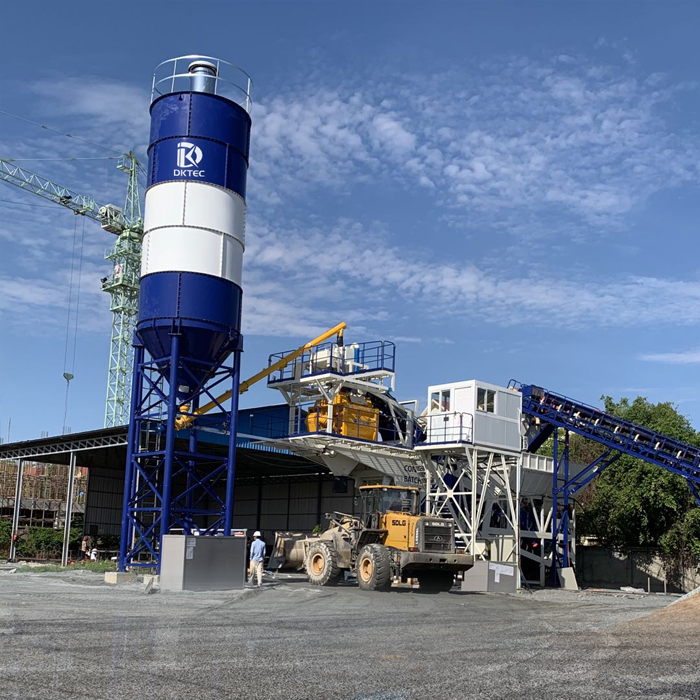

HZS25Y
Mobile Concrete Batching Plant

The DKTEC HZS25Y Mobile Concrete Batching Plant is a compact and highly mobile concrete production solution designed to deliver 25 m³/h of reliable output for small construction projects. Featuring an integrated mobile chassis, a 0.5 m³ Twin Shaft Mixer, and the DKTEC Intelligent Control System, it offers fast installation, easy transportation, precise batching, and consistent concrete quality—making it the ideal choice for residential construction, municipal works, rural infrastructure, road maintenance, and temporary job sites.

Quick Quote

Briefly HZS25Y

The HZS25Y Mobile Concrete Batching Plant is specially designed for contractors looking for a compact, economical, and highly mobile concrete production solution. Featuring a 0.5 m³ Twin Shaft Concrete Mixer, it delivers up to 25 m³/h of high-quality concrete with excellent mixing performance, low energy consumption, and minimal maintenance requirements. Its 2×8 m³ aggregate bins, precision electronic weighing system, belt conveyor, mixer, and automatic control system are all integrated onto a heavy-duty mobile chassis, allowing the entire plant to be transported easily using a standard truck tractor. This modular design significantly reduces relocation time between different construction sites. Thanks to DKTEC's Zero Foundation Installation Technology, the HZS25Y requires little civil engineering work and can be installed directly on compacted ground. The result is faster commissioning, lower installation costs, and greater flexibility for projects requiring frequent relocation.

HZS25Y Technical Specifications

Plant Capacity
Compacted Concrete Capacity
25 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
Twin-Shaft Mixer
2x15 kW
0.5 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
2x 8 m³
Belt Conveyor
Weighing Units
Weighing System
Precision Electronic Weighing System

DKTEC Mobile Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS25Y Mobile Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS25Y Mobile Concrete Batching Plant Highlights

HZS25Y : COMPACT & EFFICIENT MIXING PERFORMANCE

The HZS25Y is equipped with a 0.5 m³ Twin Shaft Concrete Mixer, delivering excellent mixing homogeneity and consistent concrete quality. Its optimized mixing structure shortens cycle time while reducing wear and maintenance costs, making it ideal for continuous production on small and medium-sized construction projects.

INTELLIGENT DKTEC AUTOMATION

The DKTEC Automatic Control System simplifies plant operation through an intuitive user interface. With automatic batching, recipe management, production statistics, fault diagnosis, and real-time monitoring, operators can achieve higher productivity with greater batching accuracy.

FAST MOBILITY & ZERO FOUNDATION INSTALLATION

Designed for rapid deployment, the HZS25Y features a fully integrated mobile chassis and modular steel support structure. Installation can be completed directly on compacted ground without constructing a concrete foundation, greatly reducing civil work, installation time, and overall project costs.

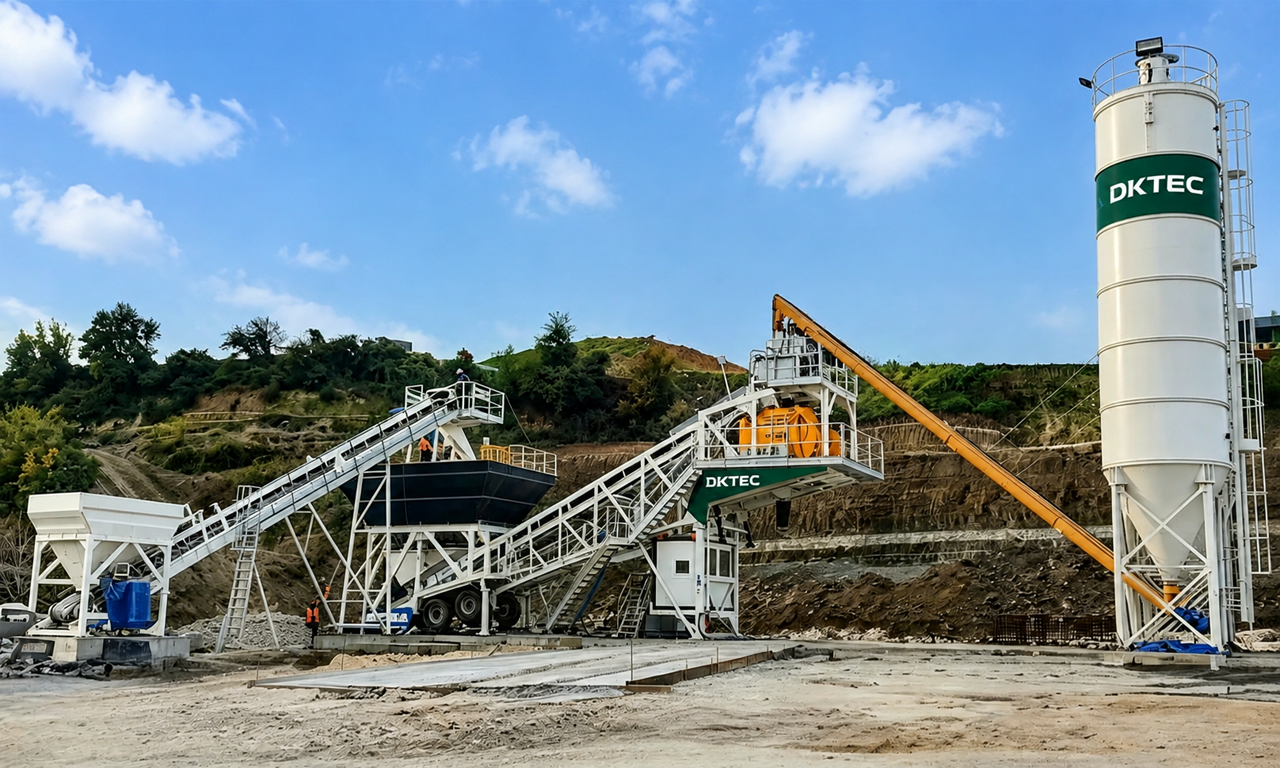

HZS25Y Mobile Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
