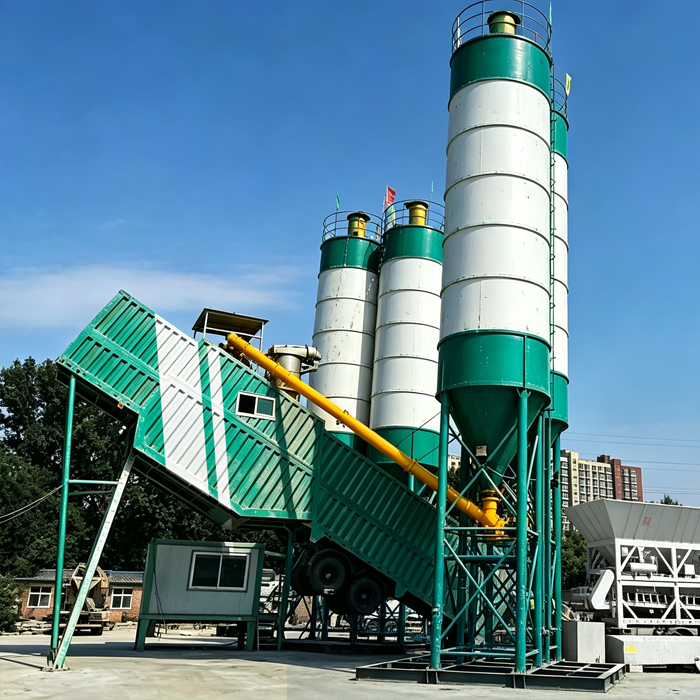

HZS120Y
Mobile Concrete Batching Plant

The DKTEC HZS120Y Mobile Concrete Batching Plant is designed to deliver 120 m³/h of reliable concrete production while offering outstanding mobility for projects that require frequent relocation. Combining a compact footprint with robust performance, it is an ideal solution for road construction, bridge projects, municipal engineering, mining, and remote job sites. Its compact design ensures it fits in tight locations, while the plant's easy and fast installation process minimizes downtime, allowing for quick commissioning. The HZS120Y offers a combination of high productivity and flexibility, making it the perfect choice for contractors who need efficient, mobile concrete production without compromising on performance.

Quick Quote

Briefly HZS120Y

The HZS120Y Mobile Concrete Batching Plant is an ideal solution for construction projects that require frequent relocation or are short-term in nature. With its 2.0 m³ capacity twin-shaft mixer, the plant ensures uninterrupted production while providing excellent performance, low operating, and maintenance costs. Designed with practicality in mind, all units of the HZS120Y Mobile Concrete Batching Plant are mounted on a mobile chassis with axles and wheels, making it easy to transport with a single standard truck tractor. Its 3×15 m³ aggregate bunker ensures efficient material storage, and it can be fed via an aggregate loading ramp or Aggregate Pre-Feeding Systems for added flexibility. The HZS120Y is designed to be installed quickly and requires minimal space, making it an efficient solution for projects with limited site preparation. It can be installed on zero ground, saving both time and costs, while offering significant advantages in flexibility and operational efficiency.

HZS120Y Technical Specifications

Plant Capacity
Compacted Concrete Capacity
120 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
Twin-Shaft Mixer
2x37 kW
2.0 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
3x 15 m³
Aggregate Feeding Ramp or Pre-feeding System
Weighing Units
Weighing System
Precision Electronic Weighing System

DKTEC Mobile Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS120Y Mobile Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS120Y Mobile Concrete Batching Plant Highlights

HZS120Y : UNMATCHED POWER FOR EXCEPTIONAL PERFORMANCE

Achieving maximum homogeneity and workability in the shortest time is essential for boosting your profits. The 2.0 m³ SICOMA/BHS Twin Shaft Concrete Mixer at the core of the HZS120Y delivers the power and reliability you can depend on, ensuring consistent, high-quality concrete production every time.

SEAMLESS OPERATION WITH DKTECSOFT AUTOMATION

DKTECSOFT's updated automation software, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

EASY SETUP ON ZERO GROUND LEVEL

Thanks to the newly developed steel leg system, the HZS120Y can be installed directly on zero ground without the need for a special concrete foundation. This innovative design offers a significant cost advantage, reducing installation expenses.

HZS120Y Mobile Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
