HZS90G
Engineering Concrete Batching Plant

The DKTEC HZS90G Concrete Batching Plant is a high-efficiency concrete production solution designed to deliver 90 m³/h of stable output for medium-scale construction projects. Equipped with a 1.5 m³ SICOMA Twin Shaft Mixer, precision weighing system, steel silo aggregate batching system, and DKTEC Intelligent Control System, it provides accurate batching, consistent concrete quality, and reliable performance for highways, bridges, commercial buildings, and infrastructure projects.

Quick Quote

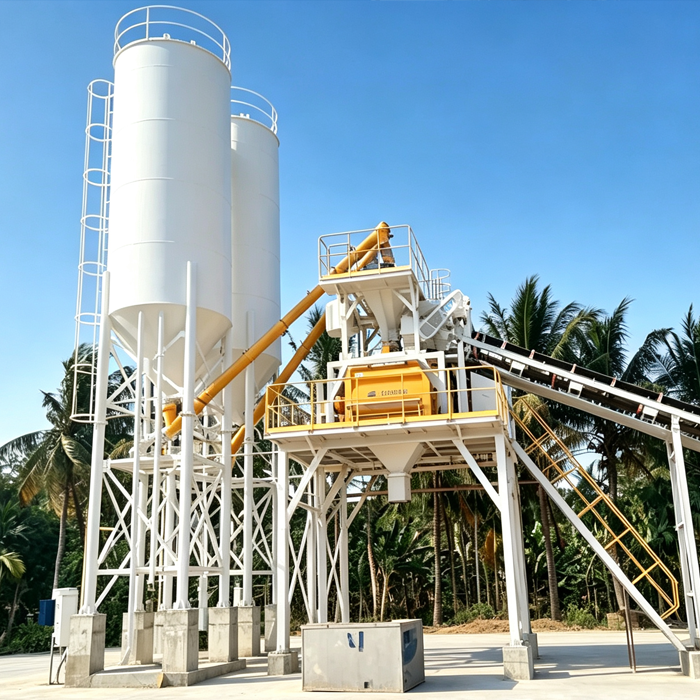

HZS90G Engineering Concrete Batching Plant

Briefly HZS90G

The DKTEC HZS90G Concrete Batching Plant is designed for customers who require a balance between production capacity, investment efficiency, and operational reliability. With a theoretical productivity of 90 m³/h, it provides stable concrete production for medium and large construction projects. The advanced steel silo aggregate batching system includes four independent 10 m³ storage silos, a 3.5 m³ cumulative weighing hopper, and high-precision weighing components to ensure continuous material supply and accurate batching. The optimized belt conveyor system improves material transportation efficiency and reduces production interruptions. Featuring a 1.5 m³ SICOMA Twin Shaft Mixer, intelligent control technology, dust collection system, and durable steel structure, the HZS90G delivers consistent performance, easy maintenance, and excellent cost efficiency for modern concrete production requirements.

HZS90G Technical Specifications

Plant Capacity
Compacted Concrete Capacity
90 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x30 kW
1.5 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
4x 10 m³ / Steel Silo Type
Horizontal + Inclined Belt Conveyors
Weighing Units
Aggregate Weighing
Other Materials
3.5 m³ Cumulative metering / Independent metering
High-Precision Weighing System

DKTEC Engineering Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS90G Engineering Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS90G Engineering Concrete Batching Plant Highlights

HZS90G : SICOMA TWIN SHAFT MIXER FOR CONSISTENT CONCRETE QUALITY

The HZS90G is equipped with a 1.5 m³ SICOMA Twin Shaft Concrete Mixer, featuring powerful dual motors, reliable reducers, hydraulic discharge system, and automatic lubrication.

The advanced mixing technology provides:

High mixing homogeneity
Short mixing cycles
Stable concrete quality
Reduced maintenance requirements
Long service life

The SICOMA mixer ensures dependable performance for continuous concrete production.

OPTIMIZED STEEL SILO AGGREGATE BATCHING SYSTEM

The HZS90G adopts an efficient steel silo batching system with four independent 10 m³ aggregate storage silos.

Advantages include:

Continuous aggregate supply
Accurate material measurement
Reduced loading frequency
Improved production efficiency
Compact structural layout

The integrated weighing hopper and conveyor system ensure smooth and reliable aggregate feeding.

INTELLIGENT DKTEC AUTOMATION SYSTEM

The DKTEC Intelligent Control System provides complete automation management for the batching process.

Main functions include:

Automatic weighing and batching
Production recipe management
Real-time monitoring
Data recording and reporting
Fault alarm system
Operation management

The intelligent system improves production accuracy and reduces operator workload.

HZS90G Engineering Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
