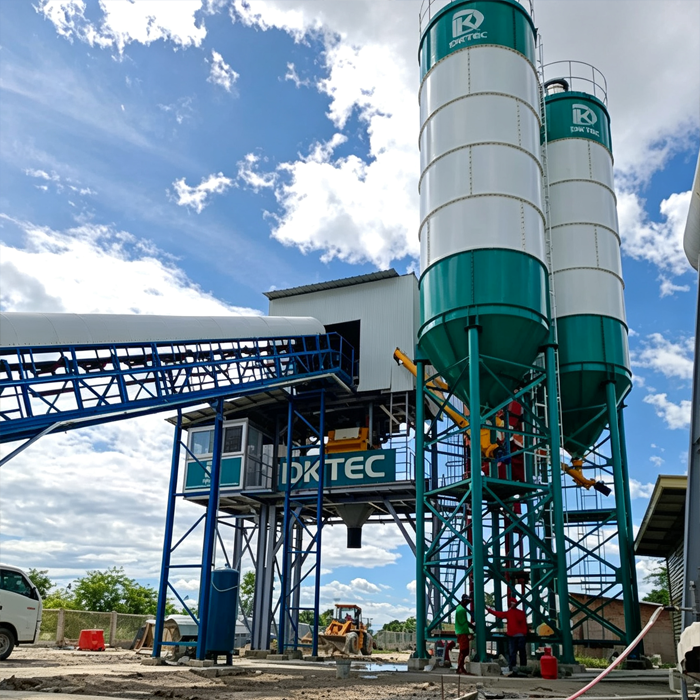

HZS180G
Engineering Concrete Batching Plant

The DKTEC HZS180G Concrete Batching Plant is a high-performance concrete production solution designed to deliver 180 m³/h of continuous and reliable output for large-scale infrastructure projects. Equipped with a 3.0 m³ SICOMA Twin Shaft Mixer, high-capacity aggregate storage system, precision weighing technology, and DKTEC Intelligent Control System, it ensures excellent concrete quality, maximum productivity, and stable operation. The HZS180G is ideal for highways, bridges, airports, dams, tunnels, precast concrete production, and large commercial construction projects.

Quick Quote

HZS180G Engineering Concrete Batching Plant

Briefly HZS1180G

The DKTEC HZS180G Concrete Batching Plant is engineered for customers who require high-volume concrete production with exceptional efficiency and stability. With a theoretical productivity of 180 m³/h, the plant provides continuous concrete supply for large infrastructure and commercial construction projects. The advanced steel silo aggregate batching system features four independent 18 m³ storage silos, a large-capacity weighing hopper, and an efficient conveyor system to ensure smooth material handling and accurate aggregate measurement. Combined with a 3.0 m³ SICOMA Twin Shaft Mixer, the HZS180G achieves excellent mixing performance and consistent concrete quality. Designed with industrial-grade components and a modular structure, the HZS180G reduces maintenance requirements and improves production efficiency. The integrated control system, dust collection system, and optional cement silo solutions provide a complete concrete production solution for modern construction enterprises.

HZS180G Technical Specifications

Plant Capacity
Compacted Concrete Capacity
180 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x55 kW
3.0 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
4x 18 m³ / Steel Silo Type
Horizontal + Inclined Belt Conveyors
Weighing Units
Aggregate Weighing
Other Materials
5m³ Cumulative metering / Independent metering
Precision Weighing System

DKTEC Engineering Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS180G Engineering Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS180G Engineering Concrete Batching Plant Highlights

HZS180G : POWERFUL SICOMA TWIN SHAFT MIXING TECHNOLOGY

The HZS180G is equipped with a 3.0 m³ SICOMA Twin Shaft Concrete Mixer, featuring high-performance motors, reliable reducers, hydraulic discharge system, and automatic lubrication.

The advanced mixing technology ensures:

Excellent concrete homogeneity
Short mixing cycles
High production efficiency
Stable operation under heavy-duty conditions
Long service life and reduced maintenance costs

The SICOMA mixer provides the reliability required for continuous large-scale concrete production.

HIGH-EFFICIENCY STEEL SILO AGGREGATE BATCHING SYSTEM

The HZS180G adopts an advanced steel silo batching system with four independent 18 m³ aggregate storage silos.

The optimized design provides:

Large aggregate storage capacity
Accurate material measurement
Stable material supply
Reduced loading frequency
Improved production efficiency

The integrated conveyor system ensures smooth transportation of aggregates from storage to the mixing unit.

INTELLIGENT DKTEC AUTOMATION SYSTEM

The DKTEC Intelligent Control System provides complete automation management for the entire batching plant.

Key functions include:

Automatic batching control
Recipe management
Production data recording
Real-time monitoring
Fault diagnosis
Alarm management
Production statistics

The intelligent system improves operational efficiency, reduces manual errors, and helps operators manage large-scale concrete production easily.

HEAVY-DUTY STRUCTURE FOR LARGE PROJECTS

Designed for continuous industrial operation, the HZS180G features a reinforced steel structure, professional maintenance platforms, safety protection systems, and wear-resistant discharge components.

The robust design ensures reliable operation in demanding environments such as:

Highway construction
Railway projects
Airport construction
Dam projects
Mining infrastructure
Large commercial developments

HZS180G Engineering Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
