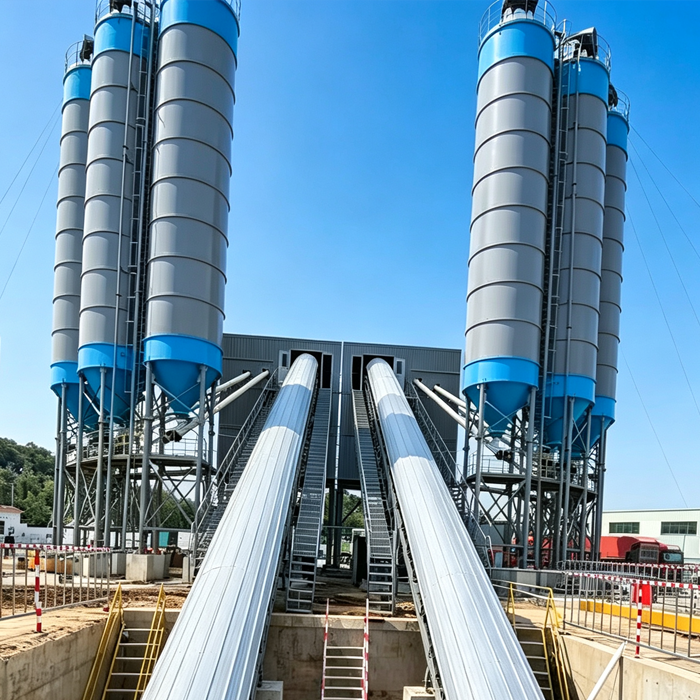

HZS270
Commercial Concrete Batching Plant

The DKTEC HZS270 Commercial Concrete Batching Plant is a high-capacity concrete production solution designed for large-scale commercial concrete suppliers and major infrastructure projects. With a 270 m³/h production capacity, it combines modular structural design, advanced automation technology, a 4.5 m³ SICOMA Twin Shaft Mixer, precision weighing systems, and optimized conveying solutions to ensure efficient production, accurate batching, and consistent concrete quality. The HZS270 is ideal for highways, bridges, tunnels, airports, urban infrastructure, and other large construction projects requiring continuous and reliable concrete supply.

Quick Quote

Briefly HZS270

The HZS270 Commercial Concrete Batching Plant is designed for customers requiring high productivity, precise batching, and intelligent concrete production management.

The plant adopts a modular structure with factory-prefabricated components, significantly reducing on-site installation workload and improving installation efficiency. Featuring an underground aggregate batching system, high-efficiency belt conveying system, and intelligent automation control, the HZS270 achieves stable material flow, accurate measurement, and continuous concrete production. With more than 10 advanced intelligent technologies integrated into the system, the plant reduces manual intervention, lowers operator requirements, and improves overall production efficiency.

HZS270 Technical Specifications

Plant Capacity
Compacted Concrete Capacity
270 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x75 kW
4.5 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Storage
Aggregate Feeding
Underground Aggregate Batching System
Horizontal + Inclined Belt Conveyors
Weighing Units
Weighing System
Precision Weighing and Batching System

DKTEC Commercial Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS270 Commercial Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS270 Commercial Concrete Batching Plant Highlights

HZS270 : High-Efficiency Mixing Performance with SICOMA Twin Shaft Mixer

The HZS270 is equipped with a 4.5 m³ SICOMA Twin Shaft Mixer, providing powerful mixing performance and excellent concrete homogeneity.

The advanced mixing system ensures fast and uniform mixing, delivering consistent concrete quality even under continuous heavy-duty operation.

Advantages:

4.5 m³ high-performance twin shaft mixer
Excellent mixing uniformity
Stable operation under demanding conditions
Reduced mixing cycle time
Long service life and low maintenance

Intelligent Automation System for Smart Production Management

The upgraded DKTEC Automation System provides intelligent control and real-time production management.

The system integrates batching control, production data management, monitoring, and intelligent scheduling functions to improve operational efficiency.

Advantages:

User-friendly operation interface
Automatic production process control
Accurate weighing and batching
Production data recording and analysis
Reduced labor requirements

Modular Design for Faster Installation

The HZS270 adopts a modular structural design with major components pre-assembled in the factory.

This standardized design simplifies transportation, installation, and commissioning while reducing construction workload.

Advantages:

Factory prefabricated modules

Installation workload reduced by 20%

Faster project commissioning

Reduced foundation and construction costs

Easier maintenance and upgrading

Seamless Material Flow Technology

The optimized aggregate conveying system ensures smooth and continuous material transportation.

The intelligent system automatically adjusts production conditions, material usage, and discharge sequence to prevent material accumulation and improve efficiency.

Advantages:

Belt conveying efficiency increased by 20%

Reduced aggregate blockage

Stable continuous feeding

Improved truck loading efficiency

Advanced Dust Collection System

The HZS270 adopts a high-efficiency pulse bag dust collection system to improve environmental performance.

The sealed aggregate waiting hopper and optimized dust circulation system effectively reduce dust emissions during production.

Advantages:

Dust removal efficiency ≥99.9%
Cleaner working environment
Waterproof and oil-resistant filter bags
Improved environmental compliance

HZS270 Commercial Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
