HZS240

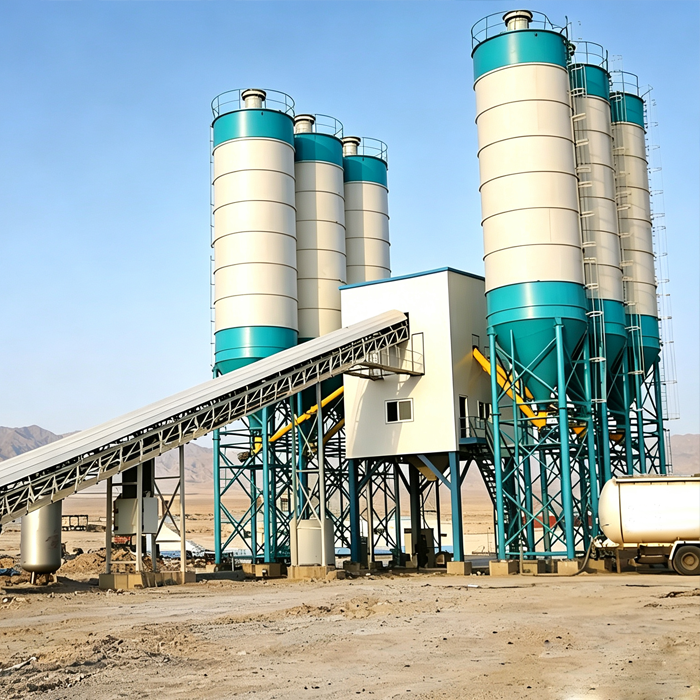

Commercial Concrete Batching Plant

The DKTEC HZS240 Commercial Concrete Batching Plant is a high-performance concrete production solution designed to deliver 240 m³/h of reliable output for large-scale infrastructure and commercial concrete projects. Featuring a modular design, high-capacity batching system, efficient conveying equipment, powerful SICOMA Twin Shaft Mixer, and DKTEC Intelligent Control System, it ensures maximum productivity, consistent concrete quality, and stable long-term operation. The HZS240 is ideal for highways, bridges, railways, airports, ports, and other major construction projects requiring continuous heavy-duty concrete production.

Quick Quote

Briefly HZS240

The HZS240 Commercial Concrete Batching Plant is developed for customers requiring high production capacity, precision batching, and reliable continuous operation. Equipped with a 4.0 m³ SICOMA twin-shaft mixer, the plant delivers excellent concrete homogeneity, short mixing cycles, and consistent output for demanding applications. Its 4 × 25 m³ aggregate batching system, dual belt conveyor arrangement, and high-accuracy weighing systems ensure efficient material handling and precise batching of aggregates, cement, water, and admixtures. The plant is also equipped with an advanced dust collection system, intelligent electrical controls, and an integrated monitoring system for safe and environmentally friendly production. Designed with a modular structure, the HZS240 enables faster installation, easier transportation, and simplified maintenance. Combined with the DKTEC automation system, it provides intelligent production management, recipe control, data recording, and real-time monitoring, making it an ideal solution for modern concrete production facilities.

HZS240 Technical Specifications

Plant Capacity
Compacted Concrete Capacity
240 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x75 kW
4.0 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
4x 25 m³
Horizontal + Inclined Belt Conveyors
Weighing Units
Weighing System
Aggregate, Cement, Water and Admixture Weighing

DKTEC Commercial Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS240 Commercial Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS240 Commercial Concrete Batching Plant Highlights

HZS240:High-Capacity 4.0 m³ SICOMA Twin-Shaft Mixer

Achieving maximum concrete quality starts with superior mixing performance. The HZS240 is equipped with a 4.0 m³ SICOMA twin-shaft mixer, powered by dual 75 kW motors, delivering fast mixing cycles, excellent homogeneity, and reliable operation under continuous heavy-duty production conditions.

Precision Weighing & Intelligent Automation

The HZS240 integrates DKTEC intelligent control software with high-precision weighing systems for aggregates, cement, powder, water, and admixtures. Automatic recipe management, production reports, fault diagnostics, and data archiving ensure accurate batching and efficient plant management.

Heavy-Duty Modular Structure

Built with a robust modular steel structure, the HZS240 is designed for quick installation, convenient transportation, and easy maintenance. High-quality international components, advanced dust collection technology, and a comprehensive monitoring system ensure stable, environmentally friendly, and reliable long-term operation.

HZS240 Commercial Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
