HZS180
Commercial Concrete Batching Plant

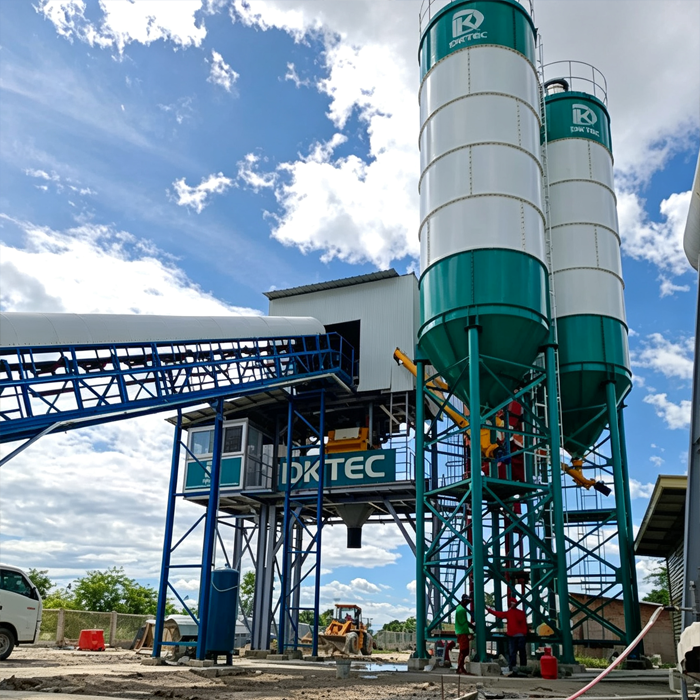

The DKTEC HZS180 Commercial Concrete Batching Plant is a high-performance concrete production solution designed to deliver 180 m³/h of continuous and reliable output for large-scale commercial concrete plants and infrastructure projects. Equipped with a 3.0 m³ SICOMA Twin Shaft Mixer, heavy-duty steel aggregate batching system, precision weighing technology, and DKTEC Intelligent Control System, it ensures high productivity, accurate batching, consistent concrete quality, and stable long-term operation. The HZS180 is ideal for highways, bridges, airports, railways, industrial construction, and precast concrete production.

Quick Quote

Briefly HZS180

The DKTEC HZS180 Commercial Concrete Batching Plant is engineered for customers who require high-output concrete production with maximum reliability and precise material control. With a theoretical production capacity of 180 m³/h, it is ideally suited for commercial ready-mix concrete plants, large infrastructure projects, and precast concrete manufacturing. The plant features a high-capacity steel aggregate batching system with four independent 20 m³ aggregate storage bins, a dual coarse and fine aggregate weighing structure, and high-precision load cells to ensure accurate batching and continuous material supply. Combined with optimized horizontal and inclined belt conveyors, the system provides smooth aggregate transportation and maximizes production efficiency. Powered by a 3.0 m³ SICOMA Twin Shaft Mixer, intelligent automation, precision weighing systems, efficient dust collection, and a heavy-duty modular steel structure, the HZS180 delivers outstanding concrete consistency, reduced operating costs, simplified maintenance, and reliable long-term operation in demanding working environments.

HZS180 Technical Specifications

Plant Capacity
Compacted Concrete Capacity
180 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x55 kW
3.0 m³ / cycle (Compacted Concrete)
Feeding System
Aggregate Bin
Aggregate Feeding
4x 20 m³ / Steel Bin Type
Horizontal and Inclined Belt Conveyors
Weighing Units
Aggregate Weighing
Other Materials
Dual Coarse and Fine Aggregate Weighing
High-Precision Weighing System

DKTEC Commercial Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS180 Commercial Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS180 Commercial Concrete Batching Plant Highlights

HZS180 : High-Performance SICOMA/BHS Twin Shaft Mixer

The HZS180 is equipped with a 3.0 m³ SICOMA Twin Shaft Concrete Mixer, delivering powerful mixing performance for continuous, high-capacity concrete production.

Benefits

Superior concrete homogeneity
Fast and efficient mixing cycles
High production efficiency
Excellent mixing consistency
Heavy-duty drive system
Hydraulic discharge system
Automatic lubrication system
Long service life with reduced maintenance

The proven SICOMA mixing technology ensures reliable operation and consistent concrete quality even under continuous heavy-duty production conditions.

HIGH-EFFICIENCY STEEL SILO BATCHING SYSTEM

The HZS180 adopts a professional steel aggregate batching system featuring four 20 m³ aggregate storage bins with independent weighing units for maximum batching accuracy.

Benefits

Large aggregate storage capacity
Dual coarse and fine aggregate weighing
High-precision load cells
Continuous material supply
Reduced loader operating frequency
Stable and accurate aggregate batching
Increased overall plant productivity

The optimized batching and conveyor system ensures smooth aggregate feeding while maintaining high production efficiency and reliable operation.

INTELLIGENT DKTECSOFT AUTOMATION SYSTEM

The DKTEC Intelligent Control System provides complete automatic management of the batching process.

Main functions include:

Automatic weighing and batching
Recipe management
Production data recording
Real-time operation monitoring
Fault alarm system
Production statistics

The intelligent control system improves efficiency, reduces operator workload, and ensures consistent concrete production.

ROBUST STRUCTURE FOR LONG-TERM OPERATION

Designed for industrial applications, the HZS180 features a heavy-duty steel structure, professional maintenance platforms, dust collection system, and safety protection devices.

The optimized design ensures:

Easy maintenance
Safe operation
Reduced downtime
Reliable performance in harsh environments

HZS180 Commercial Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
