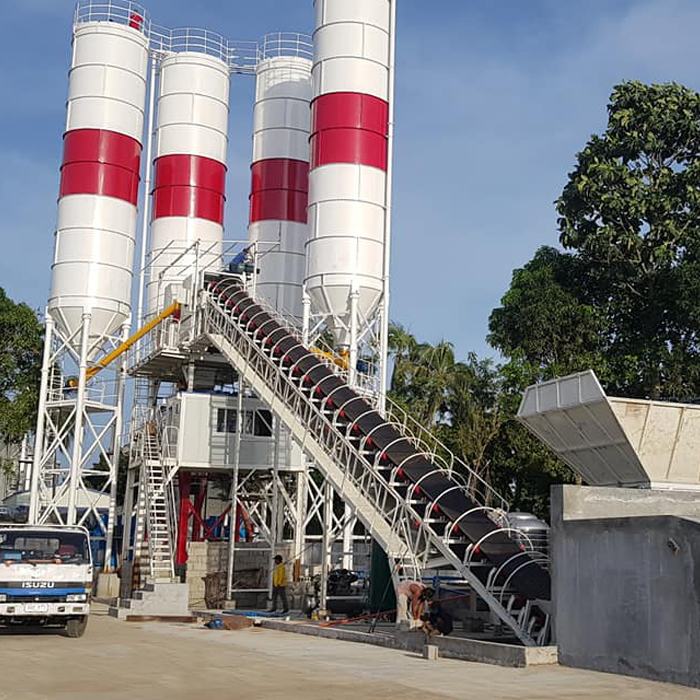

HZS120
Commercial Concrete Batching Plant

The DKTEC HZS120 Commercial Concrete Batching Plant is a high-efficiency concrete production solution designed for medium and large-scale ready-mix concrete producers. With a 120 m³/h production capacity, it combines advanced batching technology, intelligent automation, and robust structural design to deliver consistent concrete quality and reliable performance. Equipped with a SICOMA/BHS Twin Shaft Mixer, precision weighing systems, and DKTEC Intelligent Control System, the HZS120 provides an efficient, stable, and cost-effective solution for commercial concrete production, infrastructure projects, bridges, and highways.

Quick Quote

Briefly HZS120

The DKTEC HZS120 Concrete Batching Plant is engineered for customers who require efficient and stable concrete production with high productivity and precise material control. With a theoretical capacity of 120 m³/h, it is suitable for highway construction, bridge projects, commercial developments, precast concrete factories, and other demanding applications. The advanced steel silo aggregate batching system uses four independent 14 m³ storage silos, combined with a 3.5 m³ cumulative weighing hopper and high-accuracy load cells, ensuring continuous material supply and precise aggregate measurement. The optimized belt conveyor system provides smooth transportation and improves overall production efficiency. Featuring a 2.0 m³ SICOMA Twin Shaft Mixer, intelligent automation, dust collection system, and modular steel structure, the HZS120 provides a complete concrete production solution with high reliability, easy maintenance, and excellent operating efficiency.

HZS120 Technical Specifications

Plant Capacity
Compacted Concrete Capacity

120 m³/hour
Concrete Mixer
Mixer Type
Mixer Motor Power
Mixer Capacity
SICOMA Twin-Shaft Mixer
2x37 kW
2.0 m³ / cycle (Compacted Concrete)
Feeding System
Storage Silo
Aggregate Feeding
4×16 m³
Belt Conveyor
Weighing Units
Aggregate Weighing
Other Materials
4 × 2.0 m³Cumulative metering / Individual metering
High-Precision Weighing System

DKTEC Commercial Concrete Batching Plant Download Catalogue
- DKTEC concrete batching plant.pdf
  11.69 MB DOWNLOAD

HZS120 Commercial Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Silo

HZS120 Commercial Concrete Batching Plant Highlights

HZS120 : HIGH-PERFORMANCE MIXING TECHNOLOGY

Adopting the DKTEC Automation System helps realize smarter‑mode production and cut down operating costs. Equipped with a user‑friendly interface and full‑set production‑management functions for operators, this system features automatic production control, real‑time production‑data monitoring, recipe management, a production‑record and archive system, as well as less dependence on manual operations. In this way, the intelligent platform boosts production efficiency and greatly lowers mistakes caused by human factors.

MODULAR DESIGN FOR FAST INSTALLATION

The HZS120 adopts a modular structural design, with major components prefabricated in the factory to ensure high manufacturing consistency and reliable quality. This design significantly simplifies on-site installation, reduces construction workload, and enables easier transportation and assembly. Compared with traditional batching plants, the modular structure effectively shortens project preparation time, lowers installation costs, and allows customers to start concrete production faster.

MODULAR DESIGN FOR FAST INSTALLATION

The HZS120 adopts a modular structural design, with major components prefabricated in the factory to ensure consistent quality and efficient assembly. This advanced design enables faster on-site installation, reduces construction workload, and simplifies transportation and assembly. Compared with traditional batching plants, the modular structure significantly shortens project preparation time, reduces installation costs, and allows customers to put the plant into operation more quickly.

ADVANCED MATERIAL FLOW MANAGEMENT

The HZS120 is equipped with an optimized aggregate conveying system designed to improve production efficiency and ensure stable material supply. Featuring high-capacity belt conveyors, automatic material flow control, reduced material accumulation, and faster charging and discharging processes, the system enables smooth aggregate transportation and supports continuous, reliable concrete production.

HZS120 Commercial Concrete Batching Plant Gallery

Optional Features For All DKTEC Concrete Batching Plants

Every concrete batching plant project has different requirements. Whether you are a ready-mixed concrete producer, construction contractor, precast concrete manufacturer, or involved in infrastructure projects, Hangzhou Jusheng Machinery & Equipment Co., Ltd. (DKTEC) can provide customized batching plant solutions based on your production capacity, site conditions, concrete applications, and business goals. With experienced engineers, professional R&D capabilities, and extensive international project experience, we design and manufacture concrete batching plants with optimized equipment configurations and layouts to meet specific project requirements. From plant design and equipment selection to manufacturing and technical support, our team works closely with customers to improve productivity, optimize investment, and provide a reliable solution for long-term operation.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the DKTEC recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
